Gold Note Donatello Gold Owner's Manual

DONATELLO GOLD
OWNERʼS MANUAL
Thank you for your purchase of the Donatello Gold stereo cartridge.
Read these Operating Instructions carefully before using your Donatello Gold and keep it for future reference.
1. The Stylus is very delicate. Applying excessive force to the stylus, such as pressing with a finger can break it.
Handle the cartridge with the utmost care.
2. A powerful magnet is used in the cartridge. Note that carelessly bringing a steel screwdriver or other such item near the
cartridge will result in it being attracted by the magnet and may result in damage to the stylus, so care must be taken.
Package Content
• Cartridge body
• Stainless Steel no-magnetic two sets of head-shell fixing 2,5mm screws
• 2mm Allen Wrench
• Ownerʼs Manual
Method of Use
1. Mounting the cartridge on the tone arm Head-Shell
using the supplied Allen Wrench and one set of the
2,5mm screws. Adjust it to the stylus position specified
for the turntable system you are using mounting it
properly without tilting or turning it. (See Figure 1.)
• The output terminals are colours coded for
identification as illustrated in Figure 2.
Match the colors of the tone arm head-shell leads to the
terminals and connect each other properly.
NOTE:
When connecting the cartridge, be sure to use the
tipped leads and press them onto the terminals.
Applying heat to the output terminals of the cartridge,
such as in direct soldering, will cause internal damage
to the cartridge, such as wire breakage.
GOLD NOTE
il suono italiano
Before Using
x2
RED (right ch. +)
GREEN (right ch. -)
Thank you for your purchase of the Donatello Gold stereo cartridge.
Read these Operating Instructions carefully before using your Donatello Gold and keep it for future reference.
1. The Stylus is very delicate. Applying excessive force to the stylus, such as pressing with a finger can break it.
Handle the cartridge with the utmost care.
2. A powerful magnet is used in the cartridge. Note that carelessly bringing a steel screwdriver or other such item near the
cartridge will result in it being attracted by the magnet and may result in damage to the stylus, so care must be taken.
Package Content
• Cartridge body
• Stainless Steel no-magnetic two sets of head-shell fixing 2,5mm screws
• 2mm Allen Wrench
• Ownerʼs Manual
Method of Use
1. Mounting the cartridge on the tone arm Head-Shell
using the supplied Allen Wrench and one set of the
2,5mm screws. Adjust it to the stylus position specified
for the turntable system you are using mounting it
properly without tilting or turning it. (See Figure 1.)
• The output terminals are colours coded for

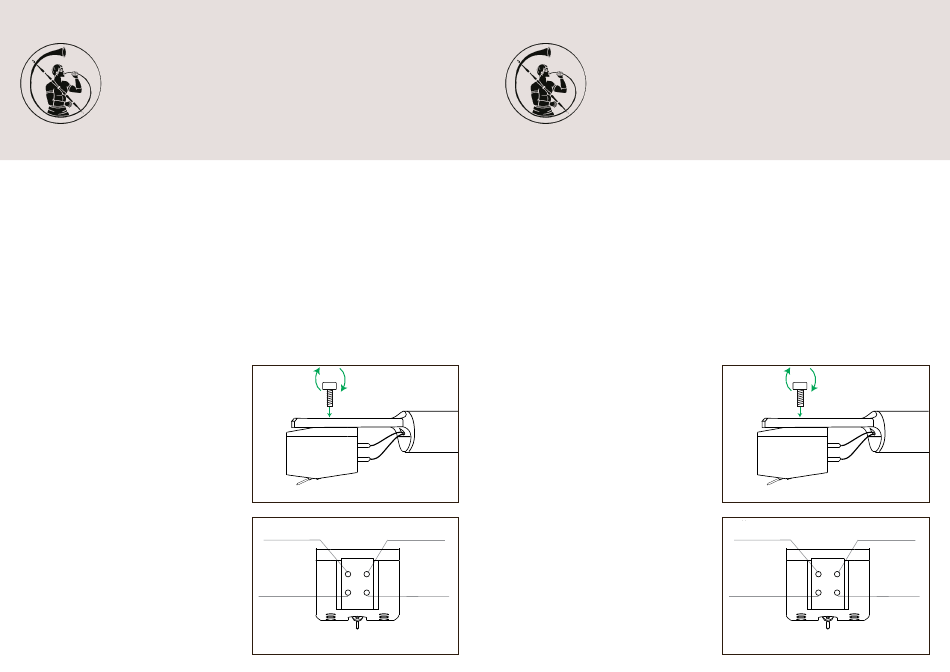

Fig. 1
identification as illustrated in Figure 2.
Match the colors of the tone arm head-shell leads to the
terminals and connect each other properly.
WHITE (Left ch. +)
NOTE:
When connecting the cartridge, be sure to use the
tipped leads and press them onto the terminals.
Applying heat to the output terminals of the cartridge,
BLUE (Left ch. -)
such as in direct soldering, will cause internal damage
to the cartridge, such as wire breakage.
Fig. 2
DONATELLO GOLD
GOLD NOTE
OWNERʼS MANUAL
Before Using
RED (right ch. +)
GREEN (right ch. -)
il suono italiano
x2
Fig. 1
WHITE (Left ch. +)
BLUE (Left ch. -)
Fig. 2
