Summary of Contents for Gold Note PSU-10

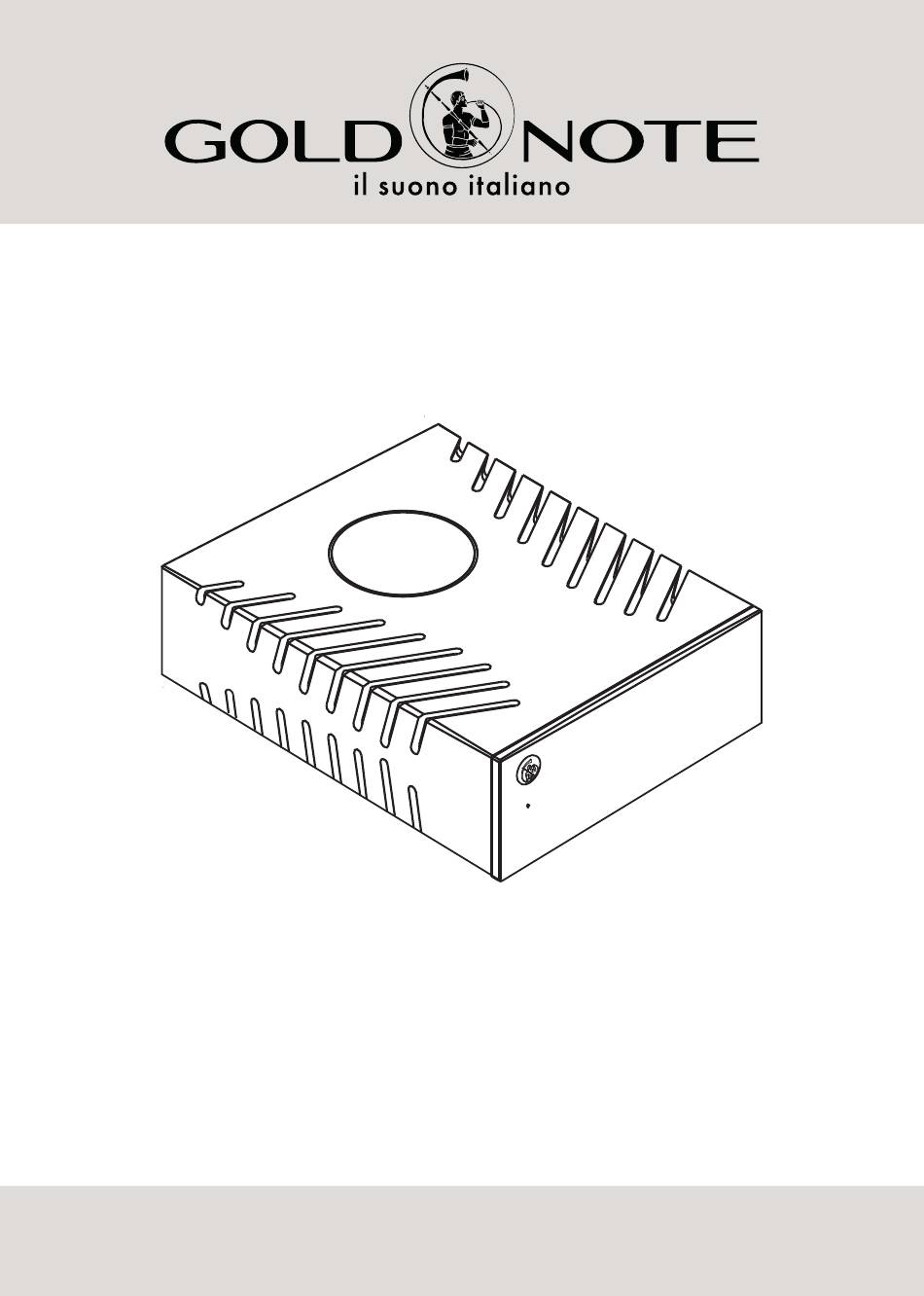

- Page 1 PSU-10 EXTERNAL POWER SUPPLY FOR PH-10 OWNERʼS MANUAL...
-
Page 3: Table Of Contents
INDEX DESCRIPTION AND SPECIFICATIONS......................P. 3 FRONT AND REAR PANEL..........................P. 4 QUICK START............................... P. 5 WARRANTY AND SERVICE........................... P. 7 TROUBLESHOOTING..........................P. 8 IMPORTANT SAFETY INFORMATION......................P. 9... -
Page 4: Description And Specifications
DESCRIPTION AND SPECIFICATIONS The PSU-10 is a super inductive & chokes power supply designed exclusively for the PH-10 phono stage. PSU-10 has been engineered with the best quality audio- MAIN FEATURES grade components to enhance the performance of PH-10 Four rail audio grade power supply... -
Page 5: Front And Rear Panel
FRONT AND REAR PANEL FRONT PANEL STATUS LED REAR PANEL PSU OUT MASTER PSU OUT AC PLUG MASTER SWITCH PLEASE NOTE The LED is always ON when the PSU-10 is in Standby (the Master Switch is ON). -
Page 6: Quick Start
2. Connect the PSU-10 to the AC power outlet using the supplied power cord 3. Connect the PSU-10 to the PH-10 using the supplied cable (from PSU OUT on PSU-10 to the PSU port on PH-10) 4. Turn on the MASTER SWITCH on the rear panel of the PSU-10 and then on PH-10... - Page 7 PSU-10 is designed to work in "slave mode" with PH-10 so you only need to turn the MASTER SWITCH ON and the PSU-10 will be controlled by PH-10. Every time PH-10 goes into STANDBY (the unit is OFF with the LED ON) the PSU-10 will do the same and you don't need to turn the MASTER SWITCH OFF.
-
Page 8: Warranty And Service
WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 9: Troubleshooting
PSU CONNECTION CABLE is not damaged and the icon that indicates the not plugged in connect it properly to the PSU OUT port on the PSU-10 and PSU-10 is connected to the PSU port on the PH-10... -
Page 10: Important Safety Information
Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 11 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2. Heed all warnings. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Page 12 NOTES...
- Page 13 NOTES...
- Page 14 NOTES...
- Page 16 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
