Gold Note PST-10 Owner's Manual

External power supply for turntable
Hide thumbs Also See for PST-10:
Table of Contents

Advertisement

Quick Links

Download this manual
PST-10
EXTERNAL POWER SUPPLY FOR TURNTABLE
OWNERʼS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PST-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold Note PST-10

Summary of Contents for Gold Note PST-10

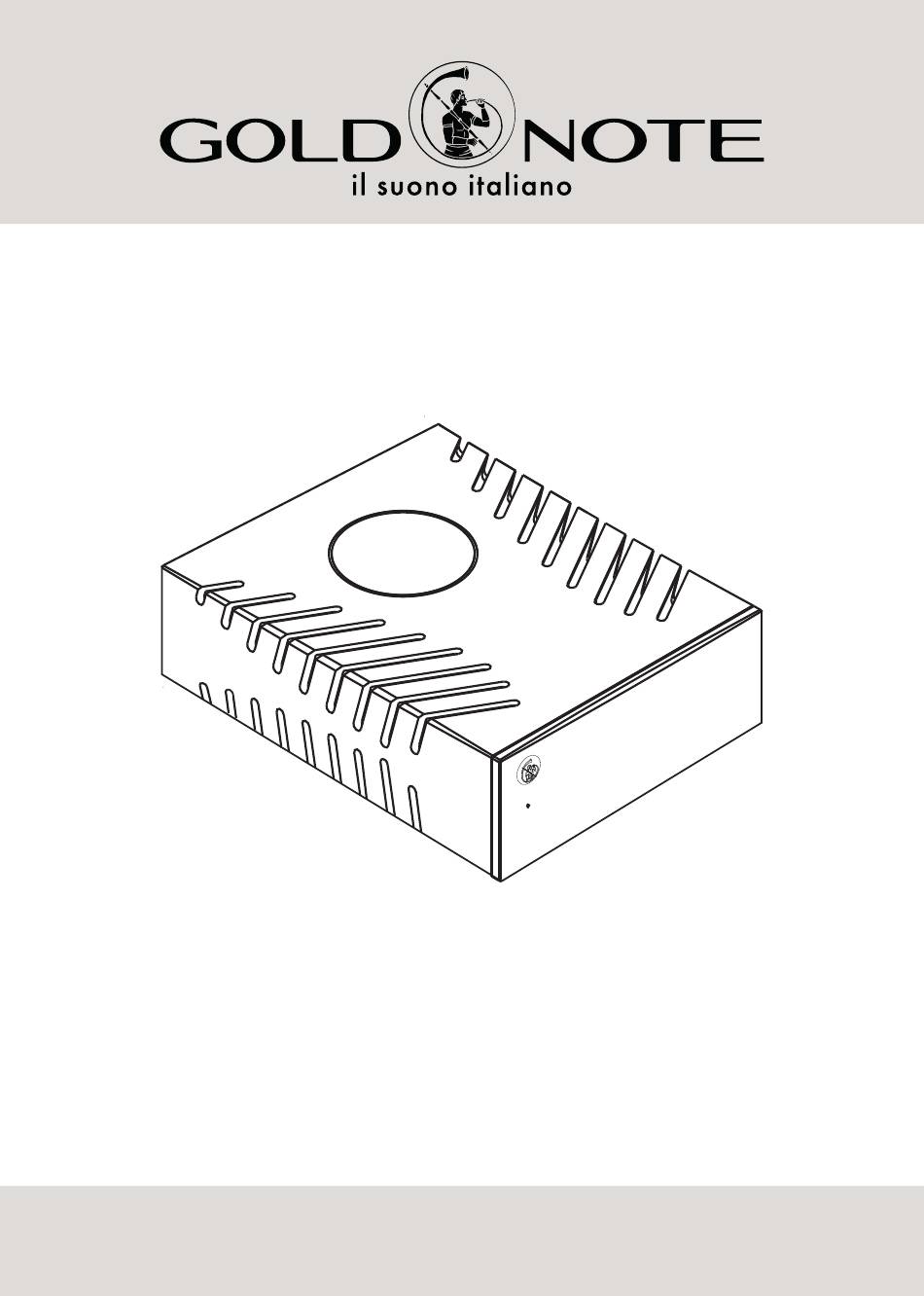

  • Page 1 PST-10 EXTERNAL POWER SUPPLY FOR TURNTABLE OWNERʼS MANUAL...

  • Page 3: Table Of Contents

    PACKAGE CONTENT............................P. 3 DESCRIPTION..............................P. 4 TECHNICAL SPECIFICATIONS..........................P. 5 FRONT AND REAR PANEL ..........................P. 5 SET-UP PST-10 ............................... P. 6 QUICK START ..............................P. 7 CONNECTING PST-10 ............................P. 8 WARRANTY AND SERVICE..........................P. 9 TROUBLESHOOTING............................P. 10...

  • Page 4: Package Content

    PACKAGE CONTENT 1 PST-10 1 AC cable 1 PST cable plug for Gold Note turntables 1 tool for voltage selection...

  • Page 5: Description

    Turntables and improve your audio system getting the very best music experience out of your LP's. PST-10 features a dual choke design powered by a double inductor driving the negative and positive high current stages and featuring an inductive filter on the analogue stage.

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS MAIN FEATURES Four audio grade Transformers Four ultra low noise voltage regulator +12V, +5V for logic 18V/26V/34V selectable, dedicated to Gold Note Turntables Inductive interference suppression filter Line noise rejection >80dB Common mode noise rejection >80dB Connecting Cable: Silver custom cable powering the turntable Full power response time <2,5µsec...

  • Page 7: Front And Rear Panel

    MADE IN ITALY service. AC IN 100 - 240 V AC INPUT MASTER SWITCH PLEASE NOTE The STATUS LED turns to On position blue light only when PST-10 is connected to supply AC and the MASTER SWITCH is ON.

  • Page 8: Set-Up Pst-10

    PST-10 must be connected only to Gold Note turntables with synchronous 12V motors. There are three different available voltages for Gold Note turntables: 18Volt DC, 26Volt DC and 34Volt DC. PST-10 must be correctly set-up first, if the turntable is powered with a wrong voltage it will be irremediably damaged.

  • Page 9: Quick Start

    VOLTAGE LED INSTALLING THE PST-10 1. Connect the PST-10 to the AC power outlet using the supplied power cord then before connecting the turntable select the correct original voltage as above described. 2. Connect the PST-10 to the Turntable using the supplied cable from PSU OUT on PST-10 to the turntable rounded plug.

  • Page 10: Connecting Pst-10

    CONNECTING PST-10 CONNECTING PST-10 TO GOLD NOTE TURNTABLES MEDITERRANEO/GIGLIO/PIANOSA PST-10 PSU OUT GOLD NOTE OUTPUT VOLTAGE SELECTOR MASTER 18V DC 26V DC 34V DC Hazardous Voltage. Risk of Electrical Shock. Disconnect power cord from electrical outlet before removing this panel or starting any MADE IN ITALY service.

  • Page 11: Warranty And Service

    WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused.

  • Page 12: Troubleshooting

    Verify the PST-10 CABLE is not damaged and connect it properly is not plugged correctly properly to the PSU OUT port on the PST-10 and to the Turntable rounded plug. The Voltage must be selected the same of the original Wall-Wart power supply to avoid damaging the turntable electronics.

  • Page 13: Important Safety Information

    Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel.
  • Page 14 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2. Heed all warnings. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
