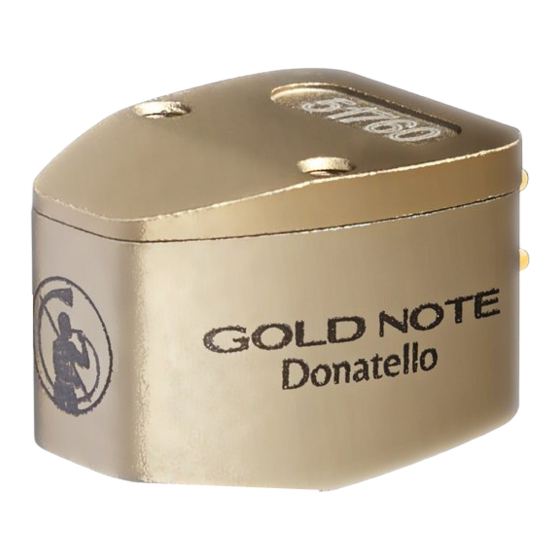

Gold Note DONATELLO User Manual

THANK YOU FOR PURCHASING THE
DONATELLO STEREO CARTRIDGE.
PACKAGE CONTENT
| Cartridge body
| Set of head-shell fixing 2,5mm screws (non-
magnetic)
| 2mm Allen Wrench
| User Manual
DONATELLO GOLD
MC Low Output
Output level Diamond
0.5mV Micro Elliptical
Frequency response Coil Wire
10 - 40000Hz Copper
Impedance Magnet
40Ω Samarium-Cobalt
Compliance Hole-diamond distance
12×10-6cm/dyne 9mm
Channel separation Total weight
>24dB 7g
Channel balance Body
<1dB Duraluminium alloy
Cantilever
Aluminium
DONATELLO RED
MC High Output
Output level Diamond
1.8mV Micro Elliptical
Frequency response Coil Wire
10 - 35000Hz Copper
Impedance Magnet
140Ω Samarium-Cobalt
Compliance Hole-diamond distance
12×10-6cm/dyne 9mm
Channel separation Total weight
>24dB 7g
Channel balance Body
<1dB Duraluminium alloy
Cantilever
Aluminium
BEFORE USING
1 The stylus is very delicate and applying excessive
force to the stylus, such as finger pressure, can
result in damages. Handle the cartridge with the
utmost care.
2 A powerful magnet is used in the cartridge.
Operating steel/magnetic tools or similar items
near the cartridge will exert a force on the
magnet and may result in damages to the stylus
and the cartridge.
DONATELLO
The idea behind the Donatello MC was to design a light
cartridge that delivers top-level audio performance, a
cartridge that every tonearm can handle with precision.
After two years of research, we developed a refined
body using computer modelling and finely machined
aluminium, with a weight of only 7 grams and the ideal
damping and stiffness qualities required to achieve
superior tracking ability.
Donatello features a high-precision Micro Elliptical
diamond exclusively developed in collaboration with
Adamant-Namiki which is mechanically inserted and
locked into the ultra-rigid cantilever made of aluminium
and supported by a special titanium telescopic pipe to
increase the overall structural rigidity.
Like our flagship cartridges, Donatello features gold-
plated pin connectors designed to guarantee a perfect
connection with tonearm cinches, preserving the audio
signal and improving grounding for an optimal music
background that lets you enjoy even the smallest of
details.
The high internal impedance levels make Donatello a
cartridge that can be easily matched with any active
MM and MC phono preamp correctly set up without the
need of Step-Up transformers.
