Summary of Contents for Gold Note PSU-1

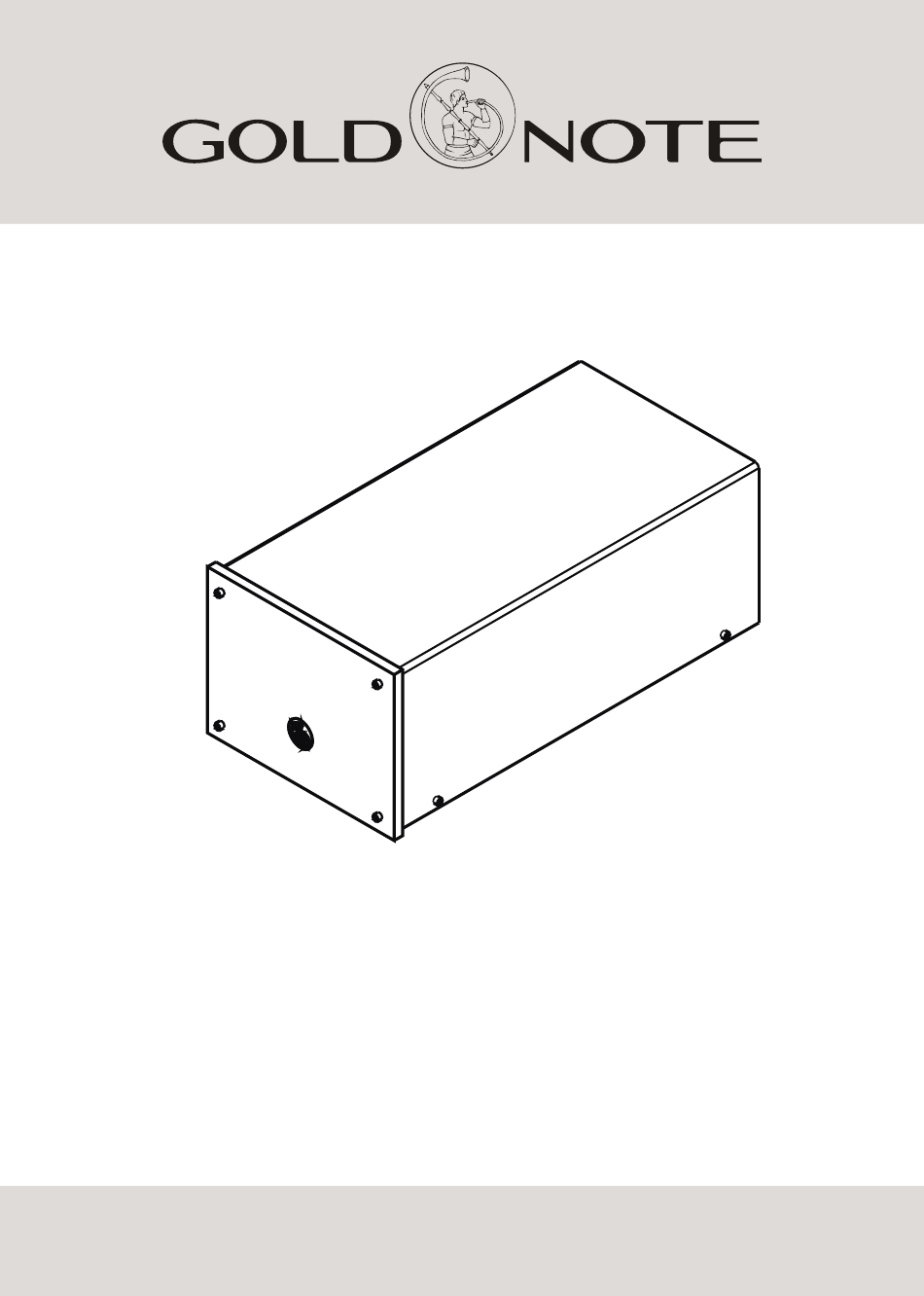

- Page 1 PSU-1 EXTERNAL POWER SUPPLY FOR PH-1 OWNERʼS MANUAL...
-
Page 3: Table Of Contents
INDEX DESCRIPTION AND SPECIFICATIONS........................ P. 3 REAR PANEL..............................P. 4 QUICK START..............................P. 5 WARRANTY AND SERVICE..........................P. 7 TROUBLESHOOTING............................P. 8 IMPORTANT SAFETY INFORMATION........................ P. 9... -
Page 4: Description And Specifications
DESCRIPTION AND SPECIFICATIONS The PSU-1 is a super inductive and chokes power supply designed exclusively for the PH-1 phono stage. PSU-1 has been engineered with the best quality audio- The Gold Note proprietary Chokes Design perfectly filters grade components to enhance the performance of PH-1... -
Page 5: Rear Panel
REAR PANEL ON/OFF MASTER SWITCH PSU-1 INPUT PLUG GND GROUND EXTERNAL POWER SUPPLY IEC PLUG & FUSE (500MA) -
Page 6: Quick Start
2. Connect the PSU-1 to the AC power outlet using the supplied power cord 3. Connect the PSU-1 to the PH-1 using the supplied umbilical cable (from PSU OUT on PSU-1 to the PSU port on PH-1) 4. Turn on the PH-1 only from the PSU-1 MASTER SWITCH... - Page 7 QUICK START PSU-1 is designed to work in "slave mode" with PH-1 so you only need to turn on the MASTER SWITCH ON on the PSU-1 to control the PH-10 once the supplied umbilical cable has been used to connect both units.
-
Page 8: Warranty And Service
WARRANTY AND SERVICE WARRANTY To validate the warranty it is necessary to register the unit on the Gold Note internet website within 15 days from the purchase on the appropriate area of the website: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 9: Troubleshooting
PSU CONNECTION CABLE ensure that the PSU UMBILICAL CABLE is not damaged and is not plugged in connect it properly to the PSU OUT plug on the PSU-1 and to the PSU plug on the PH-1 the PH-1 is noisy... -
Page 10: Important Safety Information
Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 11 IMPORTANT SAFETY INFORMATION 1 Read these instructions and store them. 9 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, 2 Heed all warnings. and the point where they exit from the apparatus. 3 Follow the instructions. 10 Only use attachments/accessories specified by the manufacturer.
- Page 12 NOTES...
- Page 13 NOTES...
- Page 14 NOTES...
- Page 16 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
