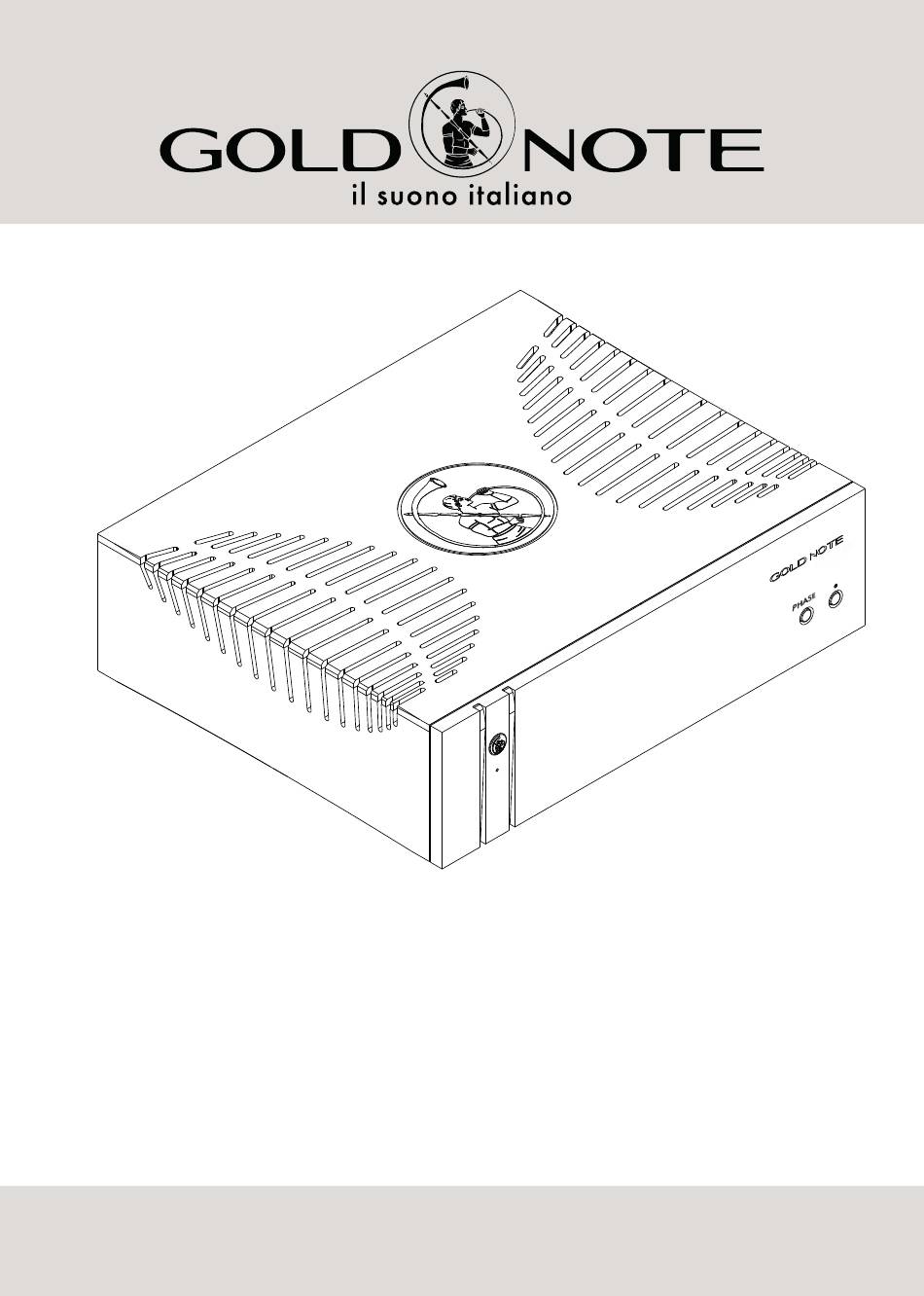

Page 1 PSU-1250 /1000 EXTERNAL POWER SUPPLY USERʼS MANUAL...
Page 3: Table Of Contents
INDEX PACKAGE CONTENT..........................P. 3 DESCRIPTION............................P. 4 TECHNICAL SPECIFICATIONS........................P. 5 FRONT AND REAR PANEL........................... P. 6 QUICK START............................P. 7 WARRANTY AND SERVICE ........................... P. 8 FAQ AND TROUBLESHOOTING ........................P. 9 IMPORTANT SAFETY INFORMATION ......................P.
Page 4: Package Content
PACKAGE CONTENT • PSU-1250/1000 • 1 AC Cable • 1 External cable PSU-1250/1000 • User’s Manual...
Page 5: Description

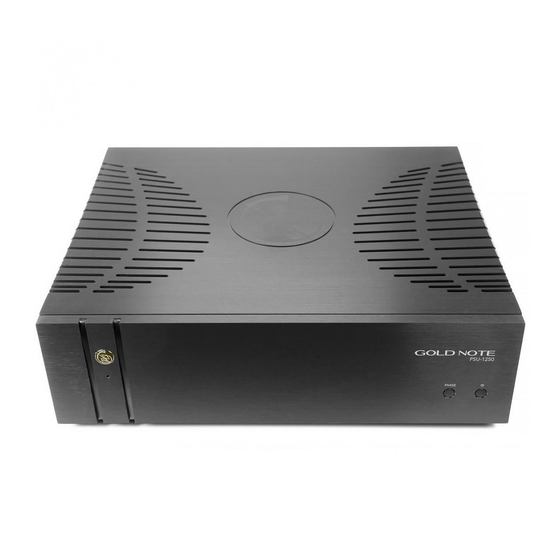

DESCRIPTION The PSU-1250 and the PSU-1000 are the super inductive external power supplies dedicated to the Gold Note 1000 Series. Engineered with the best quality audio-grade components to provide our electronics, such as the CD-1000, DS-1000, PH- 1000 and the P-1000, with a large amount of ultra-clean power. For the PSU-1250 (1250W) and the PSU-1000 (1000W), we engineered a sophisticated design powered by a double inductor driving the negative and positive high-current stages, and with an inductive filter on the analogue stage.
Page 6: Technical Specifications
Fuse: 3,15A F/T DIMENSIONS AND WEIGHT Dimensions: 425 W x 135 H x 360 D mm PSU-1250 Weight: Kg. 21 net - Kg. 27 boxed PSU-1000 Weight: Kg. 20 net – Kg. 25 boxed FINISHES Brushed Aluminium available in Black, Silver or Gold...
Page 7: Front And Rear Panel
FRONT AND REAR PANEL FRONT PANEL OVERVIEW GOLD NOTE PHASE 0°/180° Absolute Phase ON/OFF STATUS LED REAR PANEL OVERVIEW PSU PLUG MASTER SWITCH AC PLUG PLEASE NOTE The LED is always ON when the PSU- 1250/1000 is in Standby but the Master Switch is ON.
Page 8: Quick Start
4. Turn on the MASTER SWITCH on the rear panel of the PSU- 1250 . The PSU-1250 and PSU-1000 are designed for the 1000 Series of Electronics. When a unit is powered by the PSU, the STATUS LED of the unit changes colour from BLUE to GREEN.
Page 9: Warranty And Service
WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused.
Page 10: Faq And Troubleshooting
PSU is not placed too close to the source or to the PSU is noisy. placed. other potential noisy apparatus or try moving it in a different position. For spare parts visit the official Gold Note store at: www.akamaiaudio.it...
Page 11: Important Safety Information
Protect the product from rain, humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel.
Page 12 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2. Heed all warnings. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Page 13 NOTES...
Page 14 NOTES...
Page 16 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
