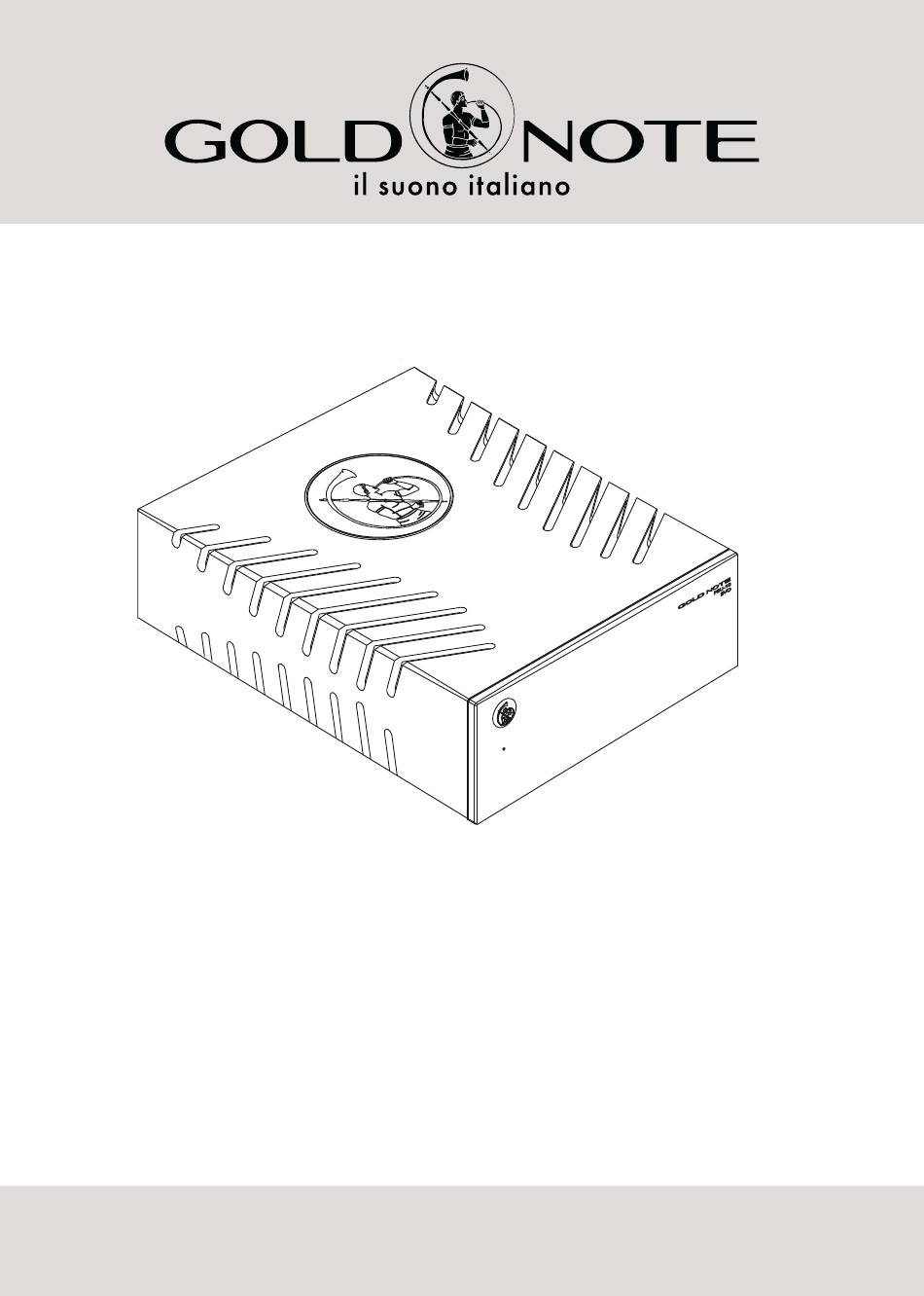

- Page 1 PSU-10 EVO EXTERNAL POWER SUPPLY FOR DS-10 AND DS-10 PLUS OWNERʼS MANUAL...
-
Page 3: Table Of Contents
INDEX PACKAGE CONTENT........................... P. 3 DESCRIPTION............................P. 4 TECHNICAL SPECIFICATIONS........................P. 5 FRONT AND REAR PANEL.......................... P. 6 QUICK START............................P. 7 WARRANTY AND SERVICE......................... P. 9 TROUBLESHOOTING..........................P. 10 IMPORTANT SAFETY INFORMATION......................P. 11... -
Page 4: Package Content
PACKAGE CONTENT • PSU-10 EVO External Power Supply • 1 AC Cable • 1 PSU External cable • Owner’s Manual... -
Page 5: Description
The PSU-10 EVO is an inductive power supply designed and developed with high-quality audio components to enhance the performance of the DS-10 and the DS-10 PLUS. The PSU-10 EVO comes in compact dimensions but delivers a great amount of power to bring you to a new level of musical pleasure and leverages unique features, including:... -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS MAIN FEATURES Four rail audio grade power supply Four ultra low noise voltage regulator +12V, +5V for digital +/- 15V for analog with inductive noise remover Maximum variation of output voltage: 0,05% Line noise rejection >80dB Common mode noise rejection >80dB Full power response time <2,5µsec POWER 100V - 120V / 220V - 240V with automatic selection, 50/60Hz... -
Page 7: Front And Rear Panel
GOLD NOTE PSU-10 STATUS LED PSU OUT REAR PANEL MASTER PSU OUT MADE IN ITALY GND GROUND CONNECTOR MASTER SWITCH AC PLUG PLEASE NOTE The LED is always ON when the PSU-10 EVO is in Standby (the Master Switch is ON). -
Page 8: Quick Start
3. Connect the PSU-10 EVO to the DS-10 using the supplied cable (see the image below) 4. Turn on the MASTER SWITCH on the rear panel of the PSU-10 EVO and then switch ON the DS-10 with the SKC DS-10... - Page 9 PSU-10 EVO is designed to work in "slave mode" with DS-10 so you only need to turn the MASTER SWITCH ON and the PSU-10 EVO will be controlled by DS-10. Every time DS-10 goes into STANDBY (the unit is OFF with the LED ON) the PSU-10 EVO will do the same and you don't need to turn the MASTER SWITCH OFF.
-
Page 10: Warranty And Service
WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 11: Troubleshooting
POWER CORD is not damaged and connect it panel is OFF damaged or not plugged in properly to the power outlet and the AC plug on PSU-10 EVO the MASTER SWITCH is OFF turn ON the MASTER SWITCH on the rear panel of PSU-10... -
Page 12: Important Safety Information
Protect the product from rain, humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 13 IMPORTANT SAFETY INFORMATION 1. Read these instructions and store them. 11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 2. Heed all warnings. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
- Page 14 NOTES...
- Page 16 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
