Wiring Diagrams Showing New Motor Installed - Cadet Com-Pak Plus Replacement Instructions
Hide thumbs
Also See for Com-Pak Plus:
- Owner's manual (10 pages) ,
- Owner's manual (11 pages) ,
- Owner's manual (10 pages)
Table of Contents
Advertisement
INSTALLATION INSTRUCTIONS
TOP TAB
Figure 1 Back
Figure 2 Front with cover removed
Figure 3
July 1999 - August 2009 C & CT Series

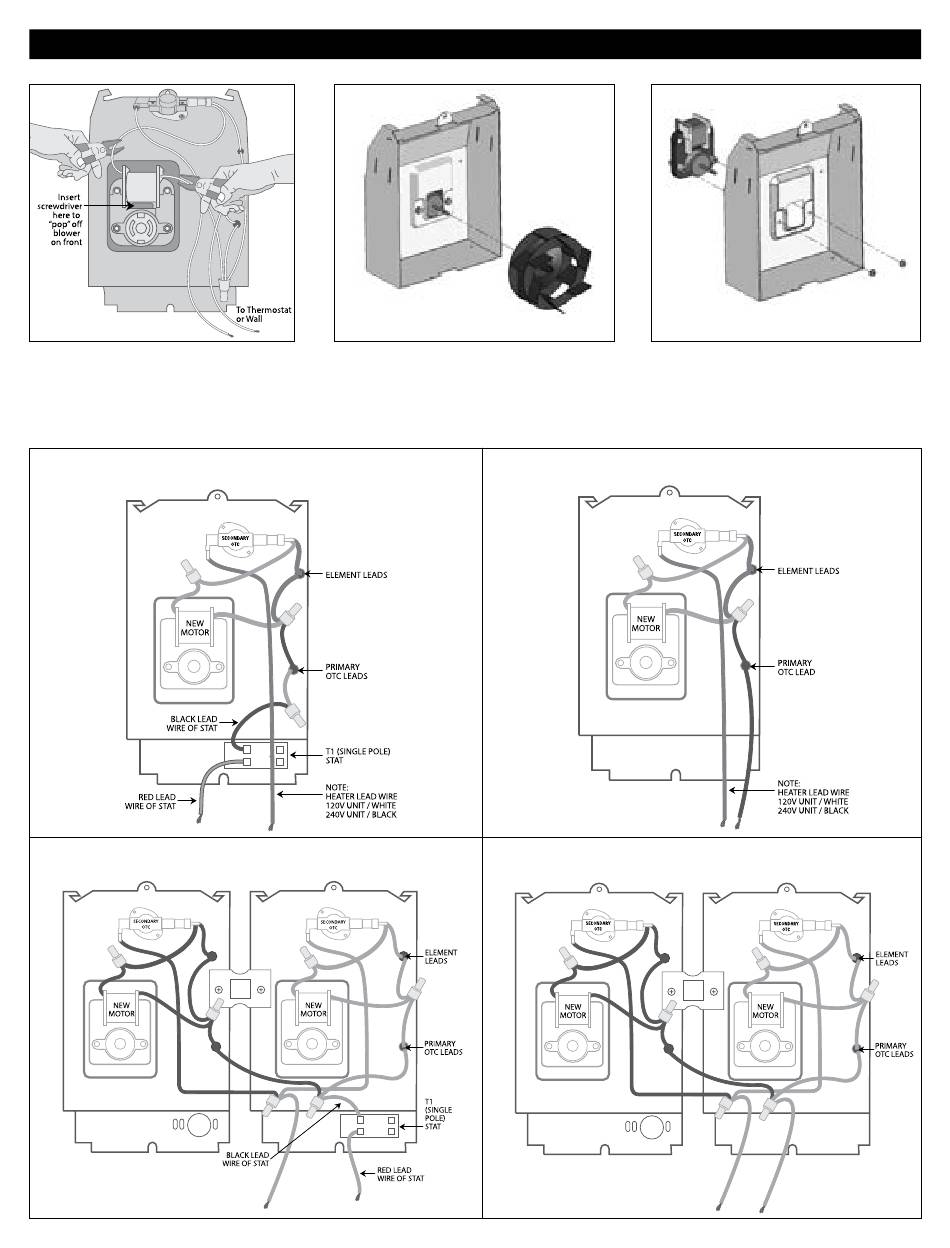

WIRING DIAGRAMS SHOWING NEW MOTOR INSTALLED
C SERIES WITH BUILT-IN THERMOSTAT
C SERIES WITHOUT THERMOSTAT
CT SERIES WITH BUILT-IN THERMOSTAT
CT SERIES WITHOUT THERMOSTAT
