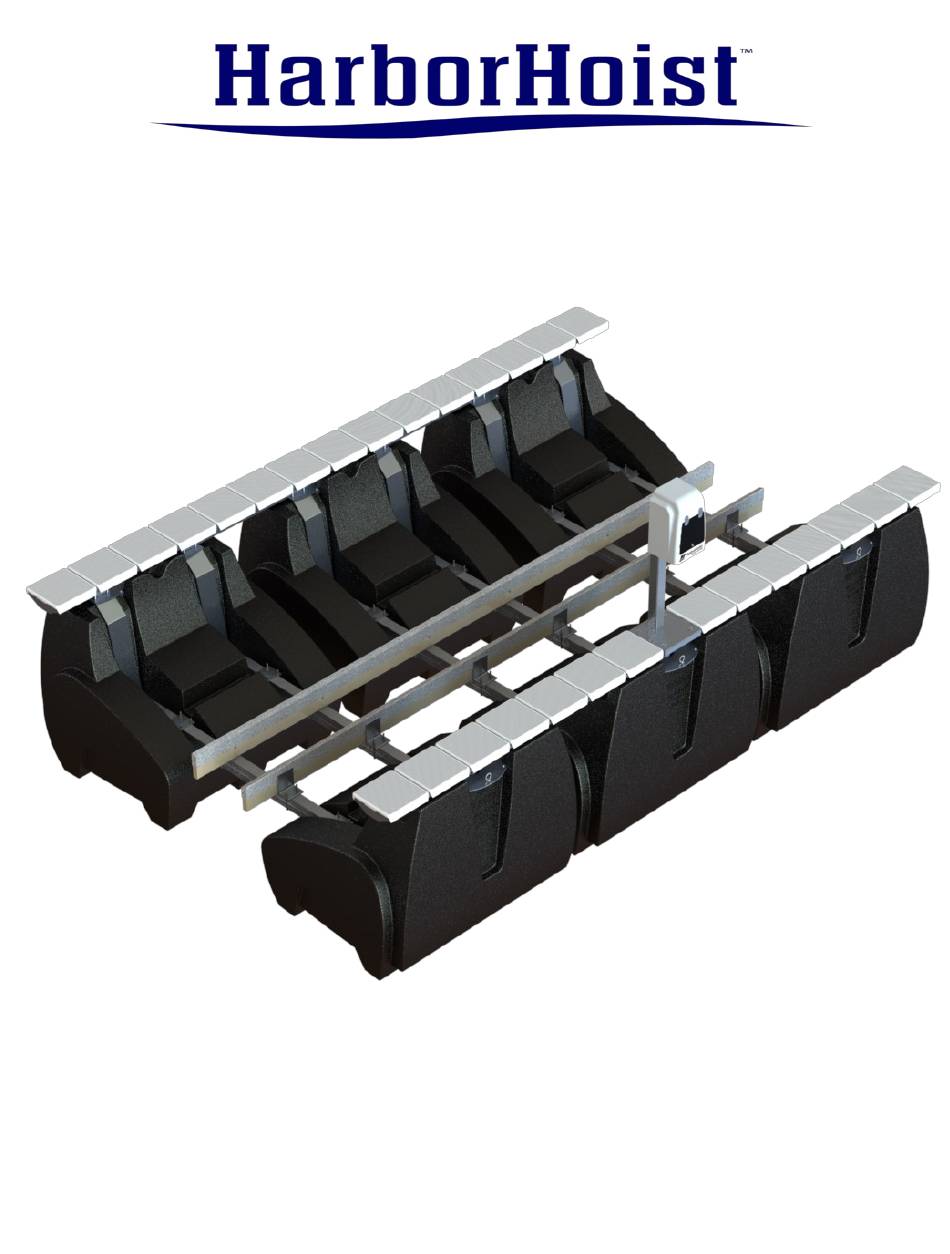

- Page 1 BY HYDROHOIST BOATLIFTS OWNER’S MANUAL US PATENT # 6,422,167 B1 REVISED: June 21st 2018 800.825.3379 BOATLIFT.COM...
- Page 2 Thank You We would like to a moment to thank you for purchasing a HarborHoist G1.5 lift. We believe our lifts are the easiest to use on the market today and know that your new lift will give you many years of trouble free service. The following pages will provide you the necessary information for maintaining your new lift, as well as instructions on its use.
- Page 3 CONTROLLER FUNCTIONALITY UP=Raises lift DOWN=Lowers lift STOP=Stops all controller functions LEVEL=Levels the lift within ± 0.5 degrees after lift is up UP + DOWN= Holding for 5 seconds sets zero-level reference point LEVEL + DOWN= Holding for 5 seconds opens all valves to release all air in tanks. Not recommended to preform this operation with boat on lift! LEVEL + UP= Holding for 5 seconds opens all valves and turns on blower.
- Page 4 INITIAL CONTROL SET-UP MUST BE PERFORMED PRIOR TO LIFT OPERATION AND/OR ATTEMPTING TO LOAD A BOAT: The Harbor Hoist controller is sold in two configurations, with either an internal or ex- ternal leveling sensor. This depends on the size of lift and dock configuration. Each have an unique setup processes if you do not know which you have please contact your installer or Harbor Hoist customer service support.
- Page 5 External Level Sensor Setup: Step 1: Before raising the lift for the first time, the zero-level reference point must be programmed. This reference point will remain in permanent memory until reset by user. Step 2: Remove all air from tanks and see if lift is level or the distance from water to the top of walkway is equal on all corners of lift.
- Page 6 General Operation Familiarize yourself with the Control Box. We have created a simple to use 4 BUTTON user interface, consisting of a UP, STOP, DOWN, and LEVEL buttons. These are the basic functions for the oper- ating the HarborHoist G1.5 lift. Internal to the Control are state of the art valve controls and circuitry that will insure that your lift comes up level each and every time you lift your boat from the water.
- Page 7 Safety Tips • Test GFCI on a monthly basis To test: TEST • Plug in cord to power source RESET • Observe Light is on • Push “test” bserve light is off INDICATOR • Press “reset” and verify light is on LIGHT •...
- Page 8 Preventative Maintenance • Because of the harsh environments in which the HarborHoist G1.5 can be installed, it is very important to inspect your HarborHoist occasionally to ensure it is at peak performance. On a monthly basis in- spect the following: •...
