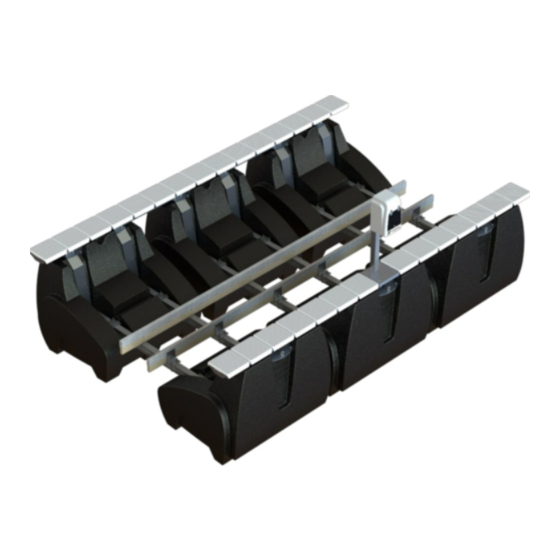

HydroHoist HarborHoist Series Installation Manual

Boat lifts
Hide thumbs

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HarborHoist Series and is the answer not in the manual?

Questions and answers

Related Manuals for HydroHoist HarborHoist Series

Summary of Contents for HydroHoist HarborHoist Series

  • Page 2 If you have questions, contact the Technical Support Team at 1-800-825-3379. ® Lifts must be installed by an approved HydroHoist installer. Failure to comply will result in termina- tion of warranty and could cause injury to the user and damage to the lift and vessel.
  • Page 3 PRE-INSTALLATION CONSIDERATIONS Due to its size, the following determinations must be made before installing a HarborHoist: • Location of lift assembly (remote or on-site) • Method of transport from assembly to launch site • Equipment required to safely build, transport, and launch the lift •...
  • Page 4 Chart 1: General Specification of the Lift Standard V-Hull Series *Tank Dimensions ***Max Beam Hull Bunk Lifting Weight of # of Main # of AUX Min. Lift of Boat @ Max Lift Width Length Depth Length Size Lift (lbs.) Tanks Tanks Beam Min.
  • Page 5 Chart 2: Required Tools 5/16” Socket Wrench / Driver Drill / Impact Driver 7/16 Drill Bit (tin-coated high helix 6” cut length 7/16” Socket Wrench / Driver recommended) 9/16” Deep Socket Wrench / Driver Hammer / Rubber Mallet 3/4” Deep Socket Wrench / Driver Thread Sealant 7/16”...

  • Page 6: Hh-Lpl

    Chart 4: PARTS LIST—20000 HHE-20000 V-Hull V-Frame Part Description Expected Quantity Tank Assembly HH-3000 TANK - HARBORHOIST GEN 1.5 HHE-2650 KIT BOX - HARBORHOIST MAX TANK SET HH-2601 TOP PLATE - HH GEN 1 MOD - ALUMINUM HH-LPL-1024 GASKET - TOP HARBORHOIST HHE-1028 GASKET - UNDER TANK - HARBOR HOIST MAX HHE-7103...

  • Page 7: Table Of Contents

    Chart 4: PARTS LIST— 25000 HH-25000 V-Hull V Frame Part Description Expected Quantity Tank Assembly HH-3000 TANK- HARBORHOIST GEN 1.5 HHE-2650 KIT BOX, HARBORHOIST MAX TANK SET HH-2601 TOP PLATE - HH GEN 1 MOD- ALUMINUM HH-LPL-1024 GASKET - TOP HARBORHOIST HH-LPL-1028 GASKET - UNDERNEATH - HARBORHOIST HH-7103...

  • Page 8: Hh-Lpl

    STEP 1: WALKWAY TOP PLATE ASSEMBLY Part # Parts Required (Per Tank) Quantity Part # Hardware Required Quantity HH-2601 Top Plate HH-LPL-1502 Nyloc Nut (1/4-20 SS) HH-LPL-1024 Top Gasket HH-LPL-1501 Hex Bolt (1/4-20 x 1.5 SS) 2090216 Flat Washer (1/4” SS) HH-1916 Lock Washer 1/2”...

  • Page 9: Hh-Lpl

    STEP 2: ATTACH TOP PLATE ASSEMBLY TO STRAP PLATES Part # Parts Required (Per Tank) Quantity Part # Hardware Required Quantity Walkway Assembly HH-LPL-1503 U-Bolt 3/8-16 x 3 x 6 2090242 Flat Washer 3/8” HH-LPL-1025 Strap Plate HH-LPL-1505 Lock Washer 3/8” HH-1975 Brass Nut 3/8-16 1.
  • Page 10 STEP 3: ATTACH TANK FRAME BRACKETS TO STRAP PLATES Part # Hardware Required Quantity Part # Parts Required (Per Tank) Quantity U-Bolt (3/8-16 x 3 x 5) HH-LPL-1503 Support Channel HH-7102 Flat Head Bolt (5” SS) HH-LPL-1006 Bottom Gasket HH-7103 Nylon HH Tank Bushing HH-LPL-1031 Strap Plate...
  • Page 11 STEP 4: ATTACH TANK STRAP ASSEMBLY TO TANK Part # Hardware Required Quantity Part # Parts Required (Per Tank) Quantity HH-LPL-1508 Flat Washer (1/2 x2 OD SS) HH3000 Tank HH-2100 Brass Nyloc Nut (1/2-13) HH-LPL-1028 Gasket - Underneath Tank HH-7901 Bottom Hex Bolt (1/2 x 13 x 8) HH-LPL-1031 Nylon Bushing HH Tank...
  • Page 12 STEP 5: STUB TUBE INSTALLATION Part # Parts Required (Per Tank) Quantity Part # Hardware Required Quantity HHE-2650 Stub Tube Assembly (Kit Box) HHE-2650 Hose Clamp #24 (Kit Box) Thread Sealant Not supplied 1. Reposition the tank in the upright position. 2.
  • Page 13 STEP 6(a): ALIGNING THE TANKS Side Alignment 1. Align the tanks next to each other, five on each side, spacing them so the lifting rings are 68.25” apart. You may want to use the full-length hull support bracket as a straight-edge to align the tanks. The hull support bracket is used in a later step.
  • Page 14 3. Perform Steps 6(b) and (c). Verify equal length diagonals as you build from tank Set 1 to tank Set 5 as shown below to ensure they are square. 4. After confirming the lift is square and all assembly for Steps 6(b) and (c) are completed, tighten all hardware completely.
  • Page 15 STEP 6(b): TANK AND WALKWAY ALIGNMENT AND ATTACHMENT Parts Required (Per Tank) Quantity Hardware Required Quantity Aluminum Spacer Tube (3 X 3) Lock Washer (3/8” SS) Span Beam Brass Nut (3/8-16) Walkway Support Flat Washer (3/8”) 1. Place the Spacer Tubes between the outside set of U-Bolts on tank Set 1 and Set 5. See Figure B below. 2.

  • Page 16: Hh-Lpl

    STEP 6(c): INSTALL TANK CROSS BEAM ASSEMBLY Part # Hardware Required (Per Tank) Quantity Part # Parts Required (Per Tank) Quantity HH-1975 BRASS HEX NUT 3/8-16 HH-7101 TOP CLAMP—RECEIVER HH 2090242 FLAT WASHER 3/8” SS CROSS CHANNEL - 3IN. SQ. 104IN. LONG HH-3404 HH-LPL-1505 LOCK WASHER 3/8-16 SS...
  • Page 17 STEP 7(a): HULL PAD ALIGNMENT (V-HULL ONLY) Before installing the hull pads, it is important to determine the bunk spacing: how far apart the hull pads should be mounted on the cross beams. To calculate the proper spacing, refer to the table below. Consult your boat manufactur- er for dead rise information.
  • Page 18 STEP 7(b): MOUNTING THE HULL PADS (V-HULL ONLY) Part # Hardware Required Quantity Part # Parts Required Quantity HH-2603 NUT 3/8"-16 BRASS HH-2912 HULL PAD 12FT. 2090242 WASHER - FLAT-3/8" SS HH-2916 HULL PAD 16FT. HH-LPL-1505 LOCK WASHER 3/8"-16 SS HH-LPL-103 BRACKET- HULL SUPPORT STD HHE-7107...
  • Page 19 STEP 8: INSTALLING THE CONTROL STAND Part # Hardware Required Quantity Part # Parts Required Quantity HH-1913 BOLT-CARRIAGE 1/2"-13 X 1.5 SS HH-2517 CONTROL-STAND HARBORHOIST GEN 1.5 HH-1916 WASHER-LOCK 1/2" 18-8 SS 2090208 WASHER-FLAT 1/2" SS HH-1926 NUT-HEX 1/2 -13 BRASS 1.

  • Page 20: Hh-Lpl

    STEP 9: INSTALL THE CROSS CHANNEL ASSIST (25,000 ONLY) Part # Parts Required Quantity Part # Hardware Required Per Beam Quantity HH-LPL-1504 U-BOLT .375 x 3 x 6 SS CROSS CHANNEL - 3IN. SQ. V CEN- HH-4348 TER AUX ASSIST HH-2603 NUT 3/8"-16 BRASS HH-LPL-1505...
  • Page 21 STEP 10: ATTACH AUXILIARY TANKS TO LIFT Part # Parts Required Qty 25k Qty 20k Part # Hardware Required Qty 25k Qty 20k AUXILIARY TANK ASSY- HH-LPL-1504 U-BOLT .375 x 3 x 6 SS HH-4348 HARBORHOIST 48 x 96 x 36 HH-2603 NUT 3/8"-16 BRASS I-BEAM -6061 AL 3x2.5x.26/.15 x...
  • Page 22 STEP 11: INSTALL HOSE SYSTEM Part # Hardware Required Qty 25k Qty 20k 2093005 TEE-HOSE 1 1/4" BARBED NYLON 2090907 HOSE CLAMP 3072517 HOSE-RUBBER 1 1/4" id x 100FT. CUT 3072512 HOSE-RUBBER 1 1/4" id x 30FT. CUT 3072516 HOSE-RUBBER 1 1/4" id x 50FT. CUT We recommend using the supplied hose labels when plumbing the air system to ensure the hoses are con- nected to the correct port on the control unit.
  • Page 23 Figure 3: 20,000 LB. HOSE ROUTING DIAGRAM T = Tee (NOTE: Typical hose length from Stub Tube to tee is between 36" and 38") Figure 4: 25,000 LB. HOSE ROUTING DIAGRAM T = Tee (NOTE: Typical hose length from Stub Tube to tee is between 36" and 38")
  • Page 24 STEP 12: INSTALL LEVEL SENSOR The hoist comes with a sensor to keep it level when lifting and lowering. Proper placement of the sensor is critical. It should be mounted as close as possible to the center of the lift. Mount the sensor just outside the bunk pad, flat on a Cross Channel that is parallel to the water’s surface.
  • Page 25 STEP 13: INSTALL WALKWAY END CAPS AND WALKWAY PADS Part # Parts Required Quantity Part # Hardware Required Quantity HH-2525 END CAP - HH WALKWAY HH-1971 SCREW #12--24 HH-2508 WASHER LICK 1/4" SS HH-1973 NUT #12-24 HEX HEAD 18-8 SS 1.
  • Page 26 STEP 14: TIE-OFF MOORING (MOORING ROPES NOT INCLUDED) Tie off the lift using a method similar to mooring a boat in a slip. The goal is to restrain the lift as much as possible while leaving enough slack in the lines to allow the lift to raise and lower properly. NOTE: Use a good mooring rope with enough strength for the size of boat and lift being installed.
  • Page 27 STEP 15: DETERMINE MOORING LOCATION Number of Mooring Poles Lift Capacity Calm Water Moderate to Rough Water* 25000 20000 Calm Water: Less than 1’ wave action and/or lower than 2mph current. Moderate to Rough water: 1-2’ wave action and/or more than 3mph current. *If fitted with canopy, use rough water bracket configuration.
  • Page 28 STEP 16: MOORING POLE ASSEMBLY Parts Required Quantity Parts Required Quantity Hardware Required Quantity Square Mooring Tube Dock Side Mooring Plate Stainless Steel Bolts (1/2-13 x 4) Ring Mooring Bracket Mooring Ring Clip Stainless Steel Carriage Bolts (1/2-13 x 3.5) Pipe (cover) Lock Washers (1/2”) Mooring Ring...
  • Page 29 STEP 17: CABLE ASSEMBLY INSTALLATION Part # Hardware Required Quantity Part # Parts Required Quantity HarborHoist Mooring Cable with Sleeves Washer Flat - 2" O.D. SS Nut - Locking Bolt 1/2"-13 UNC -SS Sleeve Bearing—Oil Embedded 1. The Top Plate and Gasket are pre-drilled for the bolt assembly. In some early models, you may have to field drill them.
  • Page 30 Commissioning the Lift Damage to the lift or vessel can result from improper initial setup of the system. Consult a HydroHoist approved installer for initial setup and support. • Installation and service should be performed by a qualified service professional.
  • Page 31 STEP 18: COMMISSIONING THE LIFT Perform the following steps after the lift has been installed, WITHOUT a vessel on the hoist. 1. Raise the hoist until all main tanks are bubbling air. Stop the hoist. 2. Verify the frame is out of the water and the walkways are parallel to the surface of the water. 3.
  • Page 32 HydroHoist. Re-installation, adjusting the bunks, and/or adjusting the tank beam spacing must be performed to the standards of HydroHoist. It is the obligation of the End User to inform all equipment operators of the above conditions. Additional Owner Manuals and Safety Warning Decals are available by...
  • Page 33 Customer Service at customerservice@boatlift.com Parts and Customer Service Contact Customer service, parts, and shipping: customerservice@boatlift.com Product Registration Verify that a HydroHoist® dealer registered your boat lift. If it is not registered, warranty support may be limited. Visit www.boatlift.com to register your lift.
  • Page 34 Appendix...
  • Page 35 A1: Lifting Information 1. Verify your lifting has capacity for the weight of the HarborHoist. See Table 1 for weight of lift. 2. You will need four straps that can support the load fastened around the Cross Channels outside the Hull Pads, and then attached to a crane or fork lift.
