ASSEMBLE THE SEAT

Put the plastic safety cover to the seat stick, insert the seat into the seat tube in desired height and
tighten the collar screw. Put the safety plastic cover over the collar screw. ( Fig.2 )

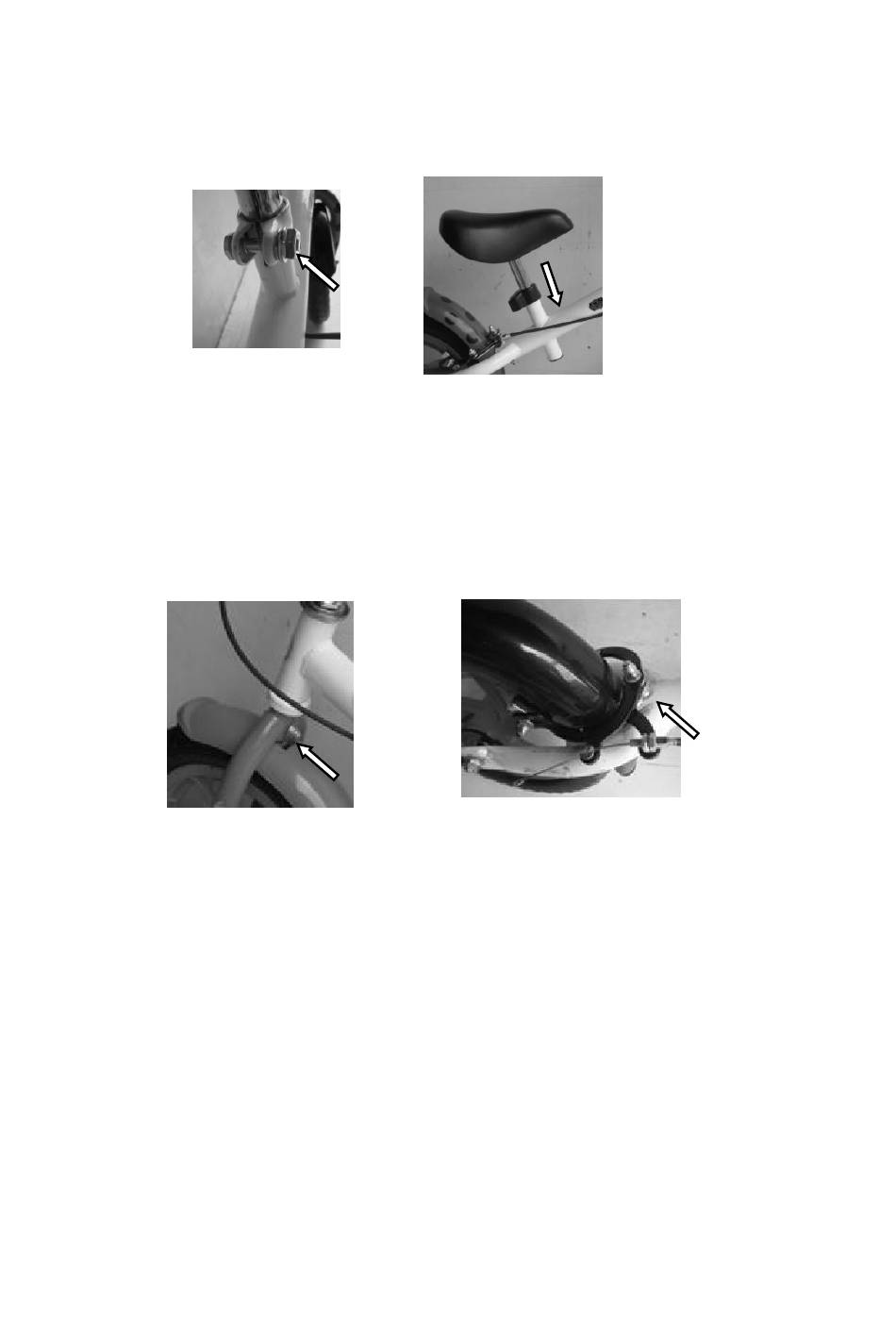

Fig. 2

ASSEMBLE THE MUDGUARDS

Fix the front and back mudguards by screws on front fork (a) and back fork (b).
a b
Fig. 3

ASSEMBLE THE BRAKE

Note: The brakes are not adjusted from factory. Before riding, these brakes must be fitted and adjusted. Install the
brake lever on the handlebars. The right brake lever controls the rear brake.
ASSEMBLE HAND BRAKE
1. Fix the rear mudguard and rear caliper brake on rear fork.
2. Install brake levers onto handlebar (this may already be done in the factory).
3. Insert the barrel end of the brake cable wire into the hole in the brake lever. (See Fig. 4)
ADJUST HAND BRAKES
During braking must the brake lining with its whole surface chafe against the rim.If necessary, tighten or
loosen the anchor bolt nut(Fig.4) on the right part of the brake, pull the brake cable wire through the
anchor bolt hole until there is no slack in the inner brake wire, tighten the anchor bolt nut. Be sure the
