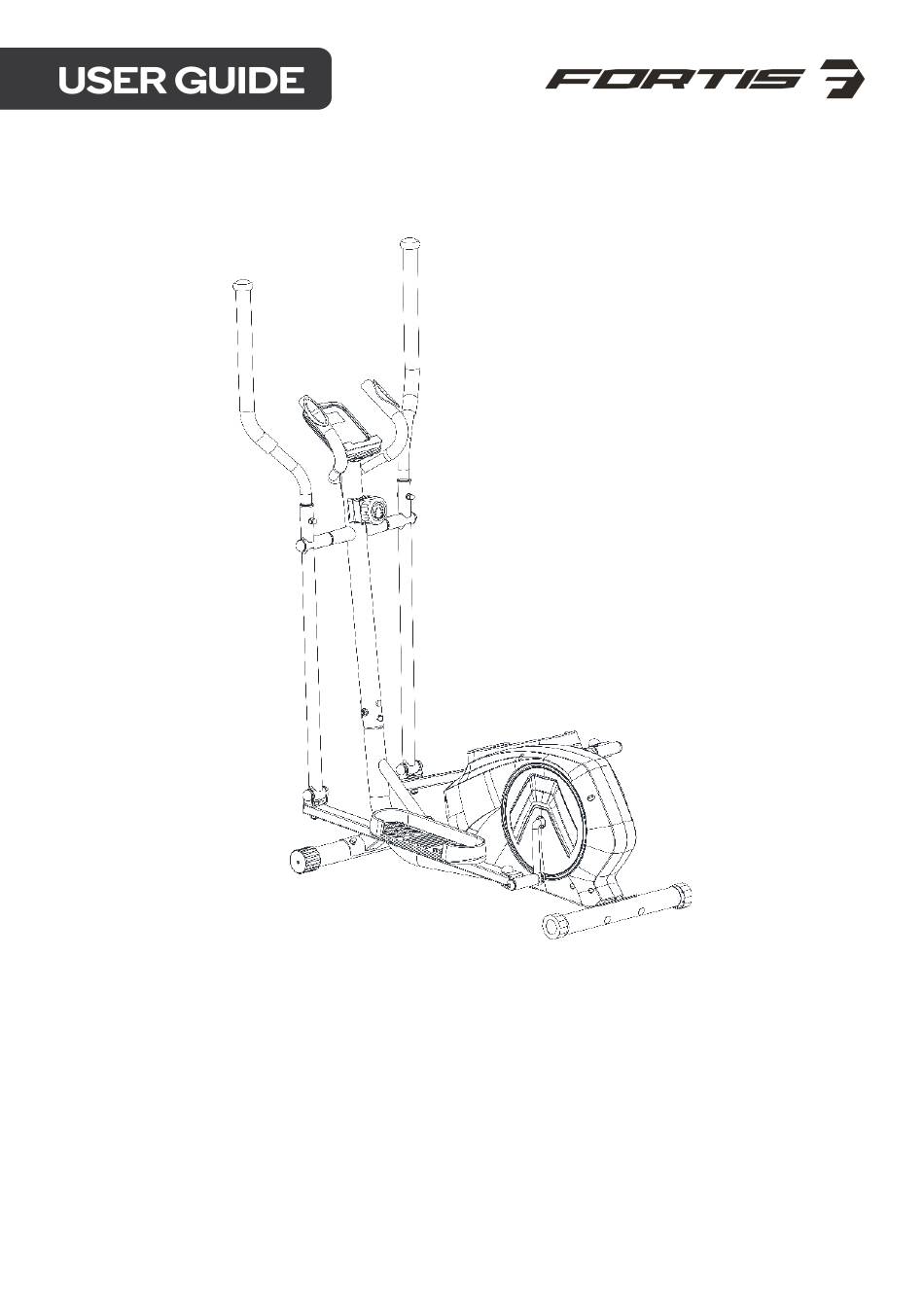

- Page 1 MAGNETIC FLYWHEEL ELLIPTICAL CROSS TRAINER (FXT-310) FSMFEXT310A...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Read all of the instructions in this guide before assembling or using this product. Do not skip, substitute, or modify any steps or procedures in this guide, as doing so could result in personal injury or product damage. Retain this guide for future reference. •... - Page 4 OVERVIEW Exploded View...
- Page 5 Parts List Description Qty. Description Qty. Main frame End capΦ28*32*Φ50 Connecting rod Foam gripΦ26*5*410 Swing rod (L) Bolt M8*58*15*S13 Swing rod (R) Housing L Magnetic Plate Housing R Handlebar post Screw ST4.2*16*Φ8 Middle handlebar Screw ST4.2*19*Φ8 Rear connector Nut 1 Roller Φ51.6 Handlebar (L) Handlebar (R)
- Page 6 End cap S13 Bearing 6001-2RS Bushing Φ32*Φ26.5*L82.7 Wave Washer d12*φ17.5*0.3 Bushing 1Φ32*3*Φ28*16*Φ14.3 Bolt M6*12*S10 Bushing 4 Washer d6*Φ16*1.5 Bushing Φ14*Φ8.3*48 Flywheel 3*φ200 Axle Φ20*103 Bolt M8*63*20*S13 Bearing bracket Φ72*11 Washer d8*Φ16*1.5 Nut M8*H7.5*S13 Bearing 6001-2RS CXSH Bolt M10*42*20*S17 Fixed plate t1.5*56*76 Washer d10*Φ20*2 Screw M6*8*Φ12 Nut M10*H9.5*S17...
- Page 7 ASSEMBLY Step 1: Secure the Front & Rear Stabilisers (12 & 14) to the Main Frame (1) using a Bolt (17), Arc Washer (18), Spring Washer (20) and Nut (19). Tighten with the supplied Spanner (114).
- Page 8 Step 2: Connect the Sensor Wire (105) with the Trunk Wire (104) as shown in Figure 1. Connect the Tension Control (99) with the Tension Control Wire (100) as shown in Figure 2. Insert the Handlebar Post (6) into the Main Frame (1) and secure using a Bolt (60), Arc Washer (18) and Nut (38).
- Page 9 Step 3: Take out the pre-installed Bolt (27), Spring Washer (20) and Washer (28) from the Handlebar post (6). Insert the Swing Rod (L) (3) and Swing Rod (R) (4) into to the left and right sides of the Handlebar Post (6) respectively. Secure using a Bolt (27), Spring Washer (20) and Washer (28).
- Page 10 Step 4: Secure the Pedals (42) to the Connecting Rods (2) with a Bolt (43), Washer (40) and Nut (41). Tighten with the supplied Spanner (113).
- Page 11 Step 5: Insert and secure the Handlebar (L) (9) to the Swing Rod (L) (3) with a Bolt (56), Arc Washer (57) and Nut (19). Tighten with the supplied Spanner (114). Insert and secure the handlebar (R) (4) to the Swing Rod (R) (4) with a Bolt (56), Arc Washer (57) and Nut (19).
- Page 12 Step 6: Secure the Middle Handlebar (7) to the Handlebar Post (6) with a Bolt (24), Spring Washer (20) and Arc Washer (18). Tighten with the supplied Spanner (112). Remove the Bolt (16) from the rear of the Computer (103). Connect the Computer Wire (103a) with the Trunk Wire (104), then secure the Computer (103) to the Handlebar Post (6) with the Bolt (16).
-
Page 13: Operation
OPERATION MODE Press this button to change the display or choose the window to be set. In monitor status, hold this button for 3 seconds to reset all values to zero. Functions SCAN Press MODE button until “SCAN” appears; the computer will rotate through all 5 functions: Time, Speed, Distance, Calories and Pulse. -
Page 14: Auto-Start-Stop
PULSE Hold the pulse sensor and read your heart rate per minute. During the process of pulse measurement, the measurement value may be higher than the actual pulse rate during the first 2~3 seconds, then will return to normal level. The measurement value cannot be regarded as a basis for medical treatment. - Page 15 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
