Leg Assembly - Sailrite FABRICATOR Assembly Instructions Manual

Standard Fabricator Assembly
®

Leg Assembly

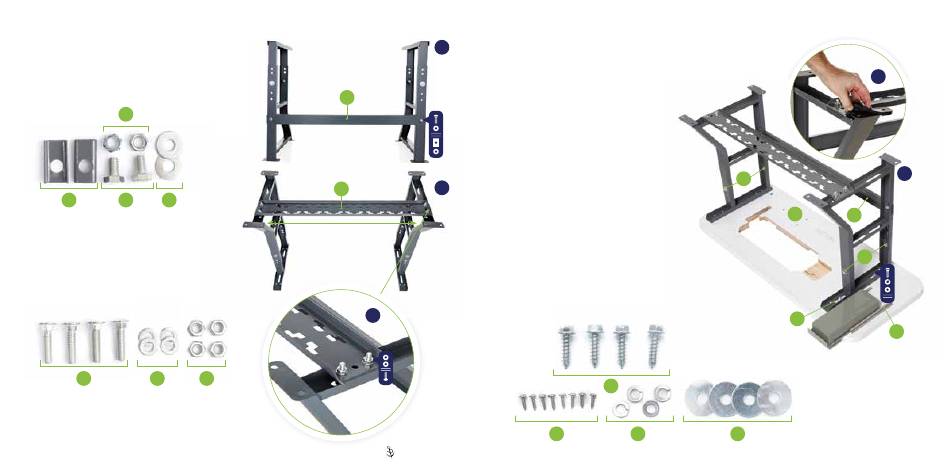

Find parts A, B, C and D. Stand both K-legs
upright and bolt the back support bar (E) to the
bottom hole at the back of the table legs (1). Do
not tighten down.
B
A C D
Find parts F, G and H. Flip the legs upside down
and place the treadle mount bar (I) at the back of
the forward most slots (2). Bolt the treadle mount
bar to the bottom surface of the K-legs (3). Do
not tighten down.
F G H
1 |
1
E
2
I
FRONT
3
Sailrite.com
Attaching Tabletop & Drawer
On a soft surface, place the tabletop "bottom"
side up. Line up the table legs as shown (4).
The back support bar (E) should be on the
same side of the table as the three motor
mount holes (J).
Line the slots (K) of the legs up with the pilot
holes in the bottom of the tabletop. Use L, M
and N to bolt the legs to the tabletop.
Tighten down all attachment points (1, 3).
Install the drawer with screws (O) by lining up
the rails (P) with the pilot holes in the bottom
of the tabletop. Overtightening the screws will
prevent drawer from sliding smoothly.
Install rubber foot pads on each of the
rectangular leg bases (5).
Table Height
Stand table upright and use bolts (Q) to adjust
table height to the desired location.
L
O M
Fabricator Assembly Instructions
®
Standard Fabricator Assembly
®
5
4
Q
J
E
Q
K
P
N
| 2
