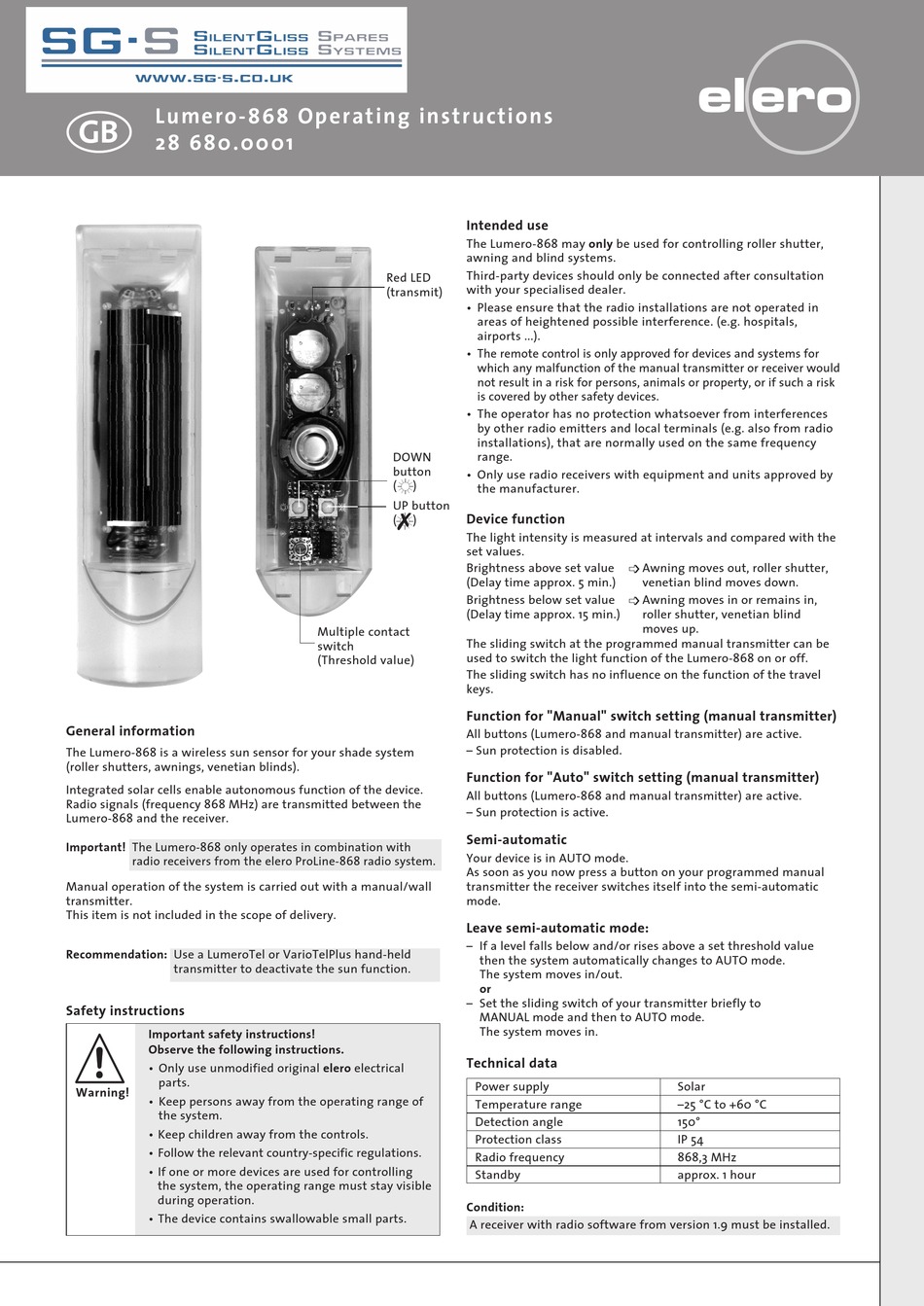

General information

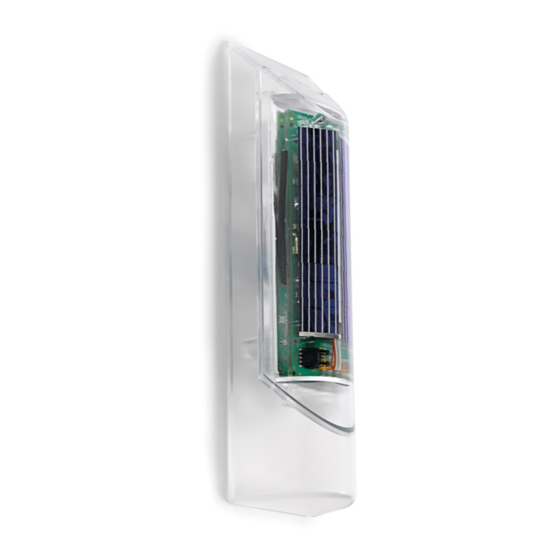

The Lumero-868 is a wireless sun sensor for your shade system
(roller shutters, awnings, venetian blinds).
Integrated solar cells enable autonomous function of the device.
Radio signals (frequency 868 MHz) are transmitted between the
Lumero-868 and the receiver.
Important! The Lumero-868 only operates in combination with
radio receivers from the elero ProLine-868 radio system.
Manual operation of the system is carried out with a manual/wall
transmitter.
This item is not included in the scope of delivery.
Recommendation: Use a LumeroTel or VarioTelPlus hand-held
transmitter to deactivate the sun function.

Safety instructions

Important safety instructions!

Observe the following instructions.
• Only use unmodified original elero electrical
parts.

Warning!

• Keep persons away from the operating range of
the system.
• Keep children away from the controls.
• Follow the relevant country-specific regulations.
• If one or more devices are used for controlling
the system, the operating range must stay visible
during operation.
• The device contains swallowable small parts.

Intended use

The Lumero-868 may only be used for controlling roller shutter,
awning and blind systems.
Third-party devices should only be connected after consultation
Red LED
with your specialised dealer.
(transmit)
• Please ensure that the radio installations are not operated in
areas of heightened possible interference. (e.g. hospitals,
airports ...).
• The remote control is only approved for devices and systems for
which any malfunction of the manual transmitter or receiver would
not result in a risk for persons, animals or property, or if such a risk
is covered by other safety devices.
• The operator has no protection whatsoever from interferences
by other radio emitters and local terminals (e.g. also from radio
Installations), that are normally used on the same frequency
DOWN range.
button
• Only use radio receivers with equipment and units approved by
( )
the manufacturer.
UP button

Device function

^
( )
The light intensity is measured at intervals and compared with the
set values.
Brightness above set value
(Delay time approx. 5 min.)
Brightness below set value
(Delay time approx. 15 min.)
Multiple contact
The sliding switch at the programmed manual transmitter can be
switch
used to switch the light function of the Lumero-868 on or off.
(Threshold value)
The sliding switch has no influence on the function of the travel
keys.
Function for "Manual" switch setting (manual transmitter)
All buttons (Lumero-868 and manual transmitter) are active.
– Sun protection is disabled.
Function for "Auto" switch setting (manual transmitter)
All buttons (Lumero-868 and manual transmitter) are active.
– Sun protection is active.

Semi-automatic

Your device is in AUTO mode.
As soon as you now press a button on your programmed manual
transmitter the receiver switches itself into the semi-automatic
mode.
Leave semi-automatic mode:
– If a level falls below and/or rises above a set threshold value
then the system automatically changes to AUTO mode.
The system moves in/out.
or
– Set the sliding switch of your transmitter briefly to
MANUAL mode and then to AUTO mode.
The system moves in.

Technical data

Power supply
Temperature range
Detection angle
Protection class
Radio frequency
Standby
Condition:
A receiver with radio software from version 1.9 must be installed.
➩ Awning moves out, roller shutter,
venetian blind moves down.
➩ Awning moves in or remains in,
roller shutter, venetian blind
moves up.
Solar
–25 °C to +60 °C
150°
IP 54
868,3 MHz
approx. 1 hour
