elero Lumero-868 Operating Instructions

Lumero-868
28 680 0006
Operating instructions (translation)
General information
The Lumero-868 is a wireless sun sensor for your shade
system (roller shutters, awnings, ventetian blinds).
Integrated solar cells enable autonomous function of the
device. Radio signals (fequency 868 MHz) are transmitted
between the Lumero-868 and the receiver.
Important!
The Lumero-868 only operates in combination with radio
receivers from the elero ProLine and ProLine 2 radio-
system.
Manual operation oft the system is carried out with a
manual/wall transmitter. This item ist not included in the
scope of delivery.
Recommendation:
Use a LumeroTel or VarioTelPlus hand-held transmitter to
deactivate the sun function.
Safety instructions
Important safety instructions!
Observe the following instructions: .
• Only use unmodified original elero electrical
parts.
Warning!
• Keep persons away from the operating range
of the system.
• Keep children away from the controls.
• Follow the relevant country-specific regulati-
ons.
• If one ofr more devices are used for control-
ling the system, the operating range mus stay
visible during operation.
• The device contains swallowable small parts.
Intended use
The Lumero-868 may only be used for controlling roller
shuttter, awning and blind systems.
Third-party devices should only be connected after con-

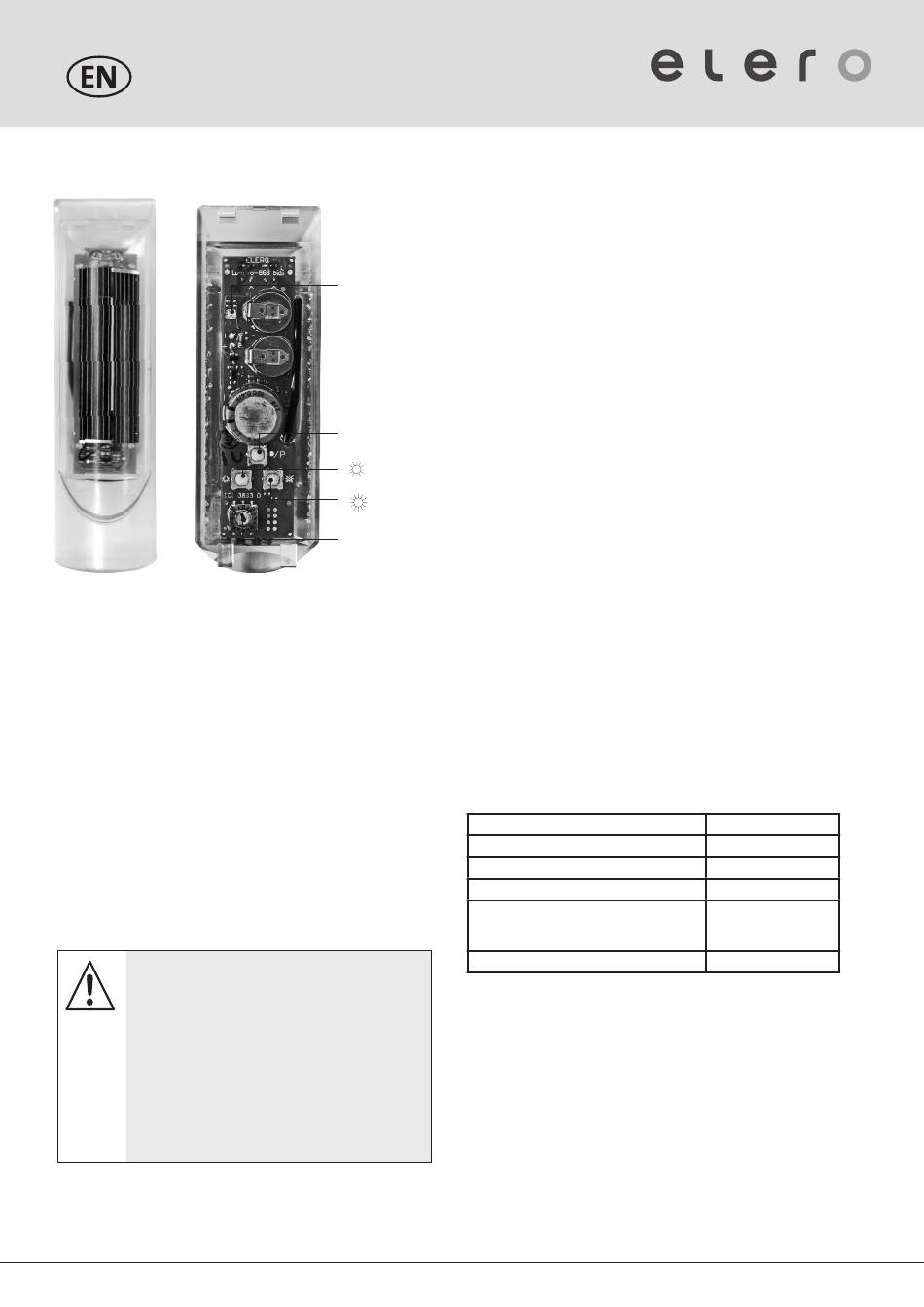

LED (transmit)
sultation with your specialised dealer.
• Please ensure that the radio installations are not ope-
rated in areas of heightened possible interference (e.g.
hospitals, airports ...).
• The remote control is only approved for devices and
systems for which any malfunction of the manual trans-
mitter or receiver would not result in a risk for persons,
animals or properly, or if such a risk is covered by
other safety devices.
STOP /
• The operator has no protection whatsoever from inter-
P button ferences by other radio emitters and local terminals
(e.g. also from radio installations), that are normally
DOWN button
used on the same frequency range.
( )
• Only use radio receivers with equipment and units
approved by the manufacturer. .
UP button
( ‫٭‬ )
Device function
Multiple contact
switch
The light intensity is measured at intervals and compared
with the set values.
Brightness above
set value (delay time
approx. 5 - 7 min.)
Brightness below
set value (delay time
approx. 15 - 17 min.)
The sliding switch at the programmed manual transmitter
can be used to switch the light function of the Luemr-868
on or off.
Technical data
Power supply
Temperature range
Detection angle
Protection class
Radio frequency
for USA and some countries from south
america, Canada, Australia
Standby
→ Awning moves out, roller shutter,
venetian blind moves down
(flashing LED).
→ Awning moves in or remains in,
roller shutter, venetian blind moves
up.
Solar
–25 °C bis +60 °C
190 °
IP 54
868 MHz
915 MHz
approx. 1 hour
181008706_EN_0216
