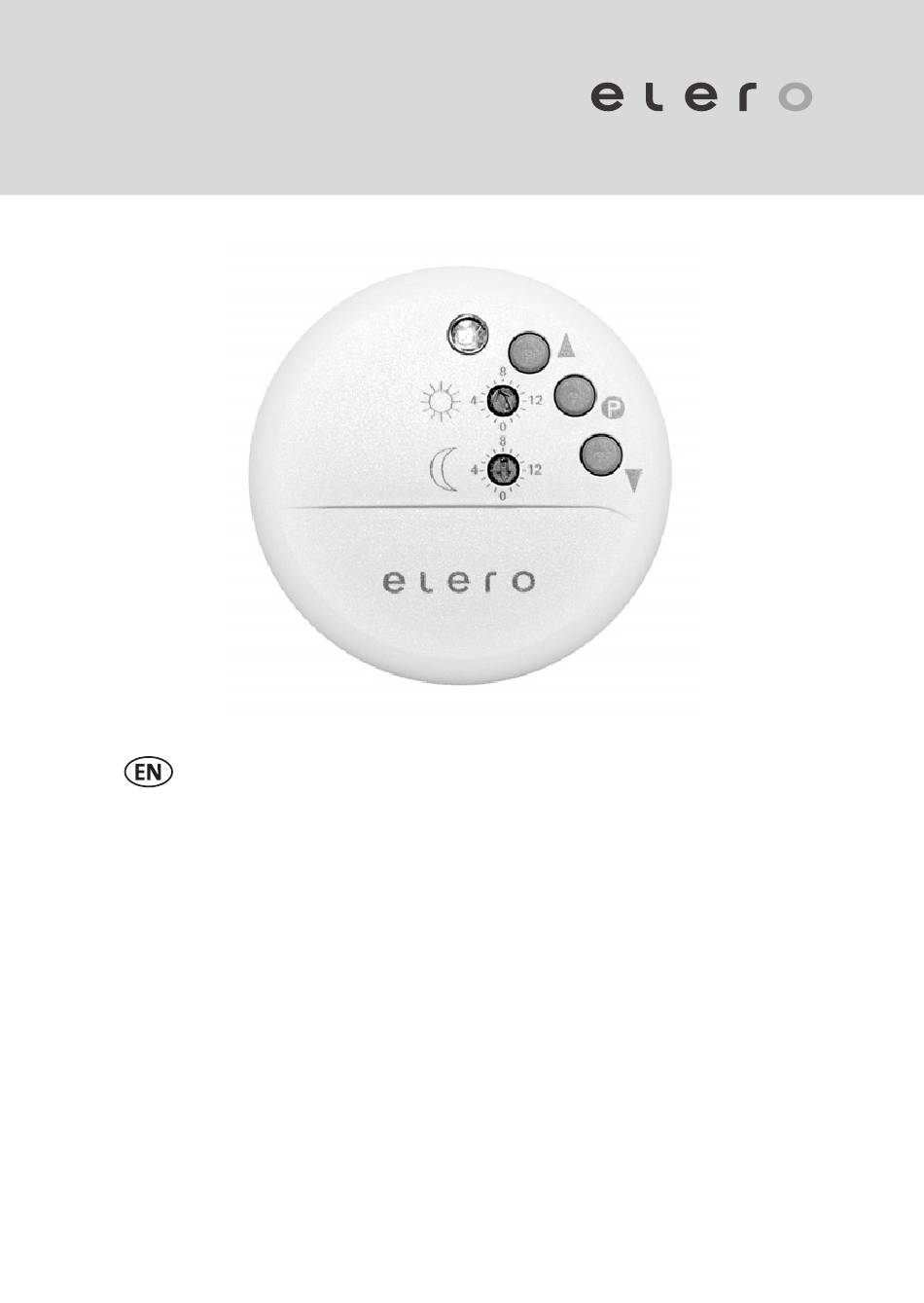

- Page 1 Lumo-868 Lumo-915 Operating instructions (translation) Keep the operating instructions in a safe place! 181005106_EN_0515...
- Page 2 The German operating instructions are the original version. All other documents represent the language translations of the original text. All rights in the case of a patent, utility model or ornamental design registration are reserved. Ⓒ elero GmbH 2 | EN...
-
Page 3: Table Of Contents
Bidirectional radio system Unidirectional radio system Group control unit Commissioning 2.5.1 Meanings of the status display 2.5.2 Opening and closing the Lumo-868 Programming Lumo-868 Settings of the encoding switches Function light sensor 2.8.1 Selection and display of the operating mode 2.8.2 Settings within an operating mode... - Page 4 Notes on the EC declaration of conformity Troubleshooting Repair Manufacturer's address Disposal / notes on environmental protection Ⓒ elero GmbH 4 | EN...
-
Page 5: Product Description
Product description Description of the device The Lumo-868 is a sensor for light, twilight and glass break- age as well as a radio sensor and serves to control roller shutters. it off ers you the option of automatically protecting your plants and inventory from too-strong solar radiation. -
Page 6: Product Features
Display of radio signals through the status display Glass breakage sensor can be switched off . Product versions The Lumo-868 can be purchased as an 868-MHz version or as a 915-MHz-version. Ⓒ elero GmbH 6 | EN... -
Page 7: Scope Of Supply
Functions of the Lumo-868 • Sun function When the value set at the sun threshold controller is exceeded, the roller shutter moves until the Lumo-868 is completely shaded and then moves back until the Lumo- 868 is exposed entirely again. -
Page 8: Bidirectional Radio System
• Glass breakage function: The glass breakage sensor, which can be deactivated, recognises glass breakage on request at vibrations of the Lumo-868 and will then move the roller shutter all the way down. Bidirectional radio system A bidirectional radio system transmits radio signals to a radio receiver and enables feedback from the radio receiver to the radio transmitter. -
Page 9: Group Control Unit
You can program any number of radio receivers in each radio transmitter. Commissioning • The prerequisite for commissioning of the Lumo-868 is an inserted functional battery (as in the delivery condition). When the battery is discharged, replace it with a model of the same type as described in chapter 2.11. -
Page 10: Opening And Closing The Lumo-868
If the status display no longer lights up when you press a button, the battery must be replaced (cf. chapter 2.11). 2.5.2 Opening and closing the Lumo-868 • Turn housing lid (upper housing shell) approx. 2 mm clockwise and lift it off . -
Page 11: Programming Lumo-868
The status indicator is lit briefl y. The roller shutter stops briefl y and then moves up. 4. Push the button DOWN of the Lumo-868 at once after a movement down starts. The status indicator is lit briefl y. The roller shutter will stop. -
Page 12: Settings Of The Encoding Switches
A bidirectional programming process in the Lumo-868 can be cancelled by pressing the STOP button for 6 seconds. Settings of the encoding switches In the delivery condition (factory settings), all 4 encoding switches are in the position "Off ". Settings of the 4 encoding switches Setting mode for threshold "Sun"... -
Page 13: Function Light Sensor
"Light sensor off " • Operating mode "Test" Pushing the UP button for at least 6 seconds: The settings of the Lumo-868 can be reviewed. The test mode is active for a duration of 5 minutes and then ended automatically. -
Page 14: Settings Within An Operating Mode
(threshold exceeded) deactivated (threshold undercut) Yellow threshold corresponds to actual value Important: The setting is slightly infl uenced by the brightness value in the room and the housing lid. Adjust the encoding switch as follows: Ⓒ elero GmbH 14 | EN... -
Page 15: Setting Sun Threshold (Encoding Switch 1)
The light function is switched off Level 1 Moving down the roller shutter when there is little light already Level 7 Factory settings Level 15 Moving down the roller shutter only when there is lots of light Ⓒ elero GmbH EN | 15... -
Page 16: Setting Twilight Threshold (Encoding Switch 2)
The twilight threshold controller is pre-set to position 0 in the factory. It can be set with the enclosed screwdriver from "darkness" (position 1) to "early twilight" (position 15). Position 0 deactivates the twilight function. Ⓒ elero GmbH 16 | EN... -
Page 17: Encoding Switch Setting For Regular Operation
The roller shutter will not automatically move back to the top end position - via the Lumo-868. The roller shutter must be manually opened with the UP button at the Lumo-868, a timer or another programmed radio transmitter. 2.8.5 Encoding switch setting for regular operation... -
Page 18: Glass Breakage Mode (Encoding Switch 3)
Encoding switch Switches 1, 2 to 4 OFF 3: ON Through the positioning, you can adjust the sensitivity of the glass breakage sensor. Sensitivity setting of the glass breakage function depending on alignment High Ⓒ elero GmbH 18 | EN... -
Page 19: No Function (Encoding Switch 4)
In order to achieve a high sensitivity of the glass breakage sensor, mount the Lumo-868 so that the script is horizontal (in parallel with the window sill). A low sensitivity can be reached by attaching it swapped by 180° (elero script upside-down). -
Page 20: Cleaning And Maintaining The Lumo-868
• Unauthorised changes may damage the Lumo-868 and violate the provisions applicable to radio devices. • Do not drop the Lumo-868, do not expose it to impacts or shock and do not shake it. Rough handling may damage the electronic circuits and mechanical parts in the Lumo- 868. - Page 21 Notes on the EC declaration of conformity elero GmbH hereby declares that the Lumo-868 complies with the basic prerequisites and the other relevant provisions of the EC directives (2014/53/EU). The complete declara- tion of conformity can be found in the download area of our website www.elero.com/downloads-service/...
- Page 22 Fault Cause Remedy The roller 1. The Lumo-868 1. Concurrent shutter doesn’t is in manual operation of the move down mode UP and DOWN when sun is (sensor off ). buttons until the shone on the status display sensor. lights up green.
- Page 23 Details on this are provided for by the respective national law. Ⓒ elero GmbH EN | 23...
- Page 24 The icon on the product, the operating instructions or the packaging refers to these provisions. Reuse, recycling or other forms of use of old devices or batteries make an important contribution to protect our environment. Ⓒ elero GmbH 24 | EN...
