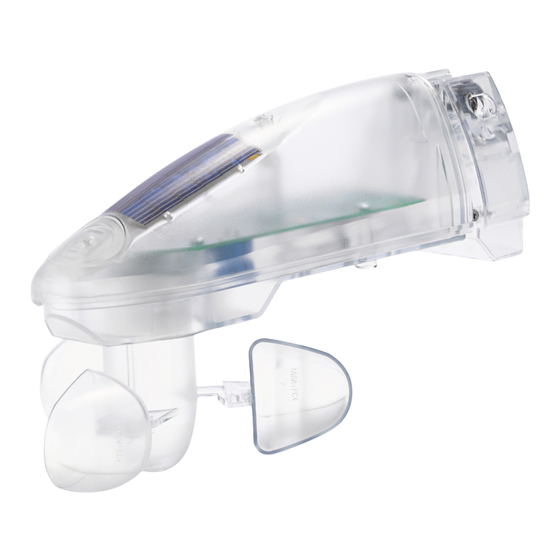

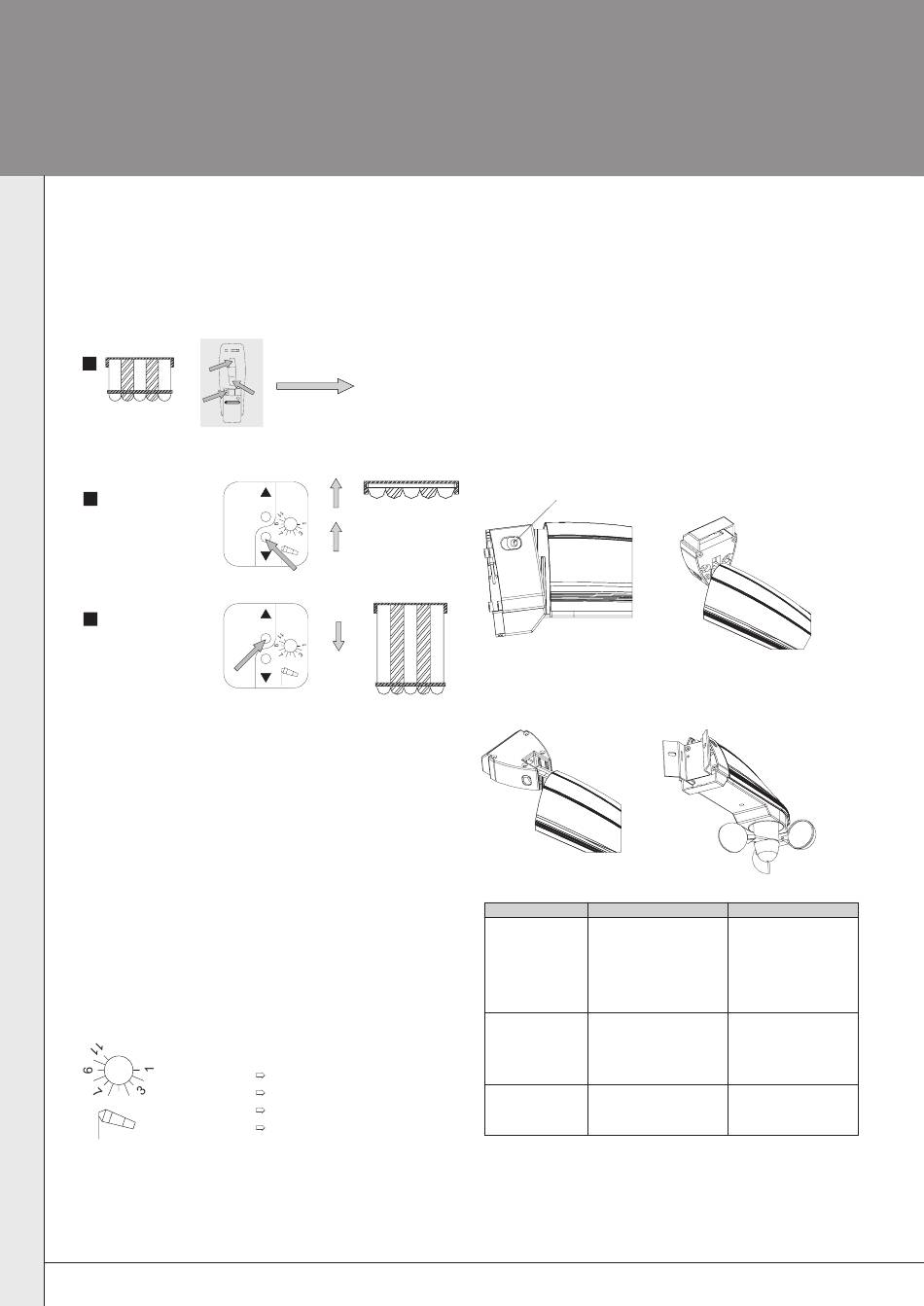

elero Ventero-868 Operating Instructions

Commissioning

Condition:
The end positions of the awning have been set, a transmitter has
been taught, and the Ventero-868 has been loaded (LED flashes
when a key is pressed)
Start teach mode
1.
elero
"Teach-in" programmed transmitter.
Press the "UP"
2.
(wind symbol)
key immediately
after the start of
upward travel.
Press the "DOWN"
3.
(sun symbol) key
immediately after
the start of
downward travel.

Checking the function

1. Retracting the awning using the manual transmitter.
2. Set the multiple contact switch for the wind value
(at the bottom of the device) to setting 1.
3. Turn the wind vane several times.
The awning will retract.
4. Set the multiple contact switch for the wind value to the
required setting.

Setting the threshold values

Multiple contact switches for wind and sun are located at the
underside of the Ventero-868. The switch has several settings,
which can be modified with a small screwdriver.
Wind
Setting 1
Setting 2 to 10
5
Setting 4
Setting 11
www.elero.com
20
Awning runs
min. 3 sec.
up and down
for 2 minutes.
STOP
5
5
STOP
Retract at low wind speed
Intermediate levels
Factory setting
Retract at high wind speeds

Maintenance

The Ventero-868 is maintenance-free, although the cover should be
cleaned occasionally in order to prevent impairment of the light
sensing function.

Assembly

Before installing the unit at the required position, check the proper
function of the Ventero-868 and the receiver.

Ventero-868 mounting options

The wall bracket can be swivelled between -5° and 180°. Secure the
required position once it has been set (see screw a).
a
Wall bracket
rotated 180°
Fault Cause
• Awning • Wind alarm
automatically
retracts in
manual mode
• Ventero-868 is not loaded • Load Ventero-868
• Poor radio connection
• No travel • Wind alarm is active
command can be • Battery in the manual
issued via the transmitter is dead
manual • Motor has no power
transmitter supply or is overheated
• Awning does not • Wind threshold value
retract in windy is set incorrectly
conditions • Wind vane is faulty
We reserve the right to make technical changes 10/04
Wall bracket
rotated 90°
Mast and corner mounting
(Aero, Aero-868)
Optional accessory
(Article no. 24 269,0201)
Trouble shooting
• Wait for wind interlock
to be deactivated
(15 min.) or briefly
interrupt power supply.
• Change the position
of the Ventero-868
• Wait (15 minutes)
• Change battery
• Set correct value
18 115.0101
