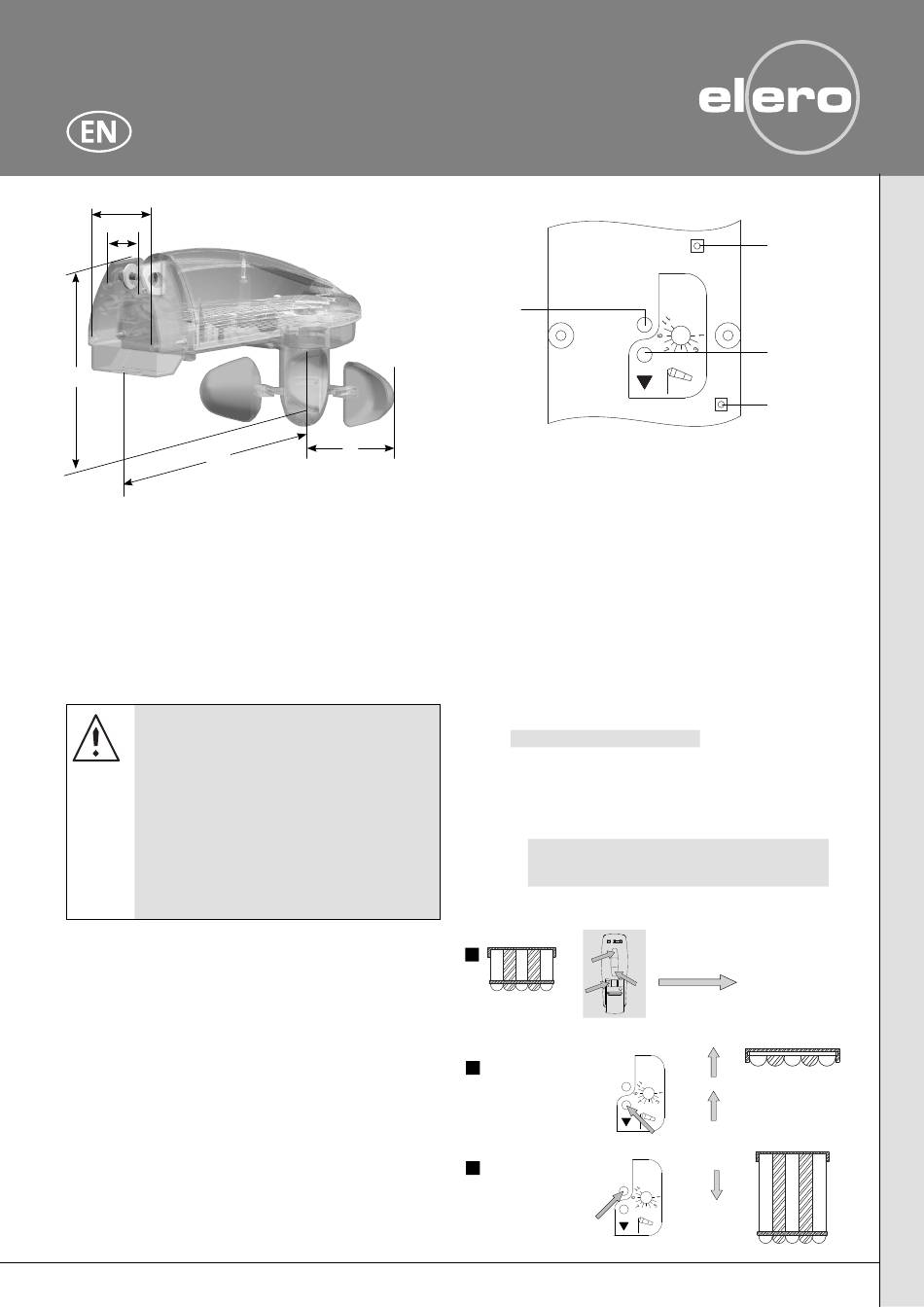

Ventero-868 Operating instructions
28 190.0002
66
35
135
200

General information

The Ventero-868 is a wireless-operated wind control device for
your awning.
Integrated solar cells enable autonomous function of the device.
Radio signals (frequency 868.3 MHz) are transmitted between the
Ventero-868 and the motor.
The awning can be operated manually via a manual/wall
transmitter.

Safety instructions

Important safety instructions!
Observe the following instructions.
• Only use unmodified original elero electrical parts.
Warning!
• Keep persons away from the operating range of the
system.
• Keep children away from the controls.
• Follow the relevant country-specific regulations.
• If one or more devices are used for controlling the
system, the operating range must stay visible during
operation.
• The device contains swallowable small parts.

Intended use

The Ventero-868 may only be used for controlling roller shutter,
awning and blind systems.
Third-party devices should only be connected after consultation
with your specialised dealer.
• Please ensure that the radio installations are not operated in
areas of heightened possible interference.
(e.g. hospitals, airports...).
• The remote control is only approved for devices and systems
for which any malfunction of the manual transmitter or receiver
would not result in a risk for persons, animals or property, or if
such a risk is covered by other safety devices.
• The operator has no protection whatsoever from interferences
by other radio emitters and local terminals (e.g. also from radio
Installations), that are normally used on the same frequency
range.
• Only use radio receivers with equipment and units approved by
the manufacturer.
DOWN-
button
80

Device function

The wind speed is measured at intervals and compared with the
set value.
Wind value above set value → Awning retracts or remains
The wind function is always active.
However, in the event of a wind alarm, the keys are disabled for
15 minutes.

Charging the Ventero-868

The Ventero-868 is supplied in discharged condition.
1. Prior to commissioning, load the Ventero-868 for at least
minimum 30 minutes under a lamp or press the travel key for
at least 1 minute.
Advice: the travel keys have two settings.
The first setting transfers energy from a built-in cell to the
energy store.
The second setting activates the travel command.

Programming Ventero-868

Condition: The end positions of the awning have been set,
Start programming mode
1.
Press the " UP "
2.
(wind symbol)
button immedi-
ately after the
start of upward
travel.
Press the
3.
" DOWN " button
immediately
after the start
of downward
travel.
5
retracted and is blocked for
around 15 min. (red LED flashes)
a transmitter has been taught, and the Ventero-868
has been loaded (LED flashes when a key is
pressed).
min. 3 sec.
elero
„Teach-in" programmed transmitter.
STOP
5
5
STOP
181150001_EN_0113
green LED
(transmit)
UP-button
(Wind symbol)
red LED
(Wind value)
Blind/shutter
runs up and
down for
2 minutes.
