P R A C T I C A L I N F O R M A T I O N

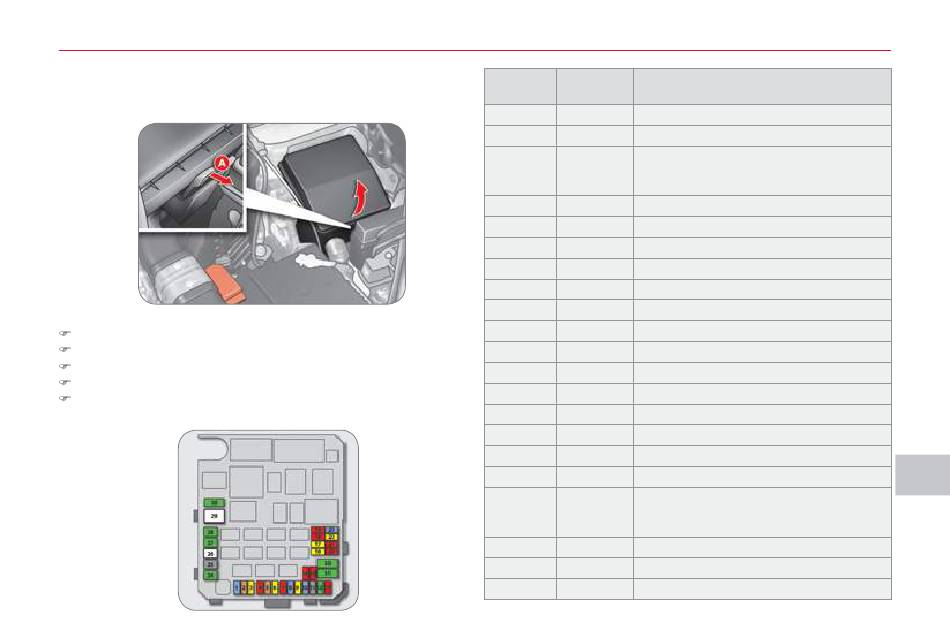

Engine compartment fuses
The fusebox is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses
Open the bonnet (refer to the "Access" section),
Press on the hook A to release the catch,
Remove the cover completely,
Change the fuse (refer to the corresponding paragraph),
When you have fi nished, close the cover carefully to
ensure sealing of the fusebox.
https://www.automotive-manuals.net/
Fuse
Rating
N°
1
15 A
Front foglamps.
2
7 A
Engine ECU 2.4 litre 16 V
CVT automatic gearbox ECU, CVT
3
20 A
automatic gearbox relay
4
10 A
Horn.
5
7.5 A
Alternator 2.4 litre 16V
6
20 A
Headlamp wash.
7
10 A
Air conditioning.
8
15 A
Engine ECU 2.4 litre 16 V
9
-
Not used.
10
15 A
Demisting, wipers.
11
-
Not used.
12
-
Not used.
13
-
Not used.
14
10 A
Left-hand main beam headlamp.
15
10 A
Right-hand main beam headlamp.
16
20 A
Left-hand dipped beam headlamp (xenon).
17
20 A
Right-hand dipped beam headlamp (xenon).
Left-hand dipped beam headlamp,
18
10 A
manual and automatic headlamp
adjustment.
19
10 A
Right-hand dipped beam headlamp.
20
-
Not used.
21
10 A
Ignition coils
Functions
IX
149
