CITROEN C-ZERO Handbook
  1. Manuals
  2. Brands
  3. CITROEN Manuals
  4. Automobile
  5. C-ZERO
  6. Handbook

CITROEN C-ZERO Handbook

Hide thumbs Also See for C-ZERO:
Table of Contents

Advertisement

Quick Links

C-
ZERO
HANDBOOK
https://www.automotive-manuals.net/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-ZERO and is the answer not in the manual?

Questions and answers

Related Manuals for CITROEN C-ZERO

Summary of Contents for CITROEN C-ZERO

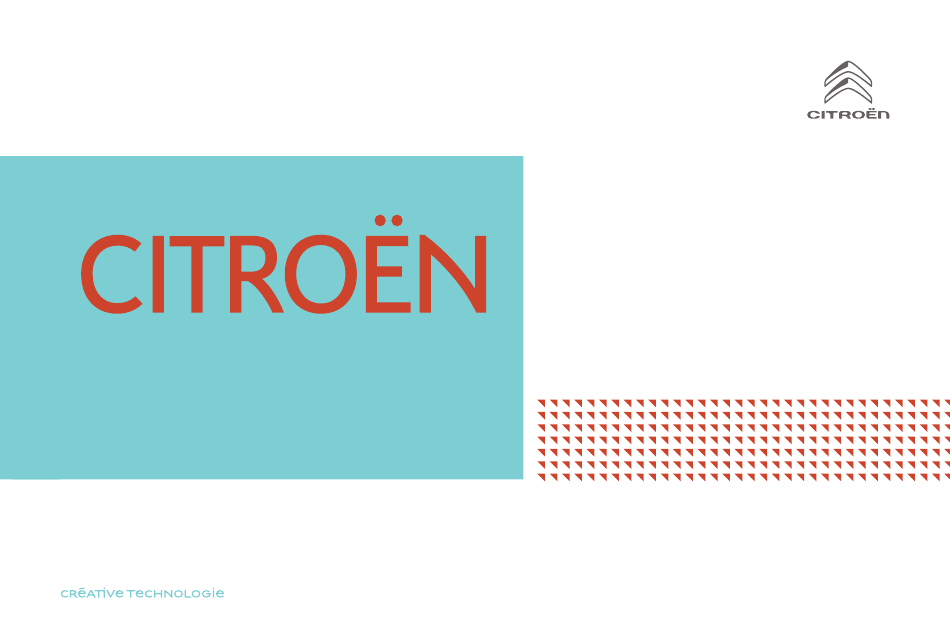

  • Page 1 ZERO HANDBOOK https://www.automotive-manuals.net/...
  • Page 2 Access to the Handbook The Handbook is available on the CITROËN website, in the "MyCitroën" section or at the following address: http://service.citroen.com/ddb/ Select: - the language, From the appropriate Store, download the Scan - the vehicle, its body style, MyCitroën smartphone application.
  • Page 3 Welcome Thank you for choosing a Citroën C-Zero. In this document you will find all of the instructions and recommendations on use that will allow you to enjoy your vehicle to the This document presents the information and recommendations required fullest.
  • Page 4 Contents Overview Access Lighting and visibility Lighting control stalk Remote control key Doors Headlamp beam height adjustment Boot Wiper control stalk Courtesy lamp Electric windows Eco-driving Charging flaps Dashboard instruments Instrument panel Ease of use and comfort Safety Warning and indicator lamps Main battery state of charge indicator Front seats General safety recommendations...

  • Page 5: Table Of Contents

    Contents Audio equipment and telematics In the event of a breakdown Driving Driving recommendations Ancillaries battery Bluetooth ® audio system Temporary puncture repair kit KENWOOD – KDC-X7000DAB Starting-switching off the vehicle Spare wheel Parking brake Drive selector Changing a bulb Changing a fuse Tyre under-inflation detection Towing the vehicle...
  • Page 6 Overview Instruments and controls Interior rear view mirror 12 V accessory socket Electric window controls Drive selector Opening of the charging flaps USB player Parking brake Audio system Ventilation Heating Manual air conditioning Automatic air conditioning Windscreen demisting/defrosting Rear screen demisting/defrosting Bonnet release https://www.automotive-manuals.net/...
  • Page 7 Overview Instruments and controls (continued) Instrument panel Ignition switch, starting/ switching off the vehicle Warning and indicator lamps Indicators: - main battery state of charge indicator - energy consumption/generation indicator Horn - speedometer - total distance recorder - trip distance recorder - lighting dimmer - service indicator - range indicator...
  • Page 8 Eco-driving For driving more sudden movements and, if the conditions allow, Excessive use reduces the range of your try to drive at a steady and moderate speed. vehicle significantly. Consider switching them economically and greater off as soon as you have reached the desired range level of comfort and check the settings at every start.
  • Page 9 Dashboard instruments Instrument panel Display screen management button. Warning and indicator lamps Displays the different functions Panel that brings together the different dials successively. Visual identifiers informing the driver that and vehicle operation indicator lamps. Resets the selected function to zero (trip a system is in operation, switched off (on/ distance recorder or service indicator).
  • Page 10 Dashboard instruments Warning lamps Operation indicator lamps The lighting of one of the following indicator When the engine is running or the vehicle is lamps confirms that the corresponding system being driven, the lighting of one of the following is on. warning lamps indicates a fault which requires This may be accompanied by an audible signal.
  • Page 11 Dashboard instruments Warning/indicator lamp State Cause Action/Observations Red warning/indicator lamps Main battery Fixed. The main battery is being The lamp goes out once charging is complete. charge (normal or charged. fast) Flashing. The recharging cable is Check the recharging cable connection. connected to the vehicle's socket, but the main battery is not being charged.
  • Page 12 Dashboard instruments Warning/indicator lamp State Cause Action/Observations Door(s) open/Boot Fixed, accompanied A door or the boot is still open. Close the door or boot. open by an audible signal. Parking brake Fixed. The parking brake is applied or Release the parking brake to switch off the warning not properly released.
  • Page 13 Dashboard instruments Warning/indicator lamp State Cause Action/Observations Dynamic stability Flashing. Activation of the DSC/ASR The systems optimise traction and allow improved control and anti- systems. directional stability of the vehicle. slip regulation Adapt your driving style and moderate your speed. (DSC/ASR) Fixed.
  • Page 14 Dashboard instruments Warning/indicator lamp State Cause Action/Observations Under-inflation Fixed. The pressure in one or more of Check the pressure in the tyres as soon as possible. the tyres is too low. This check should preferably be carried out when the tyres are cold.
  • Page 15 Dashboard instruments Warning/indicator lamp State Cause Action/Observations Green warning/indicator lamps Ready Fixed, accompanied by The vehicle is ready to drive, you can The lamp stays on as long as the vehicle is (ready to drive) an audible signal when operate the accelerator now. powered up.
  • Page 16 Dashboard instruments Main battery state of Display of this warning lamp Energy consumption in the instrument panel: charge indicator progressive reduction in available engine power. Display Energy consumption/ generation indicator System informing the driver of the level of The needle moves to the right, in proportion to energy consumption or generation by the main the consumption of energy by the vehicle.
  • Page 17 Dashboard instruments "Charge" zone The needle moves to the left, in proportion to the level of charge going into the main battery, Press button A to display the desired trip. during periods of deceleration and braking. Press button A. The total distance appears in the display. In cold weather, the capacity to regenerate through braking is reduced.
  • Page 18 Dashboard instruments Lighting dimmer Service indicator Operation System that allows the brightness of the System which informs the driver when the instruments and controls to be adjusted next service is due, in accordance with the manually to suit the ambient light level. manufacturer's servicing schedule.
  • Page 19 Dashboard instruments Resetting the service indicator Under-inflation detection You must reinitialise the under-inflation After each service, the service indicator must detection system after adjusting one or more be reset to zero. tyre pressures and after changing one or more wheels. The procedure for resetting to zero is as The distance “---”...
  • Page 20 Dashboard instruments Choice of set of tyres fitted Range indicator If you have registered a second set of tyres with sensor, after every change, select the corresponding set in the instrument panel display screen. This function provides you with an estimated range that your vehicle can still travel, taking into account your recent conditions of use (driving style, use of heating, air conditioning,...
  • Page 21 Access Remote control key The door mirrors unfold at the same time Locking is confirmed by the direction indicators (depending on version). flashing once. System used to lock or unlock the vehicle's The door mirrors fold at the same time central locking system with a key or remotely.
  • Page 22 Access Remote control problem Lost keys Anti-theft protection See a CITROËN dealer with the vehicle Do not make any modifications to the electronic In the event of a fault with the remote control, registration certificate and your ID. vehicle immobiliser system; this could cause you can no longer unlock or lock your vehicle.
  • Page 23 Access F Pull the front or rear door control to open Doors The front and rear passenger door buttons the door. lock/unlock only the corresponding door. Opening If the doors are locked: opening the driver's door unlocks the other From outside doors, the front passenger door or the rear doors must first be manually unlocked using the...
  • Page 24 Access Closing Automatic mode (driver's side) F Press the control beyond the point of resistance to open. The driver's window opens fully when the control is released. F Pressing the control again stops the movement of the window. The electric window controls remain operational for approximately 30 seconds after switching off the ignition.
  • Page 25 Access F Pull control A in the lower part of the F Pull control C under the driver's seat, near Always remove the key from the ignition dashboard, driver's side, to unlock the the door, to unlock the access flap. when leaving the vehicle, even for a short access flap.
  • Page 26 Ease of use and comfort Front seats Adjusting the height of the head Never drive with the head restraints restraint removed and in the vehicle, they may Manual adjustments become projectiles in severe braking situations - they must always be in place and properly adjusted.
  • Page 27 Ease of use and comfort Rear seats Adjusting the seat backrest When the seat and passenger angle compartment have reached an adequate Bench seat consisting of two adjustable and temperature, you can switch off the foldable backrests and a fixed seat cushion. function;...
  • Page 28 Ease of use and comfort Folding the backrest Returning the backrest to the normal position Mirrors Door mirrors Adjustment Place the head restraints in the low position or remove them if necessary. F Put the seat backrest in the upright position and lock it in place.
  • Page 29 Ease of use and comfort Interior fittings Electric door mirror folding/ Rear view mirror unfolding (Depending on version.) Adjust the rear view mirror by moving it upwards, downwards and/or to the left or right. The rear view mirror has two positions: day (normal), night (anti-dazzle).
  • Page 30 Ease of use and comfort Open storage compartment 12 V accessory socket Mats USB player Door pocket Sun visor F To connect a 12 V accessory (max. power: 120 W), lift the cover and connect a suitable adaptor. To take out the driver's side mat, move the seat back as far as possible and remove the fixings.
  • Page 31 Ease of use and comfort USB player Ventilation Air distribution System which creates and maintains good conditions of comfort and visibility in the vehicle's passenger compartment. Air intake The air circulating in the passenger compartment is filtered and originates either This USB port allows the connection of a from the outside via the grille located at the portable device, such as an iPod...
  • Page 32 Ease of use and comfort Recommendations for ventilation and air conditioning The heating and air conditioning operate using the energy supplied by the main F Ensure that the passenger compartment In order for these systems to be fully effective, battery. Their use increases the vehicle's follow the operation and maintenance filter is in good condition and have the consumption of electrical energy and...
  • Page 33 Ease of use and comfort central and side vents, Heating Temperature adjustment Adjustments can be made manually or F Turn the dial to the right to automatically. central, side and footwell vents, raise the temperature and to the left to lower it. footwells, When the dial is positioned on "●", the fan air will be at exterior temperature.
  • Page 34 Ease of use and comfort The recirculation of interior air isolates the Air conditioning Temperature adjustment passenger compartment from exterior odours and smoke. Adjustments can be made manually or F Turn the dial to the right to Return to exterior air intake as soon as possible automatically.
  • Page 35 Ease of use and comfort central and side vents, Return to exterior air intake as soon as possible Air conditioning on/off to prevent deterioration of the air quality and the formation of mist. The air conditioning is designed to central, side and footwell vents, operate efficiently in all seasons, F Press this button to recirculate with the windows closed.
  • Page 36 Ease of use and comfort Front demist – defrost Rear screen demist – Switch off the demisting/defrosting of defrost the rear screen and door mirrors as soon as appropriate in order to control Place the air distribution the vehicle's electrical consumption and adjustment control in this position.
  • Page 37 Ease of use and comfort Buttons Display screen On/Off Extend the aerial. Press and hold this button to switch the remote control on or off. The remote control will switch off automatically if no action takes place within thirty seconds. Charge start programming On/off, data transmission.
  • Page 38 Ease of use and comfort Thermal comfort If the charge start is programmed without If the charge duration is programmed programming programming the charge duration, the without programming the start time, the battery will be charged fully. battery will be charged immediately for This function is used to programme the running a duration corresponding to the one of the:...
  • Page 39 Ease of use and comfort Demisting: running the demisting/ Function activation Changing batteries defrosting of the rear screen and Switch on the remote control. the door mirrors (depending on Battery type: CR2032 Press the MODE button to select the thermal version), the ventilation and heating Unclip the case and change the two batteries.
  • Page 40 Ease of use and comfort Malfunctions Remote control Warning/ State Causes Action/Observations indicator lamp Flashes within approximately ten seconds There is a malfunction. Switch the remote control off and then on after switching on the remote control. again. Flash within approximately one second Electrical interference is preventing the Move away from the interference sources.
  • Page 41 Ease of use and comfort Charge programming Warning/ State Causes Action/Observations indicator lamp Flash for a few seconds. The charging cable is not connected Check the cable. properly. There is a problem with your electrical Have it checked by a qualified electrician. installation.
  • Page 42 Lighting and visibility Lighting control stalk Selection ring for main Headlamp dipping stalk lighting mode Main lighting The various front and rear lamps of the vehicle are designed to adapt the lighting gradually to the climatic conditions and thus give the driver better visibility: sidelamps, to be seen, dipped beam headlamps to see without...
  • Page 43 Lighting and visibility Front and rear foglamps The ring automatically returns to its initial Direction indicators position. (flashing) The rear foglamp switches off automatically when you switch off the sidelamps and dipped or main beam headlamps. It is prohibited to switch on the front or rear foglamps in fine weather or in rain, night or day.
  • Page 44 Lighting and visibility Automatic illumination/ Headlamp beam height Wiper control stalk switching off of the headlamps adjustment Automatic illumination When the lighting control stalk ring is in the AUTO position, the sidelamps and dipped beam headlamps are switched on automatically, without any action on the part of the driver, when a low level of ambient light is detected.
  • Page 45 Lighting and visibility Windscreen wipers Rear wiper Courtesy lamp Wiping speed control lever: raise or lower the lever to the desired position. Single wipe. Off. Intermittent (manually adjustable speed). Position 1 "ON" Slow. Rear wiper selection ring. The courtesy lamp is permanently on. Fast.
  • Page 46 Lighting and visibility Position 3 "OFF" The courtesy lamp is permanently off. Before leaving the vehicle, check that the courtesy lamp is not still on. If it remains permanently on, it will discharge the ancillaries battery even if the main battery is charged or charging. It will then no longer be possible to start the vehicle.
  • Page 47 Safety General safety We draw your attention to the following Installation of accessory radio recommendations points: communication transmitters The fitting of electrical equipment Before installing a radio communication or accessories not listed by transmitter, you must contact a CITROËN CITROËN may cause excessive dealer for the specification of transmitters current consumption and faults and which can be fitted (frequency, maximum...
  • Page 48 Safety Hazard warning lamps Horn The horn sounds when the vehicle speed is between 0 and 22 mph (35 km/h), Deactivation In certain driving conditions you can deactivate the system. Press this button. F When you press this red button, all four direction indicators flash.
  • Page 49 Safety Emergency or assistance expressly declined, the call is sent directly Operation of the system to the emergency services (112) without the call vehicle location. When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
  • Page 50 Safety The cancellation is confirmed by a voice Anti-lock braking system For technical reasons and in particular to message. and electronic brake force improve the quality of telematic services to distribution Geo-location customers, the manufacturer reserves the right to carry out updates to the vehicle's Linked systems which improve the stability and on-board telematic system.
  • Page 51 Safety Emergency braking assistance Activation The warning lamp comes on for a few seconds when switching on (ON position). These systems are activated automatically System which, in an emergency, enables you If it does not go out or come on, contact a every time the vehicle is started.
  • Page 52 Safety Engine brake reduction Excessive wheel slippage may damage Although the ASR/DSC systems help indicator lamp the differential of your vehicle. improve safety in normal driving, they should not encourage the driver to take extra risks or drive at high speed. The risk of loss of traction increases in Reactivation conditions of reduced grip (rain, snow,...
  • Page 53 Safety Fastening Within one minute after switching on the The braking power is never reduced while ignition, if the driver does not fasten their seat the indicator lamp is flashing. belt, this warning lamp flashes, accompanied by an intermittent audible signal. After about 90 seconds, the warning lamp and the audible signal will go off, then come on Seat belts...
  • Page 54 Safety Fastening F Pull the strap then insert the tongue in the buckle. F Check that the seat belt is fastened correctly by pulling the strap. Unfastening F Press the red button on the buckle. Seat belt unfastened warning lamps Rear right seat belt warning lamp.
  • Page 55 Safety Advice The driver must ensure that passengers use In order to be effective, a seat belt: Instructions for children the seat belts correctly and that they are all Must be tightened as close to the body as Use a suitable child seat, if the passenger is restrained securely before setting off.
  • Page 56 Safety Airbags Impact detection zones Front airbags The airbags are designed to help enhance the safety of occupants in the event of a serious collision. They complement the action of the safety belts equipped with force limiters. If a collision occurs, the electronic detectors record and analyse the front and side impacts sustained in the impact detection zones: if there is a violent impact, the airbags...
  • Page 57 Safety Malfunction Deployment Deployment Each curtain airbag is deployed at the same If this warning lamp comes on in the A lateral airbag is deployed unilaterally in the time as the corresponding lateral airbag in the instrument panel, contact a CITROËN event of a severe side impact applied to all or event of a serious side impact applied to all or dealer or a qualified workshop without...
  • Page 58 Safety Advice For the airbags to be fully effective, Front airbags Curtain airbags observe the safety recommendations Do not drive holding the steering wheel by its Do not attach anything or hang anything to below. spokes or resting your hands on the centre the roof, as this could cause head injuries Adopt a normal and upright sitting position.
  • Page 59 Safety General points relating to Child seat at the rear When a "forward facing" child seat is installed on a rear passenger seat, move the vehicle's child seats "Rearward facing" front seat forward and straighten the backrest so that the legs of the child in the forward The regulations on carrying children are facing child seat do not touch the vehicle's front specific to each country.
  • Page 60 Safety Child seat at the front "Forward facing" "Rearward facing" Passenger seat adjusted to the intermediate longitudinal position. Deactivating the passenger's front airbag Never install a rearward facing child restraint system on a seat protected by an active front airbag. This could cause the death or serious When a "forward facing"...
  • Page 61 Safety Deactivation To ensure the safety of your child, the passenger's airbag must be deactivated Only the passenger's front airbag can be when you install a "rearward facing" child deactivated. seat on the front passenger seat. Otherwise, the child would risk being seriously injured or killed should the airbag be deployed.
  • Page 62 Safety НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. Това може да причини СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето. NIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ. Brug ALDRIG en bagudvendt barnestol på...
  • Page 63 Safety Qatt m’ghandek thalli tifel/tifla marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifla Plaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de airbag kan het KIND LEVENSGEVAARLIJK GEWOND RAKEN Installer ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE, BARNET risikerer å...
  • Page 64 Safety Recommended child seats Installing a child seat attached with the seat belt Range of recommended child seats which are In accordance with European regulations, this table indicates the options for installing child seats secured using a three-point seat belt. secured using a seat belt and universally approved (a) according to the weight of the child and the seating position in the vehicle.
  • Page 65 Safety When a rearward facing child seat is ISOFIX mountings installed on the front passenger seat, it is essential to deactivate the passenger’s Your vehicle has been approved in accordance with the latest ISOFIX regulation. airbag. Otherwise, the child would risk being seriously injured or killed if the The seats shown below are fitted with ISOFIX compliant mountings:...
  • Page 66 Safety To secure the child seat to the TOP TETHER: pass the child seat strap over the centre of "RÖMER Baby-Safe Plus and its ISOFIX "RÖMER Duo Plus ISOFIX" the vehicle's seat backrest, base" (size category: B1) (size category: E) lift the TOP TETHER cover, secure the upper strap fixing to the ring B, tighten the upper strap.
  • Page 67 Safety Summary table of ISOFIX child seat locations In line with European regulations, this table indicates the options for installing ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings. In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child seat next to the ISOFIX logo.
  • Page 68 Safety Advice on child seats For optimal installation of the "forward facing" Installing a booster seat The incorrect installation of a child seat in a vehicle compromises the child's protection in child seat, verify that its backrest is as close The chest part of the seat belt must be positioned on the child's shoulder without the event of an accident.
  • Page 69 Safety Child lock Mechanical system to prevent opening of a rear door using its interior control. The control is located on the edge of each rear door. Locking F Move control A down to position 1. Unlocking F Move control A up to position 2. https://www.automotive-manuals.net/...

  • Page 70: Driving

    Driving Driving recommendations Driving on flooded roads Starting-switching off the vehicle Observe the driving regulations and remain We strongly advise against driving on flooded vigilant whatever the traffic conditions. Ignition switch roads, as this could cause serious damage Pay close attention to the traffic and keep your to the motor or gearbox, as well as to the hands on the steering wheel so that you are electrical systems of your vehicle.

  • Page 71: Parking Brake

    Driving Starting Parking brake Drive selector F Check that the drive selector is in position P. Application Selector positions F Insert the key in the ignition switch. F Turn the key to position 4 (START). F Hold the key in that position for a few seconds until the "READY"...

  • Page 72: Tyre Under-Inflation Detection

    Driving Tyre under-inflation F Take your foot off the brake pedal, and the Starting the vehicle vehicle will move at a low speed to make detection manoeuvring easier. F Accelerate to move forward or backward. System which automatically checks the F "D"...
  • Page 73 Driving Under-inflation alert This system still requires you to check the The alert persists until the reference pressure values are reinitialised once the tyre inflation pressure every month as well This is indicated by the fixed as before a long journey. tyre or tyres concerned are reinflated, illumination of this warning lamp.
  • Page 74 Driving Malfunction Any tyre repair or replacement on a wheel fitted with this system must be carried The flashing and then fixed out by a CITROËN dealer or a qualified illumination of the under-inflation workshop. warning lamp indicates a fault with If you fit the second set of tyres stored the system.
  • Page 75 Driving F Press button A to select the system. F Press button A and hold it down for more than 10 seconds to move from tyre set 1 to tyre set 2 in succession or vice versa. The system resets the reference pressure automatically based on the pressure noted in the new set (the under-inflation detection lamp flashes during the...

  • Page 76: Practical Information

    Practical information TOTAL & CITROËN PARTNERS IN THE FUTURE OF THE AUTOMOBILE The TOTAL and CITROËN teams combine their talents to optimise energy efficiency and reduce the impact on the environment. The partnership between our two groups on an international scale does not just come down to producing and maintaining mainstream vehicles: our positions as industrial leaders allow us to meet the environmental challenges of today and tomorrow.

  • Page 77: Recharging The Main Battery

    Practical information Recharging the main Before making any connection, check that battery the electrical installation that you want to use meets standards* and is compatible Two types of charging are available: normal or with the amperage of your control unit. fast.
  • Page 78 Practical information F Take the charging cable stored in the bag Do not touch the metal adaptor of the supplied for this purpose. This cable is normal charging socket, or that of the equipped with a control unit. charging cable (risk of electrocution and/ F Connect the charging cable to a compatible or malfunction).
  • Page 79 Practical information POWER: lit green. domestic power point is able to support and If, as an exception, you have to interrupt It indicates that the electrical connection is chooses the most suitable amperage for safe the charge by disconnecting the charging secured.
  • Page 80 Practical information As a safety measure, the motor will After removing the charging plug from To optimise the service life of the main not start when the charging cable is the vehicle's socket, do not leave the battery, recharge it completely every connected to the vehicle's socket.
  • Page 81 Practical information States of the control unit Flashing in the corresponding indicator Off. lamp colour. Lit in the corresponding indicator lamp colour. POWER FAULT CHARGING Normal operation Once the charging cable is connected to a power point, all of the lamps come on for about half a second. Once you have finished initialising: •...
  • Page 82 Practical information Use of a public charging point for normal charging Several types of electric socket can be used to charge your vehicle. Before beginning to charge the vehicle, use the following table to identify the type of socket and obtain the corresponding charging cable. Domestic socket "Mode 3 –...
  • Page 83 Practical information Fast charging Do not touch the metal adaptor of the fast charging socket, or that of the charging (Depending on equipment.) cable. Risk of electrocution and/or malfunctions. If you have a pacemaker or any other electric medical device, you must not use fast charging.

  • Page 84: Snow Chains

    Practical information Snow chains During fast charging, the vehicle's air After recharging, ensure that the socket conditioning may start up automatically, cover and access flap are closed. The snow chains must be fitted only to the rear if necessary, to cool the main battery. It Take care to avoid allowing water or wheels (rear wheel drive car).

  • Page 85: Bonnet

    Practical information Bonnet Avoid driving with snow chains on roads that have been cleared of snow, to avoid Protects and provides access to the front damaging your vehicle's tyres and the compartment components for checking various road surface. If your vehicle is fitted with fluid levels, charging the ancillaries battery, alloy wheels, check that no part of the changing fuses, etc.

  • Page 86: Front Compartment

    Practical information Closing Front compartment Rear compartment Located below the boot floor, this compartment provides access to the coolant reservoir. F Open the boot. F Take the support stay out of the support F Detach the adhesive strap securing the slot.

  • Page 87: Checking Levels

    Practical information If a level drops significantly, have the Front compartment corresponding system checked by a CITROËN Brake fluid level dealer or a qualified workshop. The brake fluid level should be between the "MIN" and "MAX" Never work in the compartments while marks.

  • Page 88: Checks

    Practical information Ancillaries battery electrolyte Rear compartment Passenger compartment filter level Coolant level Depending on the environment (e.g. dusty atmosphere) and the use of the vehicle (e.g. city driving), The level of this fluid must be replace it twice as often if between the "L"...

  • Page 89: Changing A Wiper Blade

    Practical information Parking brake Changing a wiper blade Washing precautions If excessive travel or a loss of Never wash the vehicle while the battery effectiveness of this system is Removing front or rear is on charge. noticed, the parking brake must wiper blades be checked, even between two services.

  • Page 90: In The Event Of A Breakdown

    In the event of a breakdown Ancillaries battery Access to the battery Starting using another battery F Open the bonnet using the interior release All of the electrical components on your vehicle lever and then the exterior safety catch. (with the exception of the electric motor, the Make sure the electrolyte is not frozen.
  • Page 91 In the event of a breakdown F Start the engine of the vehicle with the good Charging the battery using battery and wait for a few minutes. a battery charger F Operate the ignition switch of your vehicle until the "Ready" lamp comes on. F Remove the battery protective cover.

  • Page 92: Temporary Puncture Repair Kit

    In the event of a breakdown Temporary puncture Do not charge the battery without first repair kit disconnecting the terminals and removing the battery from the front compartment. Do not disconnect the terminals when the "Ready" lamp is on, nor when the vehicle is on charge.
  • Page 93 In the event of a breakdown F Insert the metal hooks into the bench seat Removing the rear seat Removing the metal cover plate backrest. F Tip the seat downwards and press to lock the two locks. F Check that the seat is locked properly. When refitting the seat, take care not to trap the seat belt buckles.
  • Page 94 In the event of a breakdown Repair procedure Sealing F Switch off the ignition. F Make a mark on the provided speed limit sticker to identify which wheel needs repairing, and affix it to the vehicle's steering wheel to remind you that a wheel is in temporary use.

  • Page 95: Spare Wheel

    In the event of a breakdown F Remove the injection hose. F Check that switch A of the compressor is in As soon as possible, go to a CITROËN F Replace the valve core using the tool. the "OFF" position. dealer or a qualified workshop.
  • Page 96 In the event of a breakdown Necessary tools A jack: used to raise the vehicle. A wheelbrace: for removing the wheel bolts. A handle: used to operate the jack. These tools are not supplied with your vehicle. F Extend the jack until its head comes into Wheel with trim F Place the foot of the jack on the ground contact with the jacking point A or B,...

  • Page 97: Changing A Bulb

    In the event of a breakdown Changing a bulb The headlamps have polycarbonate lenses with a protective coating: F do not clean them using a dry or abrasive cloth, nor with a detergent or solvent product, F use a sponge and soapy water or a pH neutral product, F when using a high pressure washer on persistent marks, do not keep the...
  • Page 98 In the event of a breakdown F Unscrew the mounting nut C until the head Front lamps Access to bulbs of the nut touches the trim. To replace a faulty bulb, you must first remove the lamp unit. To remove the lamp unit: F Open the bonnet.
  • Page 99 In the event of a breakdown Main beam headlamps Amber coloured bulbs must be replaced with bulbs of identical specification and colour. Sidelamps F Pull the lamp unit towards you and release F Turn the bulb holder to the left and pull it the tab F to remove it completely.
  • Page 100 In the event of a breakdown F Turn your wheels to full lock for easier Dipped beam headlamps Integrated direction indicator access. side repeaters (WY5W – 5 W) F Remove the clips retaining the bulb holder protective cover. F Move the cover aside. F Turn the bulb holder to the left and pull it out.
  • Page 101 In the event of a breakdown Rear lamps Access to bulbs Brake lamps/Sidelamps (21 W/15 W) F Remove the two screws. Brake lamps/Sidelamps (21 W/15 W or F Turn the bulb holder to the left and remove F Remove the headlamp unit by pulling it LEDs).
  • Page 102 In the event of a breakdown F Turn the bulb holder to the left and Direction indicators Third brake lamp (W5W – 5W) remove it. F Pull out the bulb and replace it. To refit, carry out these operations in reverse order.

  • Page 103: Changing A Fuse

    In the event of a breakdown F Turn the bulb holder and remove it. Changing a fuse Your vehicle's electrical system is F Remove the bulb and replace it. designed to operate with standard or To refit, carry out these operations in reverse optional equipment.
  • Page 104 In the event of a breakdown Fuses in the dashboard Fuse No. Rating Functions 7.5 A Front and rear left sidelamps. 15 A Accessory socket. Not used. 7.5 A Starter motor. 20 A Audio system. Not used. 7.5 A Dashboard consumers, front and rear right sidelamps. 7.5 A Electric door mirrors.
  • Page 105 In the event of a breakdown Fuses in the front Fuse No. Rating Functions compartment 15 A Rear wiper. 7.5 A Instrument panel. 7.5 A Heating. 20 A Heated seat. 10 A Option. 7.5 A Door mirrors defrosting. 20 A Windscreen wipers.
  • Page 106 In the event of a breakdown Access to the fuses Fuse No. Rating Functions F Open the bonnet. Not used. F Unclip the protective cover and remove it completely by pulling it towards you. 30 A Internal fuse. F Change the fuse. F When you have finished, close the cover 40 A Electric motor.

  • Page 107: Towing The Vehicle

    In the event of a breakdown Towing the vehicle Towing your vehicle General recommendations Observe the legislation in force in your Procedure for having your vehicle towed using country. a fixed towing eye. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.

  • Page 108: Technical Data

    Technical data Motor and main battery Model code: 1 N ZKY Z Electric motor Technology Synchronous with permanent neodymium magnets Max power: EU standard (kW) 4,000 to 8,800 Max power motor speed (rpm) Max torque: EU standard (Nm) 0 to 300 Max torque speed (rpm) Main battery Lithium-Ion...

  • Page 109: Weights

    Technical data Weights (in kg) Electric motor Main battery Lithium-Ion Model code: 1 N ZKY Z 1,065 Unladen weight 1,140 Kerb weight 1,450 Gross vehicle weight (GVW) 1,450 Gross train weight (GTW) Maximum load on the roof (including the roof bars weight) Your vehicle cannot be fitted with a towbar.

  • Page 110: Dimensions

    Technical data Dimensions (in mm) https://www.automotive-manuals.net/...

  • Page 111: Identification Markings

    Technical data Identification markings B. Tyre identification label. Never reduce the pressure of a warm tyre. This label is affixed to the centre pillar on the Various visible markings for the identification of driver’s side. your vehicle. It bears the following information: the tyre inflation pressures (in bars), the tyre specifications, Insufficient tyre pressure increases...
  • Page 112 https://www.automotive-manuals.net/...
  • Page 113 ® Bluetooth audio system ® Bluetooth audio system First steps On/Off, volume adjustment. Adjust audio options: sound ambience, treble, bass, loudness, distribution, left/right balance, front/ rear balance, automatic volume. Automatic search for a lower radio frequency. Select the previous CD, USB track. Contents After a battery disconnection, a code must Scroll in a list.
  • Page 114 ® Bluetooth audio system Select preset radio station. Entering a frequency The external environment (hills, buildings, Radio, press and hold: store a tunnels, basement car parks, etc.) may station. Press MENU. block reception, including in RDS tracking Other than radio: see the mode.
  • Page 115 ® Bluetooth audio system Select or deselect "RDS" to switch Displaying RADIO TEXT The system constitutes playlists (in RDS on or off. temporary memory), whose creation time can be from a few seconds to several Confirm with "OK" to save the Radio Text is information transmitted by minutes at the first connection.
  • Page 116 ® Bluetooth audio system Press one of these buttons to select CD player Return to the top level of the folder structure to the next or previous folder in the select the order of tracks. order chosen. Insert a CD in the player; play begins By Folders (CD or USB): all folders automatically.
  • Page 117 ® Bluetooth audio system It is recommended that the same recording Connecting Apple ® players The use of genuine Apple ® USB cables standard is always used for an individual disc, is recommended to ensure correct with as low a speed as possible (4x maximum) operation.
  • Page 118 Confirm with "OK". Press the MENU button. Select "Bluetooth". Only one telephone can be paired at a time. Visit www.citroen.co.uk for more information In some cases, the Bluetooth address of the (compatibility, more help, etc). Select "Manage connections" or "BT telephone may appear instead of the name of management"...
  • Page 119 ® Bluetooth audio system Select or deselect: Select the desired number. Confirm with "OK". "Tel.": hands-free connection "Audio": play audio files Press one of these buttons to go to the previous or next page in the list. Confirm with "OK" to start the call. "OK"...
  • Page 120 ® Bluetooth audio system Pressing and holding the back Combined/telephone mode SOUND DIST. (driver or passenger). button AUTO VOLUME. (to leave the vehicle without ending the call) In the contextual menu: The distribution, or spatialisation of sound, SRC/TEL also rejects an incoming is an audio process which allows the call.
  • Page 121 ® Bluetooth audio system Select "Version" for information on Frequently asked questions the software. The following information groups together the answers to the most frequently asked questions Select "System" when you want to concerning your audio system. install an update. Information can be obtained from a CITROËN dealer.
  • Page 122 ® Bluetooth audio system QUESTION RESPONSE SOLUTION There is a difference in sound quality between For optimum sound quality, the audio settings Check that the audio settings (volume, bass, the different audio sources (radio, CD, etc.). (volume, bass, treble, ambience, loudness) treble, ambience, loudness) are adapted to can be adapted to the different sound sources, the sources being listened to.
  • Page 123 ® Bluetooth audio system Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS Deactivate the RDS function if the phenomenon searches for any frequency permitting better is too frequent and always on the same route. reception of the station.
  • Page 124 ® Bluetooth audio system A telephone connects automatically, Automatic connection overrides manual Modify the telephone settings to remove disconnecting another telephone. connection. automatic connection. The iPod is not recognised when connecting to The iPod is of a generation that is not the USB port.
  • Page 125 KENWOOD - KDC-X7000DAB KENWOOD – KDC-X7000DAB Select an analogue band FM1/FM2/ FM3/MW/LW. Select a digital band DB1/DB2/DB3. Navigate in a list. Change the search method (automatic or manual). Short press: on. Short press: find a radio station, As a safety measure, the vehicle must Long press: off.
  • Page 126 https://www.automotive-manuals.net/...
  • Page 127 Alphabetical index CD, MP3 ............3-4 ABS and EBFD systems .........48 Door pockets ..........27-28 Doors ...............21 Accessories ............45 Changing a bulb ........95-96, 99 Changing a fuse ........101,104 Access to bulbs ........96, 99 Dynamic stability control (DSC) ......49 Changing a wheel ........93-95 Adjusting headlamps ........42 Adjusting head restraints ........24 Changing a wiper blade ........87...
  • Page 128 Alphabetical index Port, USB ..........29, 3-4 Headlamps, main beam ......13, 97 Level, heating system fluid ....... 85-86 Head restraints.......... 24-26 Level, screenwash fluid ......85-86 Power steering ..........11 Heating ..........29, 31-32 Pressures, tyres ........ 70-72, 109 Levels and checks ........84-86 Horn..............46 Lighting, automatic switching off ....42 Pre-tensioning seat belts ........53...
  • Page 129 Alphabetical index Warning and indicator lamps ....... 7-13 Service indicator ........16-17 Sidelamps ........... 13, 97, 99 Weights ............107 Wheel, spare ...........93, 109 Side repeater ..........98 Snow chains ............82 Window controls ..........22 Socket, 12 V accessory ......27-28 Wiper, rear............43 Speedometer ............7 Wiper blades (changing) .........87 Starting/switching off the vehicle ....
  • Page 130 https://www.automotive-manuals.net/...
  • Page 131 https://www.automotive-manuals.net/...
  • Page 132 https://www.automotive-manuals.net/...
  • Page 133 https://www.automotive-manuals.net/...
  • Page 134 https://www.automotive-manuals.net/...
  • Page 135 4Dconcept Xerox Automobiles CITROËN declares, by application of the provisions of the European legislation (Directive 2000/53) relating to End of Life Vehicles, that it achieves the objectives set by this legislation and that recycled materials are used in the manufacture of the products that it sells.
  • Page 136 *17.C0.0040* ANG. 17.C0.0040 https://www.automotive-manuals.net/...
