BGS technic 875 Manual

BGS technic 875 Manual

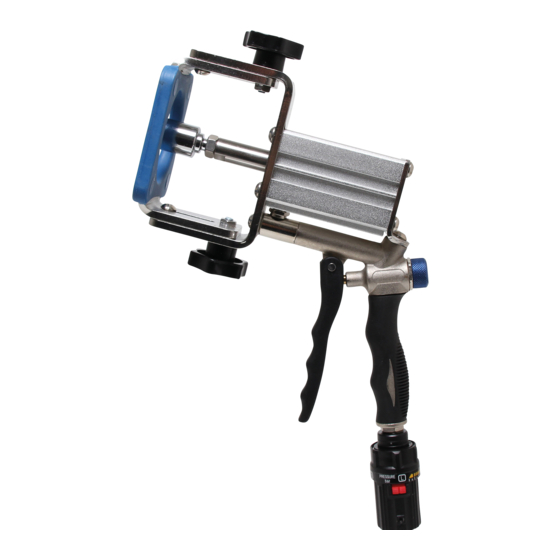

Air dent repair tool

Advertisement

Available languages

Available languages

SPEZIFIKATIONEN
Edelstahlfuss mit PVC-Schutz
Druckluft-Durchflussregelventil
Druckluftanschluss: 1/4"
Arbeitsdruck: 3 - 10 Bar
Geräuschentwicklung bei 6,3 Bar: LpA 66.5 db(A)
Vibration:
ahd 0,4 m/s²
K 0,53 m/s²
ALLGEMEIN
Das Druckluft-Ausbeulwerkzeug ist geeignet für die Reparatur von leichten Dellen.
Der Pneumatikzylinder hat eine Frontentlüftung, diese ermöglicht eine sanfte Bewegung des
Zugkolbens und bewirkt ein zusätzliches Abkühlen der Klebestelle.
ANWENDUNG
1. Reinigen Sie den Dellenbereich.
Wählen Sie ein passendes Klebe-Pad.
2.
Das Klebe-Pad muss zur Größe der Delle passen.
Platzieren Sie einen großen Tropfen Heißkleber auf das Klebe-
3.
Pad.
SW-Stahl und Werkzeugvertriebs GmbH
L
e
v
e
k r
u
s
r e
t S
a r
s
s
e
6
5
D
4 -
2
8
9
7
R
e
m
s
c
h
e
d i
Druckluft-Beulenauszieher
LwA 77,5 db(A)
Tel. +49 (0) 2191 / 46438-0
F
ax +49 (0) 2191 / 46438-40
- E
M
a
: l i
n i
o f
@
s
w
s
a t
l h
d .
e
Art. 875

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 875 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BGS technic 875

  • Page 1 Art. 875 Druckluft-Beulenauszieher SPEZIFIKATIONEN Edelstahlfuss mit PVC-Schutz Druckluft-Durchflussregelventil Druckluftanschluss: 1/4" Arbeitsdruck: 3 - 10 Bar Geräuschentwicklung bei 6,3 Bar: LpA 66.5 db(A) LwA 77,5 db(A) Vibration: ahd 0,4 m/s² K 0,53 m/s² ALLGEMEIN Das Druckluft-Ausbeulwerkzeug ist geeignet für die Reparatur von leichten Dellen.
  • Page 2 Positionieren Sie das Klebe-Pad genau und schnell auf der Oberfläche des Dellen-Bereichs. Drücken Sie nicht zu feste, so dass der Kleber eine dicke Schicht zwischen dem Dellen-Bereich und dem Klebe-Pad bilden kann. Justieren Sie die Fusshöhe vom Druckluftwerkzeug. Verbinden Sie das Werkzeug mit der Druckluftversorgung. Stellen Sie das Druckluftdurchfluss-Regelventil ein.
  • Page 3 Art. 875 Air Dent Repair Tool SPECIFICATIONS Stainless steel foot with PVC protect Air flow control valve Air inlet: 1/4" Operating pressure: 3 - 10 bar (40 - 145 psi) Noise level at 6.3 bar: LpA 66.5 db(A) LwA 77.5 db(A) Vibration: ahd 0.4 m/s²...
  • Page 4 Press the adhesive pad accurately and quickly to the surface of the dent area. Do not press too hard, so that the adhesive should form a thick layer between the adhesive pad and dent area. Adjust the foot height from the pneumatic tool. Connect the tool to the compressed air supply.
  • Page 5 Wir erklären in alleiniger Verantwortung, dass die Bauart des Produktes: We declare that the following designated product: Nous déclarons sous propre responsabilité que ce produit: Declaramos bajo nuestra sola responsabilidad que este producto: Druckluft-Beulenauszieher ( BGS Art. 875 ) Air Dent Repair Tool Débosseleur pneumatique Extractor para quitar abolladuras folgenden einschlägigen Bestimmungen entspricht:...
