Baumatic MEGA10 Instruction Manual

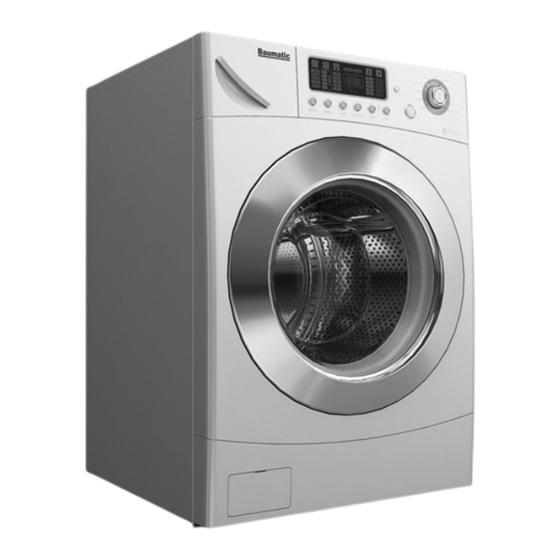

Extra large 10 kg capacity washing machine/washer dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MEGA10W Extra large 10 kg
capacity washing machine
MEGA10WD Extra large 10 kg
capacity washer dryer
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEGA10 and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic MEGA10

Summary of Contents for Baumatic MEGA10

  • Page 1 MEGA10W Extra large 10 kg capacity washing machine MEGA10WD Extra large 10 kg capacity washer dryer...

  • Page 2: Table Of Contents

    PARTS AND FEATURES WASHING MACHINE SAFETY INSTALLATION INSTRUCTIONS INLET HOSE CONNECTION ELECTRICAL REQUIREMENTS OPERATING YOUR WASHING MACHINE THE FUNCTIONS OF THE WASHING MACHINE CONTROL PANEL WASHING PROGRAMMES WASHING PROCEDURE AND SELECTION GUIDE FOR OTHER USEFUL PROGRAMS MAINTENANCE HOW TO CLEAN THE FILTER REMOVING STAINS TROUBLE SHOOTING CONDITIONS OF GUARANTEE...

  • Page 3: Parts And Features

    ACCESSORIES Blanking Cap Hose drain Inlet hose Spanner Manual (x4)

  • Page 4: Washing Machine Safety

    WASHING MACHINE SAFETY Save these instructions Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washing machine adhere to the following basic precautions. Read all instructions before using your washing machine •...

  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS Removing transit bolts 1. Before operating the washer, remove the transit bolts (4 each) along with the rubber. • If the bolts are not removed, it may cause heavy vibration, noise and malfunction. 3. Close the holes with the Blanking Caps supplied. Location of washer •...

  • Page 6: Inlet Hose Connection

    INLET HOSE CONNECTION The machine should be connected to the water mains using the new hose sets supplied. NEVER reuse old hoses. Be sure that the water inlet hoses are not folded, broken or crushed. The washer should be connected to the cold water supply as this gives the most efficient wash results.

  • Page 7: Water Drain Connection

    WATER DRAIN CONNECTION Be sure that the drain hoses are not folded, twisted, crushed or elongated by stretching. Water drain hose should be mounted at a height of a minimum of 60 cm to a maximum of 100 cm from the ground. The end of the water drain hose may be directly fitted to the waste water outlet connection or to a standalone pipe.

  • Page 8: Electrical Requirements

    ELECTRICAL REQUIREMENTS WARNING - Electrical shock hazard: Failure to follow these instructions could result in death or serious injury. An electrical earth is required on this machine- If it does not fit the outlet; have a proper outlet installed by a qualified electrician. Don’t earth to a gas pipe.

  • Page 9: Operating Your Washing Machine

    2 Adjust the level of the washing machine using the adjustable legs. • Please check if there is any gap between the four adjustable legs and the floor. • Turn the adjustable legs using the enclosed spanner, adjust the level of the machine and make sure that it is stable.
  • Page 10 • Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together. • Separate dark colours from light colours, colourfast items from non-colourfast items. Soil (Heavy, Normal, Light): Colour (White, Lights, Darks): Lint (Lint producers, Collectors): •...

  • Page 11: The Functions Of The Washing Machine Control Panel

    THE FUNCTION OF CONTROL PANEL Press this button to turn the power 'ON' or 'OFF'. Operation and temporary stop is repeated as it is pressed. When you want to change a programme while operating; Press the 'Start/Pause' button Press the 'Start/Pause' button again. You can select the programme you want and each lamp is turned on when that course is selected.
  • Page 12 THE FUNCTION OF CONTROL PANEL Press this switch to turn the power 'ON' or 'OFF'. Operation and temporary stop is repeated as it is pressed. When you want to change the program operating; Press the 'Start/Pause' button 'Start/Pause' button again. You can select the course you want and each lamp is turned on when that course is selected.

  • Page 13: Washing Programs

    WASHING PROGRAMS Program Fabric type Normal Colourfast garments (shirts, night dresses, pyjamas,..) and lightly soiled white cottons(underwear,..) White First check whether laundry is machine washable, (white cotton, linen, towel and sheets..) Eco-White First check whether laundry is machine washable, (white cotton, linen, towel and sheets..) Synthetic Polyamide, Acrylic, Polyester...)

  • Page 14: Washing Programmes

    WASHING PROCEDURE AND SELECTION 1. NORMAL PROGRAMME Put the laundry into the Drum. Then close the Door. • In the detergent compartment, put the powder into the main wash and prewash sections (See Diagram - Page 9). Step 1 • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 15 2. WHITE PROGRAMME Put the laundry into the Drum. Then close the Door. • Put the detergent into the main wash and prewash sections (See Diagram - Page 9). • Softener should be poured into the middle section of the compartment and be below Step 1 'MAX' level.
  • Page 16 3. ECO-WHITE PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash and prewash sections (See Diagram - Page 9). Step 1 • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 17 4. SYNTHETIC PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash and prewash sections (See Diagram - Page 9). Step 1 • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 18 5. HEAVY STRAIN PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash and prewash sections (See Diagram - Page 9). Step 1 • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 19 6. WOOL PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash section (See Step 1 Diagram - Page 9). • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 20 7. DELICATE PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash section. Step 1 (See Diagram - Page 9). • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 21 8. BLANKET PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment put the powder into the main wash section Step 1 (See Diagram - Page 9). • Softener should be below 'MAX' level. •...
  • Page 22 9. RAPID PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash section (See Step 1 Diagram - Page 9). • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 23 10. MEMORY PROGRAMME Put the laundry into the drum. Then close the Door. • In the detergent compartment put the powder into the main wash and prewash Step 1 sections (See Diagram - Page 9). • Softener should be poured into the middle section of the compartment and be below 'MAX' level.
  • Page 24 11. DRUM CLEANING PROGRAMME Put the laundry into the drum. Then close the Door. Step 1 • If you want to clean the Drum slightly, use this programme without bleach. • If you want to clean the Drum thoroughly, please use detergent only. Press the Power button.

  • Page 25: Guide For Other Useful Programs

    GUIDE FOR OTHER USEFUL PROGRAMMES * DELAY START (RESERVED WASHING) Put the laundry into the drum. Then close the Door. • In the detergent compartment, put the powder into the main wash and prewash Step 1 sections (See Diagram - Page 9). •...
  • Page 26 * ONLY WASH Put the laundry into the Drum and put the detergent and softener into the detergent Step 1 compartment. Then close the Door. Press the Power button. Step 2 • The LED shows this signal: '- --' Select the 'WASH CYCLE' you want by pressing the 'WASH' button. Step 3 •...
  • Page 27 * DRYER (MEGA10WD) Step 1 Put the laundry into the Drum and close the Door. Press the Power button. Step 2 • The LED shows this signal: '- --' Select the 'DRY CONDITION' you want by pressing the 'DRY' button. As this button is pressed, the dry condition is selected by 'Cupboard' →...
  • Page 28 * RINSE+SPIN (MEGA10W) Put the laundry into the Drum and put softener into the detergent compartment. Then close the Door. Step 1 • Softener should be poured into the middle section of the compartment and be below 'MAX' level. Press the Power button. Step 2 •...

  • Page 29: Maintenance

    MAINTENANCE Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Exterior Wipe up detergent, bleach, and other spills with a soft, damp cloth or sponge as they occur. Occasionally wipe the outside of the washer to keep it looking like new.

  • Page 30: How To Clean The Filter

    HOW TO CLEAN THE FILTER Cleaning the water inlet filter Clean the filter when water leaks from the water inlet Pull the power plug out before cleaning the filter. Turn off the water supply to the washer and separate the inlet hose. Pull the inlet filter out.

  • Page 31: Removing Stains

    REMOVING STAINS Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk or grass. Prewashing helps loosen soil before washing. PLEASE REFER TO CLOTHING CARE ADVICE ON MANFACTURERS LABEL. Stain removal rules •...

  • Page 32: Trouble Shooting

    TROUBLE SHOOTING Most problems are easily solved if you understand the cause. Check the following list for problems before calling for service. If error mode such as IE, OE, UE are displayed on the control panel- first open and close the door, and then press START/PAUSE button. PROBLEM •...

  • Page 33: Conditions Of Guarantee

    Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.

  • Page 34: Service Contacts

    Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone...

  • Page 35: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

This manual is also suitable for:

Mega10wdMega10w
