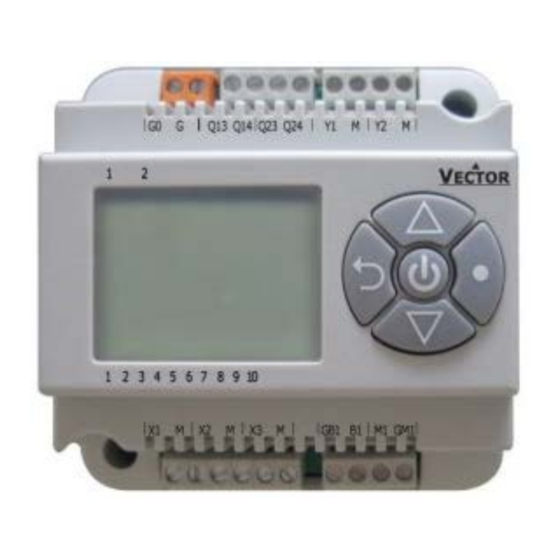

TCI-C Series Cabinet Mounted Universal Controller
Applications
•
Fan coil units
•
Heat
exchanger
Zoning
•
General
TCI-C11: 1 independent control loop, 2 universal inputs (analog/binary/temp), 2 binary outputs, 1 analog output
•
TCI-C22: 2 independent control loops, 4 universal inputs, 2 binary outputs, 2 analog outputs.
•
•
Flexible application configuration is made with a parameter-setting routine using the standard operation terminal.
Name
- C
T
C
I
2
Ordering
Model
Order code
TCI-C11-0
40-11 0060
TCI-C13-0
40-11 0064
TCI-C22-0
40-11 0062
Temperature sensors: Use Vector Controls NTC sensors to achieve maximum accuracy: SDB-Tn10-20 (duct), SRA-Tn10
(room), SDB-Tn10-20 + AMI-S10 as immersion sensor.
Actuators: Choose modulating actuators with an input signal type of 0-10 V DC or 4-20 mA (Min. and max. signal limitations
may be set with parameters. 3-point point actuators with constant running time are recommended.
Binary auxiliary devices (e.g. pumps, fans, on/off valves, humidifiers, etc): Do not directly connect devices that exceed
specified limits in technical specifications – observe startup current on inductive loads.
Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration
Features
TCI-C22 also includes
•
VAV
•
Air handlers
•
Fan, Pump control
-
2
0
Supply Voltage: 0 - 24VAC
In/Outputs: 1 - 2 UI, 2 DOr, 1 AO, 3 - 2 UI, 2 DOt, 1 AO, 2 - 4 UI, 2DOr, 2AO
Control loops: 1 - 1 control loop, 2 - 2 control loops
Mounting: C - Cabinet
Series: TCI
Option
Power
24VAC
Standard
24VAC
Standard
24VAC
Schedules
Universal PID and/or binary control for any analog
•
input/output signal and range.
Multiple auxiliary functions: heat-cool auto changeover,
•
automatic enable, set point compensation.
Averaging, min and max functions
•
Cascading of control loops (-C22 type).
•
Alarm monitoring of low and high limits on all inputs.
•
Programmable reaction in case of alarm.
•
•
Feedback function for inputs and set points.
•
Functions for dehumidifying, set point shift, cascade
control.
•
Password protected programmable user and control
parameters.
Power Cap protected real-time clock with 24hr power
•
backup.
8 programmable time schedule events.
•
Blue backlight.
•
•
Humidifiers
•
Dehumidifiers
•
Ventilation
Binary
Loop
Input
Output
1
2
2 Relays
1
2
2 TRIAC
2
4
2 Relays
©Vector Controls GmbH, Switzerland
TCI-C Universal Controller
O
VERVIEW
•
Radiant heating
•
Radiant cooling
•
Pressurization
Analog
Housing
Output
1
Cabinet,
1
DIN rail mounted
2
Page 1
Advertisement
Table of Contents
Related Manuals for Vector TCI-C Series
Summary of Contents for Vector TCI-C Series
- Page 1 Schedules 2 Relays Temperature sensors: Use Vector Controls NTC sensors to achieve maximum accuracy: SDB-Tn10-20 (duct), SRA-Tn10 (room), SDB-Tn10-20 + AMI-S10 as immersion sensor. Actuators: Choose modulating actuators with an input signal type of 0-10 V DC or 4-20 mA (Min. and max. signal limitations may be set with parameters.
-
Page 2: Technical Specifications
Supplying voltages above AC 24 V to low voltage connections may damage or destroy the controller or any other connected devices. Additionally, connections to voltages exceeding 42 V endanger personnel safety. Observe limits mentioned in the technical specifications. Local regulations must be observed! Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 2... - Page 3 Potential free relays output for 0…250 VAC or 0…30 VDC Universal input: NTC 10kΩ @ 25°C (77°F), 0…10 V or 0…20 mA Analog output: 0…10 V or 0…20 mA Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 3...
- Page 4 A function refers to a disabled input. Disable the function or enable the input. Err4: Failure of an internal component required for operation. Product must be replaced. Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 4...
-
Page 5: Clock Operation
Manual heat–cool changeover Press UP/DOWN Small digits display H-C: Press OPTION Currently active H or C symbol displayed: Press OPTION again to toggle H or C Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 5... -
Page 6: Control Loops
(FU05). Depending on parameter FU04, the set point is now shifted towards the cooling set point min. or max. It reaches its max. when the temperature equals the upper limit (FU06). Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 6... -
Page 7: Pid Control
P sequence Heating, Reverse P sequence Cooling, Direct The Vector Controls PID control algorithm balances accuracy with stability to achieve a stable control loop. The PID components are adjustable through parameters to suit the application. A narrow P-band increases sensitivity. A wider P-band increases stability. -
Page 8: Universal Inputs
Accuracy in Kelvin for Place the jumper to RT for a passive NTC sensor input. Specified accuracy can NTC Temperature Input only be guaranteed using Vector Controls Sxx-Tn10 sensors. Range values described above also apply to temperature inputs. Limiting the range increases resolution. - Page 9 Limit 2.) For binary open/close contact: open is a high value (100%), closed is a low value (0%). Limit 2 > Limit 1 Limit 1 > Limit 2 Comfort Comfort Mode Mode Standby Standby Limit Limit Limit Limit Input Input Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 9...
-
Page 10: Analog Outputs
Values of universal inputs as well as set points of control loops may be transmitted on the analog outputs. Minimum and maximum value of the feedback value may be set for each output. Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 10... -
Page 11: Binary (Digital) Outputs
Parameter 1D04, to reduce the switching frequency of the actuator. The actuator will only move if the difference to the current actuator position is larger than this parameter. Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 11... - Page 12 Press the ESC to leave the menu. The unit will return to normal operation if no button is pressed for more than 5 minutes. Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 12...
- Page 13 1…255 = Delay in minutes to switch off device if comfort or standby mode is activated while the unit is scheduled to be in OFF mode Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 13...
-
Page 14: Control Parameters (Password 241)
All involved inputs must the same type and range. 0 = Not active 1 = Average function 2 = Minimum function 3 = Maximum function Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 14... - Page 15 Delay for heat – cool changeover in case above parameter is OFF 1L 24 0…255 min 5 min Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 15...
- Page 16 1 2 3 4 5 6 7 8 1A 09 Feedback function: minimum input value Acc input 0°C 1A 10 Feedback function maximum input value Acc input 100°C Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 16...
- Page 17 Choose alarm to set output to 0%. With conflicting alarms, output will be set Selection to 0% Alarm: 1 2 3 4 5 6 7 8 1d 08 Display Fan Symbol while active ON, OFF Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 17...
- Page 18 0 – 1275 s limit before cooling mode is activated Fu 22 Input limit 1 Range acc input Fu 23 Input limit 2 Range acc input Doc: 70-07-0123, V1.2, Date: 20101022 Subject to alteration ©Vector Controls GmbH, Switzerland Page 18...
