carson
console table
style # CACNTBWDEB (black)
dpci # 249-17-0894
tcin # 53567590
style # CACNTBWDES (espresso)
dpci # 249-17-0887
tcin # 53567598
style # CACNTBWDGY (gray)
dpci # 249-17-0895
tcin # 53567613
style # CACNTBWDBR (rustic)
dpci # 249-17-0896
tcin # 53567621
style # CACNTBWDWL (walnut)
dpci # 249-17-0897
tcin # 53567589
style # CACNTBWDWH (white)
dpci # 249-17-0898
tcin # 53567603
>> assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target carson CACNTBWDEB
Summary of Contents for Target carson CACNTBWDEB

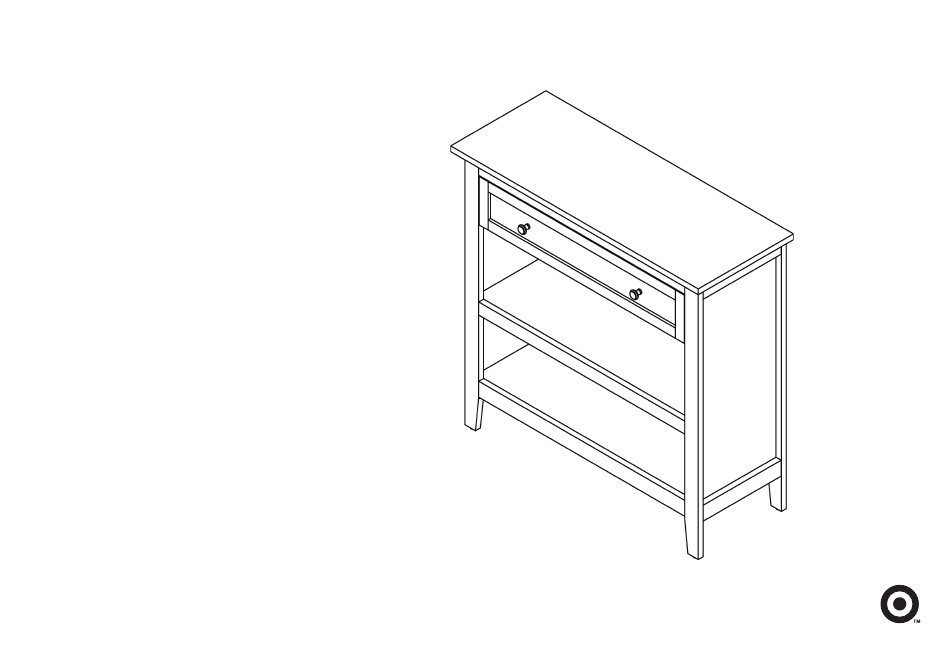

- Page 1 # 53567621 style # CACNTBWDWL (walnut) dpci # 249-17-0897 tcin # 53567589 style # CACNTBWDWH (white) dpci # 249-17-0898 tcin # 53567603 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-16 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 26 (H2) x 30 (H3) x 30 (H4) x 20 (H5) x 2 wooden dowel cam bolt short pan head screw knob (H6) x 2 (H7) x 5 (H8) x 4 (H9) x 1 (H10) x 1 knob bolt flat head screw shelf support...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel bottom front rail bottom rear rail back panel upper front rail upper rear rail drawer front drawer left side drawer right side drawer back drawer bottom drawer support shelf shelf rail...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach shelf rail to shelf (H1) x 2 (H2) x 3 (H3) x 3 (H3) x 3 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
- Page 8 step 2: attach bottom front and rear rails to bottom panel (H1) x 4 (H2) x 6 (H3) x 6 (H3) x 6 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach upper front and rear rails/bottom panel to left side panel (H1) x 4 (H1) x 4 (H2) x 4 (H2) x 4 (H3) x 4 (H3) x 4 wooden dowel wooden dowel cam bolt cam bolt 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 10 step 4: attach right side panel (H1) x 4 (H2) x 4 (H2) x 4 (H3) x 4 (H3) x 4 wooden dowel cam bolt cam bolt 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 11 step 5: attach top panel front edge (H1) x 6 (H2) x 8 (H2) x 8 (H3) x 8 (H3) x 8 wooden dowel cam bolt cam bolt 5.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 12 step 6: attach back panel hole for anti-tip Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) If not, apply gentle pressure to the diagonally opposite...
- Page 13 step 7: install shelf (H8) x 4 shelf support 7.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 7.2. Angle shelf to fit between the rails and set on top of shelf supports.
- Page 14 step 8: assemble drawer starting with drawer sides / finish assembly with back panel (H1) x 6 (H2) x 5 (H3) x 5 (H7) x 5 wooden dowel cam bolt flat head screw 8.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 8.2.
- Page 15 step 9: attach knobs and install drawer (H5) x 2 (H6) x 2 knob knob bolt 9.1. Do not over tighten bolts.
- Page 16 step 10: install anti-tip kit (H12) (H9) Position against wall (H13) Mark position of strap hole on wall Drill 1/4” hole (H10) Tap in wall anchor (H13) (H11) Fasten anti-tip strap with wall screw provided (H10) x 1 (H12) x 1 (H9) x 1 (H11) x 1 (H13) x 2...
- Page 17 l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 18 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
