Summary of Contents for Optimus ME-200B
-
Page 3: Table Of Contents
SOFTWARE AND FIRMWARE VERSIONS ..........................9 DOCUMENT VERSION TRACKING ............................9 GUARANTEE ..................................10 WARNING. This is a Class A unit. In a domestic environment this unit may cause radio interferences. In this case the user must take the necessary precautions. ME-200B version 3.1.000... -
Page 4: Introduction

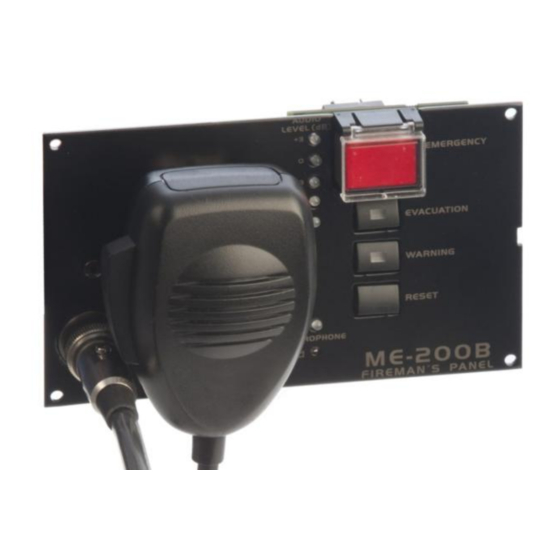

ME-200B for COMPACT equipment 1. INTRODUCTION Figure 1 The ME-200B is designed to be mounted on the COMPACT audio matrix. Is used by personnel in charge of evacuating a building to activate or deactivate the emergency mode, initiate or stop the pre-recorded alert and evacuation messages and for broadcasting live voice messages during an emergency. -
Page 5: Operations In Normal Mode
3.1. Sending a live voice announcement When the system is not in Emergency Mode, the hand-held microphone of the ME-200B may be used to make live voice announcements in local zones, using the front controls on the audio matrix to select the destination of the messages. -
Page 6: Monitoring A Channel
ME-200B for COMPACT equipment 3.2. Monitoring a channel When the system is not in Emergency Mode, you can monitor the audio matrix channels via the ME-200B speaker. To accomplish this: Figure 4 Using the navigation keys / select the settings menu ( ) and press the navigation key ... -
Page 7: Operations In Emergency Mode
Live voice announcements take priority over an EVACUATION message and in turn, an EVACUATION message takes priority over a WARNING message. 4.5. Exiting the Emergency Mode Press the RESET key. The EMERGENCY button light goes out to indicate that the desktop paging system is no longer in Emergency Mode. ME-200B version 3.1.000... - Page 8 Built-in fireman’s panel & microphone ME-200B for COMPACT equipment ME-200B version 3.1.000...
-
Page 9: Technical Specifications
Version 3.1.4869 Optimax Flasher software Version 2.9.12 7. DOCUMENT VERSION TRACKING Reference system Type of Document Confidentiality ME-200B / COMPACT Installation and operating guide Date Modifications Content Written by: 3.1.000 March 2017 Translation of the Spanish language version 3.1.000 R+D Department... -
Page 10: Guarantee
In the event that the guarantee rights do not to present the original purchase invoice or the guarantee certificate. apply, OPTIMUS S.A. shall duly inform the client. If, within a period of 6 weeks 2. GUARANTEE PROVISIONS from this communication, no written repair order is received from the client confirming acceptance of the costs, OPTIMUS S.A. - Page 12 Built-in fireman’s panel & microphone ME-200B for COMPACT equipment ME-200B version 3.1.000...
