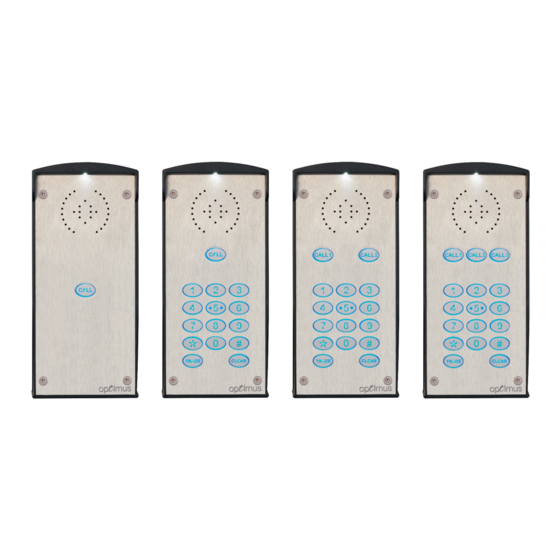

Optimus Range Installation Manual

4G LTE INTErCoM

4G LTE I/o Board cONNEcTIONS

4G LTE PCB cONNEcTIONS

EU CE Declaration of Conformity and Radio Equipment Directive is available at www.commtel-uk.com | GB-RH10 9XN
www.optimus-uk.com/support
INSTALLATION GUIDE
A SITE SIGNAL NETWORK TEST IS TO BE UNDERTAKEN
BEFORE INSTALLATION

INSTALLATION TIPS

use the positioning template for the siting of the mounting holes.
z
ensure the unit is sealed to prevent water ingress.
z
use electronic grade silicone sealant to seal around all rear entry holes.
z
ensure antenna and power leads have a loop before entering the back
z
of the unit to prevent water ingress along the cable.
use the black plastic gland M20 x 1.5mm, std electrical thread to
z
secure the power and aerial leads.
If drilling out the backbox or steel posts, no metal filings must be left in
z
the backbox. the speaker has a magnet and may attract metal filings.
Brush out the back box of all debris before screwing in the faceplate.
Do a 4G signal test with a 4G analyser to ensure installation of the
z
best sim card.
ensure the unit is turned off before inserting/removing the sIM and
z
plugging in/unplugging the aerial.
LeD status lights: Green OK LeD is multi purpose, it shows correct
z
antenna connection, correct sim card installation and signal strength
(RssI).
the blue LeD is the network status LeD.
z
use the faceplate parking slot for ease of installation.
z
We strongly recommend the PIN Defaults are changed at the point
z
of installation.
For full installation manual visit www.telguard.co.uk/support
z
The 4G antenna is an external item that should be
installed in the most suitable position so that maximum
signal strength is obtained and is more than 200mm
from a human body.
This positioning should also allow for avoidance of any
likely vandalism as is able.
