Clack Res-Up Quick Start Manual

Programmed Feeder and Resin
Cleaner for more efficient water
conditioning resin and brine systems.
The most efficient water softener media are resin
beads honeycombed with microscopic pores. As raw
water passes through the medium impurities are
deposited around the resin beads and in the pores.
The brine bath removes the impurities but, alone,
can't penetrate the pores or remove iron and slime
deposits.
Res-Up CleaneR is formulated to penetrate bead
pores and loosen up and float away iron and other
impurities. Res-Up Cleaner will also keep softener
components and control valve parts free of build-ups
which impair proper functions.

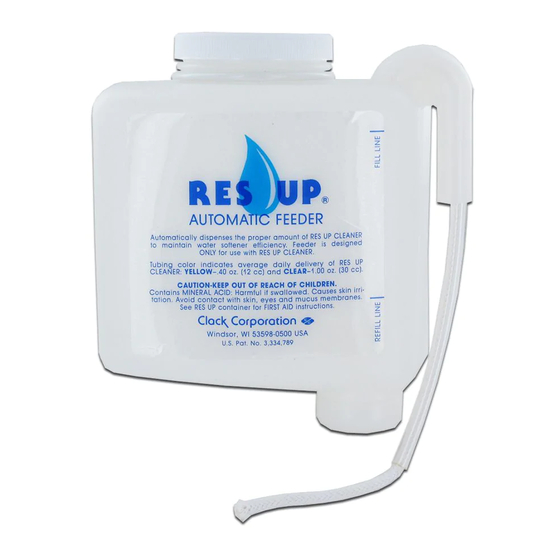

Res-Up feedeR is a programmed feeder which
meters the proper amount of Res-Up Cleaner each
time the resin bed is regenerated. The Res-Up Feeder
can be programmed for the size of the resin bed and
the amount of iron and impurities in the raw water.
Res-Up®
Feeders
Res-Up
FeedeR
BRine
Well
BRine TAnk
figure 1
