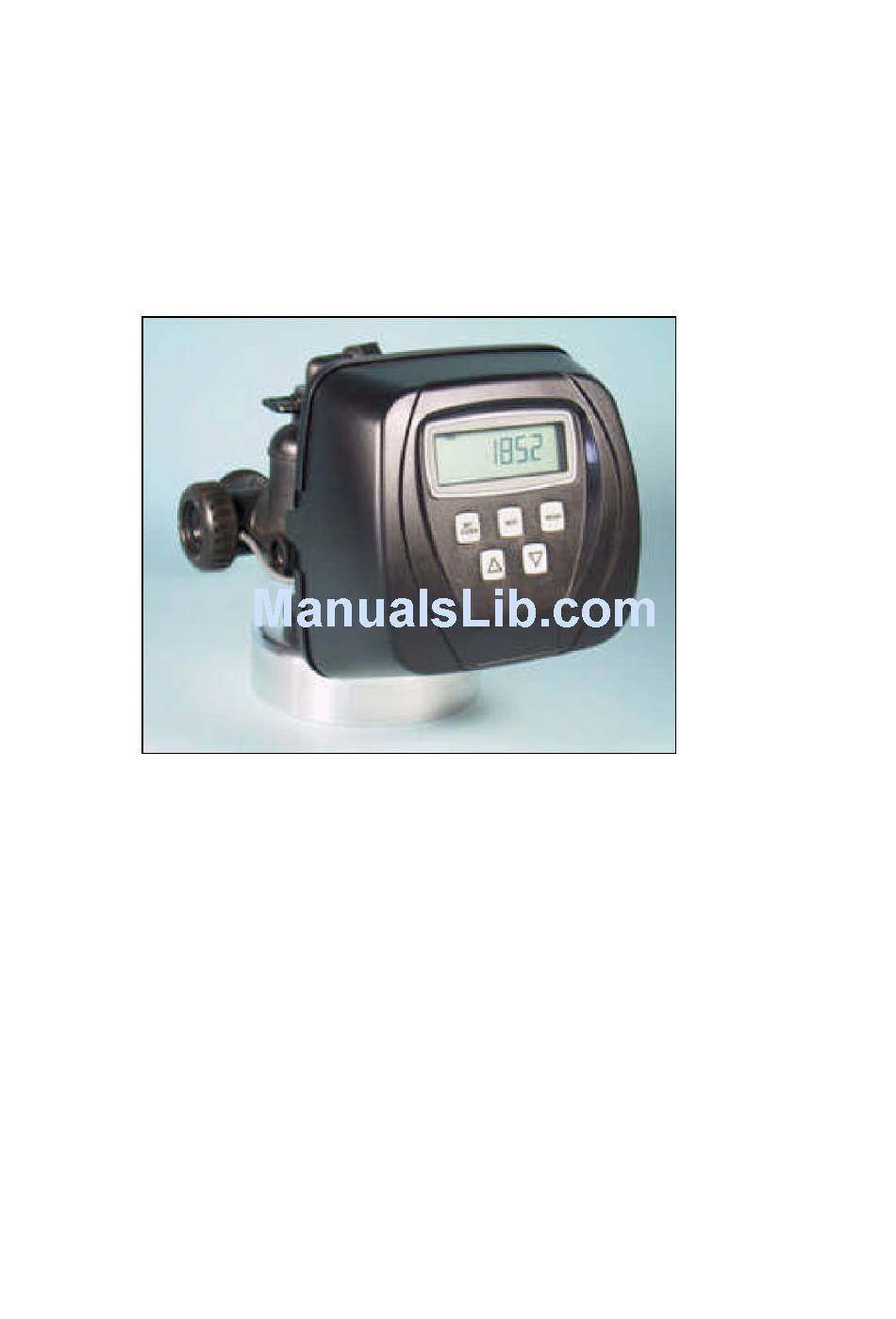

- Page 1 F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual Installation Operation Maintenance Manual FILTER AG + Filter WS1, 1.5 & 2” Series Valve Models CAP 1054 CAP 1248 CAP1354...
-
Page 2: Table Of Contents
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual CONTENTS 1 UNPACKING AND PARTS LIST ......................3 1.1 UNPACKING NOTES........................3 1.2 BASIC PARTS LIST ........................3 1.3 MISSING OR DAMAGED GOODS .................... -
Page 3: Unpacking And Parts List
1 . 2 B A S I C P A R T S L I S T 1. VALVE (c/w flow controllers on outlet and drain) 2. CLACK MANUAL 3. INSTRUCTIONS 4. VESSEL (c/w riser and distribution system) 5. -
Page 4: System Management
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual bed. By this method the whole depth of the bed can be used for filtration. 3 . -
Page 5: Operating Space
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual water to drain depends on site conditions, but will be at least the same as the service flow. -
Page 6: Assembly/Installation
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual continuous supply of 240v, 5 VA is required which should be provided by an uninterrupted mains supply, which is separately 1 Amp fused, and does not have any additional switch. -
Page 7: Commissioning
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual If possible, place the filter vessel into its final location before filling. Check that the riser tube has the cap in place before commencing filling. Using a hose 1/3 fill the vessel with water. -
Page 8: Setting The Time Of Day
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual 7 . 2 S e t t i n g t h e T i m e o f D a y 1. -
Page 9: Regeneration Programming
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual Regeneration Programming (All programming below is Factory set) To alter settings – Press “ ” and “ ” keys To back up at any stage –... - Page 10 F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual User Programming To alter settings – Press “ ” and “ ” keys To back up at any stage – Press “ To save REGEN”...
-
Page 11: Commissioning
Perform a chlorinated backwash to remove any organic build up on the media. Check filter media depth against original level. Annually Inspect and clean/replace as necessary the piston and the internal seals. A competent engineer familiar with Clack valves should perform FILTERAG+ WS Rev 1 Page 11 of 16... -
Page 12: Fault Finding And Rectification
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual this. 9 FAULT FINDING AND RECTIFICATION 9 . 1 N O F L O W T O S E R V I C E Check mains pressure is above 1.7 bar. -
Page 13: Warranty And Service
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual B A C K W A S H E S Increase frequency of backwash Check age of media and media level Backwash with chlorine solution to remove organic build up Increase backwash flow 10 WARRANTY AND SERVICE... -
Page 14: Engineering Data
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual 1 1 . 2 E N G I N E E R I N G D A T A 11.2.1 FILTER AG + Series Filters CAP1054 to CAP 1465 CAP1054 CAP1248... -
Page 15: Spares List
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual 12.0 SPARES LIST 1 2 . 1 W S 1 V a l v e s PART NO. -
Page 16: Ce Certificate
F I L T E R A G + S e r i e s F i l t e r Installation Operation Maintenance Manual 13 CE Certificate Manufacturer's Declaration of Conformity We the undersigned EURAQUA UK, HITCHIN, ENGLAND Certify that the product TYPE: FILTER AG + FILTER WITH WS1, WS 1.5 or WS2 AC VALVE has been designed and manufactured in accordance with the specifications of the following:...
