• BEFORE product assembly and discarding carton, check all contents for
damage or missing parts.
•
For fastest and damage-free installation, please
carefully read and follow the assembly instructions.
• Prior to using this product please verify that all
screws have been securely tightened.

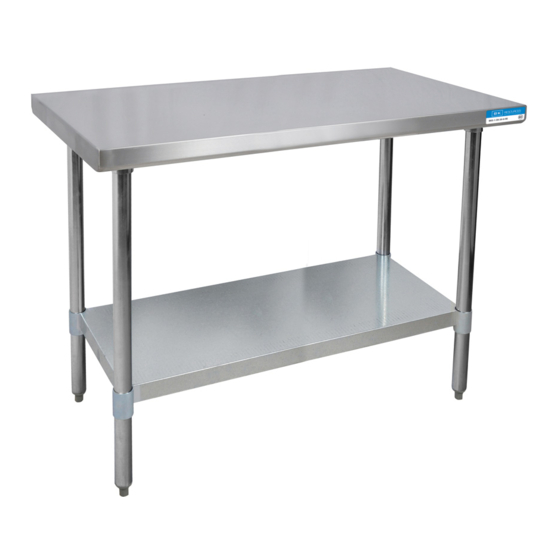

• Table Top
• 4 Legs
• Shelf
• M8x8 Allen Set Screws
• 4mm Allen Wrench
NOTE: ALL SET SCREWS MUST BE FILLED WITH SILICONE CHAULK AFTER THE TABLE IS SETUP.
THIS IS DONE TO COMPLY WITH NSF'S EASILY CLEANABLE REQUIREMENTS.
READ THIS FIRST:
PARTS LIST
HARDWARE LIST
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS XS-4830
Summary of Contents for DIVERSIFIED WOODCRAFTS XS-4830
- Page 1 READ THIS FIRST: • BEFORE product assembly and discarding carton, check all contents for damage or missing parts. • For fastest and damage-free installation, please carefully read and follow the assembly instructions. • Prior to using this product please verify that all screws have been securely tightened.
- Page 2 METAL TABLE WITH LOWER SHELF TABLE TOP ASSEMBLY INSTRUCTIONS 1. TURN TABLE TOP UPSIDE DOWN ON A CLEAN (DETAIL A) SURFACE TO AVOID SCRATCHING (SEE DETAIL A). ASSISTANCE WILL BE NEEDED LEG SOCKET 2. PLACE LEGS INTO TABLE GUSSETS (LEG SOCKET). DO NOT TIGHTEN SET SCREWS (SEE DETAIL B).
