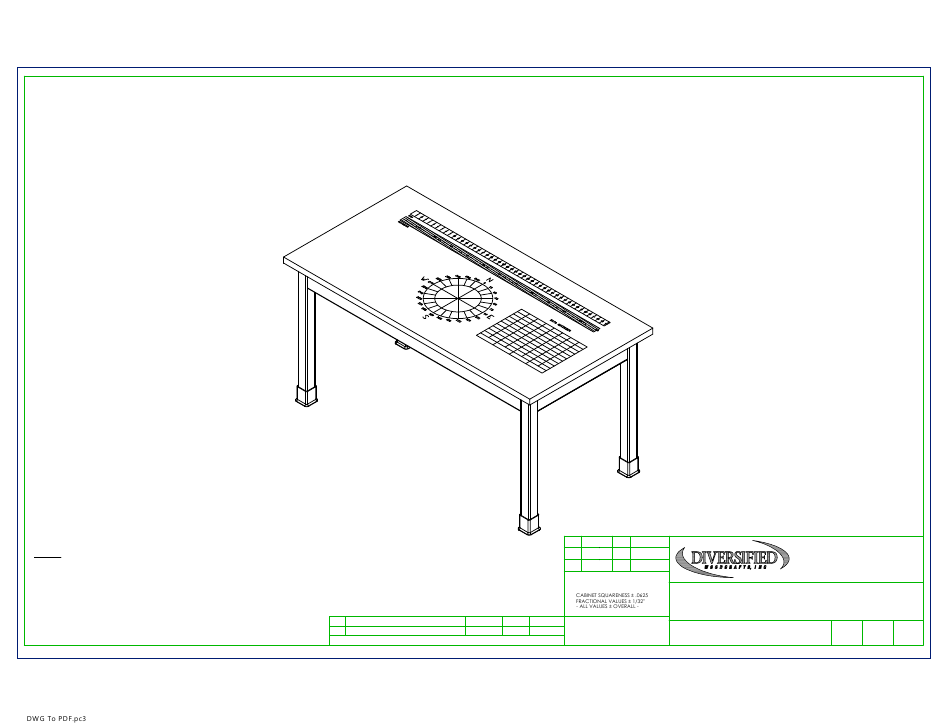

ASSEMBLY TEMPLATE
IMPRINT DRY ERASE TABLE
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\DIVERSIFIED\ASSEMBLY INSTRUCTIONS\ACAD\P7149K & M, P7209K & M SERIES TABLES.dwg, 9/14/2018 10:50:03 AM,
P7149K30N, P7149M30N, P7209K30N, & P7209M30N SERIES TABLES
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
REV.
DESCRIPTION
DWN
EMK
BY:
APR
BY:
APR
BY:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
11/2/17
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
DATE
NAME
ECN NO.
BE ALTERED OR CHANGED WITHOUT
REVISION LEVEL
PERMISSION
DWN
11/2/17
DATE:
DATE
APR:
DATE
APR:
TITLE:
IMPRINT DRY ERASE TABLE
ASSEMBLY INSTRUCTIONS
DRAWING NUMBER:
P7149K/M & P7209K/M
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 6
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS P7149K30N Series
Summary of Contents for DIVERSIFIED WOODCRAFTS P7149K30N Series
- Page 1 ASSEMBLY TEMPLATE IMPRINT DRY ERASE TABLE P7149K30N, P7149M30N, P7209K30N, & P7209M30N SERIES TABLES ASSEMBLY INSTRUCTIONS 11/2/17 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE: IMPRINT DRY ERASE TABLE...
-
Page 2: Tools Required
ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION " WRENCH TOP ASSEMBLY (FACTORY ASSEMBLED) TOP AND APRON ASSEMBLY " SOCKET AND TORQUE WRENCH - OPTIONAL LEG, (OAK OR MAPLE) 2.25X2.25X28.25 LEGS VARIES LEG HARDWARE 520001-4 LEG HARDWARE KIT,4 LEGS LEG BOOT,BLK RUBBER LEG BOOT 100076... - Page 3 ASSEMBLY TEMPLATE APRON SIDE FACING UP STEP 1: LAY TOP ASSEMBLY ON FLOOR WITH APRON SIDE FACING UP. **NOTE** BE SURE TOP ASSEMBLY IS ON A CLEAN SURFACE TO PREVENT DAMAGE 11/2/17 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR:...
- Page 4 ASSEMBLY TEMPLATE INSERT HANGER BOLT THROUGH HERE WITH LOCK WASHER AND HEX NUT STEP 2: INSERT HANGER BOLT ON ONE LEG THROUGH THE CORNER BRACKET AND INSERT LOCK WASHER AND HEX NUT. TIGHTEN NUT USING A " WRENCH OR " SOCKET AND TORQUE WRENCH, TO A MINIMUM OF 12FT LBS BUT NOT TO EXCEED 17FT LBS.
- Page 5 ASSEMBLY TEMPLATE LEG LEVELER LEG BOOT STEP 3: SLIDE LEG BOOTS ONTO LEGS WITH FLARED END TOWARD BOTTOM OF LEGS. SCREW LEG LEVELER INTO T-NUT ON BOTTOM OF LEGS. CLOSE UP OF LEG BOOT AND LEG LEVELER ASSEMBLY 11/2/17 DATE: 300 South Krueger Street NOTE: DATE...
- Page 6 ASSEMBLY TEMPLATE IMPRINT TOP STEP 4: TURN TABLE OVER SO TOP IS UP. SET YOUR TABLE IN PLACE. ADJUST LEG LEVELERS TO LEVEL TABLE. SLIDE LEG BOOTS DOWN TO FLOOR. COMPLETE UNIT SHOWN 11/2/17 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174...
