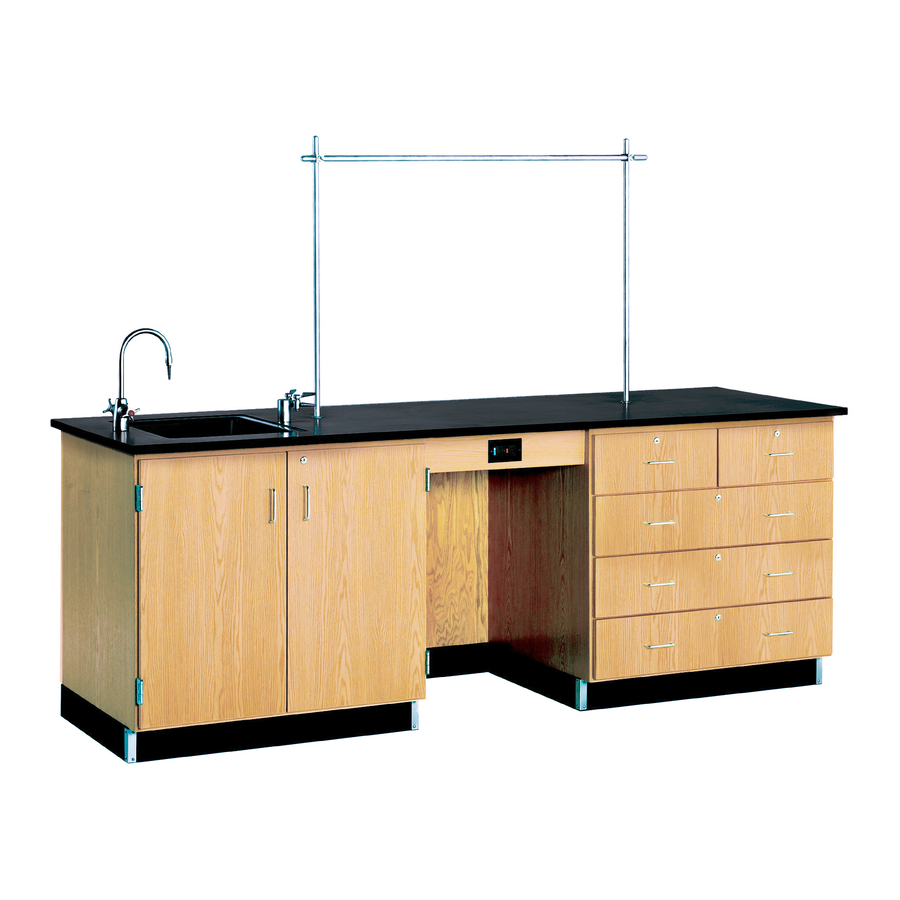

8' instructor desk
Hide thumbs
Also See for 1114K Series:
- Assembly instructions manual (14 pages) ,
- Assembly instructions manual (9 pages)
Advertisement
Quick Links

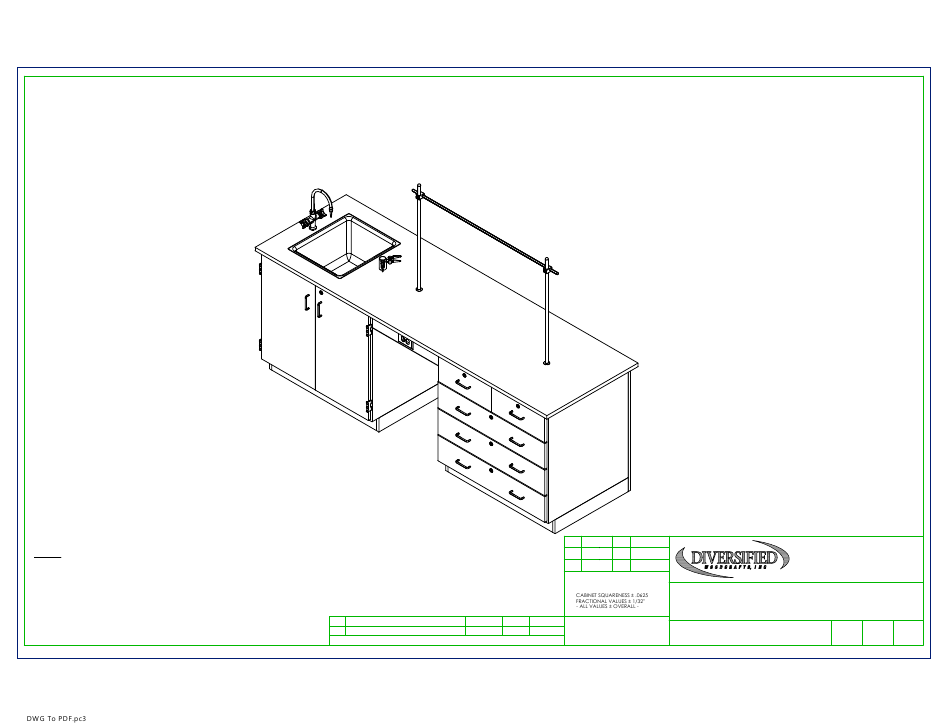

ASSEMBLY TEMPLATE
8' INSTRUCTOR DESK
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
K:\DIVERSIFIED\ASSEMBLY INSTRUCTIONS\ACAD\1114K & KF, 1116K & KF SERIES.dwg, 10/4/2018 3:02:00 PM,
1114K, 1114KF, 1116K, & 1116KF SERIES
ASSEMBLY INSTRUCTIONS
A
CREATED DRAWING
11/8/16
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DWN
DWN
11/8/16
EMK
BY:
DATE:
APR
DATE
BY:
APR:
APR
DATE
BY:
APR:
UNLESS OTHERWISE SPECIFIED
DIMENSION ARE IN INCHES
TITLE:
8' INSTRUCTOR DESK
ASSEMBLY INSTRUCTIONS
EMK
-
THIS DRAWING IS THE SOLE PROPERTY OF
DRAWING NUMBER:
DIVERSIFIED WOOD CRAFTS. IT MAY NOT
ECN NO.
BE ALTERED OR CHANGED WITHOUT
1114K & KF, 1116K & KF
PERMISSION
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
SCALE:
SHEET:
REVISION:
REV A
NTS
1 OF 14
Advertisement
Related Manuals for DIVERSIFIED WOODCRAFTS 1114K Series
Summary of Contents for DIVERSIFIED WOODCRAFTS 1114K Series
- Page 1 ASSEMBLY TEMPLATE 8' INSTRUCTOR DESK 1114K, 1114KF, 1116K, & 1116KF SERIES ASSEMBLY INSTRUCTIONS 11/8/16 DATE: 300 South Krueger Street NOTE: DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE: 8' INSTRUCTOR DESK ASSEMBLY INSTRUCTIONS...
- Page 2 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION CONTACT CEMENT TOP, (STYLE VARIES), 1.00X30X96,BLK, VARIES SCREW DRIVER (EITHER FIXTURE OR FLAT) C-CLAMPS CABINET B86 - 36"W X 35"H X 26.25"D SHIM STOCK (IF NEEDED) CABINET B23 - 36"W X 35"H X 26.25"D BACK PANEL 94"W X 35"H X 0.75"D APRON...
- Page 3 ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART DESCRIPTION **ROD SOCKET** 206505 ROD SOCKET ASSY,SOCKET,WASHER,NUT **CROSSBAR** 100006 ROD,CROSSBAR DIA.X48 L **UPRIGHT** 100004 ROD,UPRIGHT DIA.X36 L **CLAMP** 100002 ROD CLAMP ASSY NOTE: 11/8/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 TOPS ARE EITHER PHENOLIC OR EPOXY.
- Page 4 ASSEMBLY TEMPLATE B86 CABINET STEP 1: B23 CABINET POSITION THE TWO CABINETS IN DESIRED LOCATION. IF YOU HAVE A "K" SERIES UNIT, PLACE UNIT OVER UTILITY HOOKUPS. LEAVE ENOUGH ROOM IN BETWEEN CABINETS FOR APRON. LEVEL CABINETS . ATTACH TO FLOOR. 22.00 NOTE: 11/8/16...
- Page 5 ASSEMBLY TEMPLATE TOP MOUNTING CLEAT - TYPICAL ATTACH BACK TO TOP AND BOTTOM MOUNTING CLEATS LOCATED INSIDE BOTH CABINETS (BOTTOM MOUNTING CLEAT NOT SHOWN) BACK PANEL STEP 2: ATTACH BACK PANEL TO BACK OF CABINETS WITH HARDWARE PROVIDED. SCREW INTO TOP AND BOTTOM MOUNTING CLEATS LOCATED INSIDE BOTH CABINETS.
- Page 6 ASSEMBLY TEMPLATE ATTACH L BRACKETS TO APRON FIRST THEN ATTACH TO SIDES OF CABINET IN DESIRED LOCATION APRON STEP 3: ATTACH L BRACKETS TO APRON WITH HARDWARE PROVIDED. MAKE SURE BRACKETS ARE FLUSH WITH TOP EDGE OF APRON. MOUNT APRON TO SIDES OF BOTH CABINETS IN DESIRED LOCATION WITH REMAINING SCREWS.
- Page 7 ASSEMBLY TEMPLATE STEP 4: APPLY SILICONE ADHESIVE TO TOP EDGES OF CABINETS AND APRON. PLACE TOP ON UNIT WITH PROPER OVERHANG (1" OVERHANG ON SIDES AND 1.50" ON FRONT AND BACK). CLAMP ON TOP TO TOP RAILS OF CABINETS AND APRON TO REMOVE ANY WARP USING SHIMS AND C-CLAMPS, IF NEEDED, WHEN ALIGNING THE TOP (DO THIS BEFORE ADHESIVE ON EDGES SETS UP).
- Page 8 ASSEMBLY TEMPLATE STEP 5: IF YOU DO NOT HAVE A "K" SERIES UNIT, SKIP TO STEP 6. APPLY SILICONE ADHESIVE TO SINK OPENING ON TOP. LOWER SINK INTO OPENING. WIPE OFF ANY EXCESS CAULK AND ALLOW TO SET. LET CURE FOR 6-12 HOURS. APPLY SILICONE ADHESIVE AROUND OPENING FOR SINK NOTE:...
- Page 9 ASSEMBLY TEMPLATE FIXTURE - TYPICAL ROD SOCKET - TYPICAL STEP 6: ATTACH RUBBER MOLDING TO BASE OF INSTRUCTOR'S DESK USING CONTACT CEMENT. SCREW STAINLESS STEEL CORNER BRACKETS ON EACH CORNER OVER BASE MOLDING WITH HARDWARE PROVIDED. IF YOU HAVE A "K" SERIES UNIT, INSTALL FIXTURES IN THE HOLES PROVIDED ON TOP.
- Page 10 ASSEMBLY TEMPLATE UPRIGHTS - TYPICAL STEP 7: ROD SOCKETS - TYPICAL INSERT TAPERED END ON UPRIGHTS INTO ROD SOCKETS ON THE TOP. NOTE: 11/8/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE: 8' INSTRUCTOR DESK...
- Page 11 ASSEMBLY TEMPLATE THUMB SCREW CLAMP STEP 8: SLIDE ROD CLAMPS OVER UPRIGHT AND TIGHTEN IN DESIRED LOCATION USING THUMB SCREWS PROVIDED ON CLAMPS. REPEAT ON OTHER UPRIGHT CLOSE UP OF UPRIGHT NOTE: 11/8/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 DATE APR:...
- Page 12 ASSEMBLY TEMPLATE CROSSBAR STEP 9: SLIDE CROSSBAR THROUGH ONE CLAMP. POSITION OTHER END THROUGH OTHER CLAMP. **NOTE** SOME ROD CLAMP ADJUSTMENTS MAY BE REQUIRED NOTE: 11/8/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE: CLOSE UP OF UPRIGHT AND CROSSBAR ASSEMBLY...
- Page 13 ASSEMBLY TEMPLATE NOTE: 11/8/16 DATE: 300 South Krueger Street DATE APR: Suring, WI 54174 DATE APR: diversifiedwoodcrafts.com UNLESS OTHERWISE SPECIFIED DIMENSION ARE IN INCHES TITLE: 8' INSTRUCTOR DESK COMPLETE UNIT SHOWN ASSEMBLY INSTRUCTIONS CREATED DRAWING 11/8/16 THIS DRAWING IS THE SOLE PROPERTY OF DRAWING NUMBER: SCALE: SHEET:...
- Page 14 TROUBLESHOOTING YOUR GFCI ELECTRICAL RECEPTACLE: PLEASE NOTE: THROUGHOUT ANY OF THE FOLLOWING STEPS (PROCEDURES); IF YOU ARE NOT SURE YOU CAN DO THIS JOB SAFELY, AND COMPETENTLY, REFER THIS WORK TO QUALIFIED PROFESSIONAL! If your unit comes equipped with a GFCI (Ground Fault Circuit Interrupter) electrical receptacle, and there is no power in the receptacle please consider/check the following: •...
