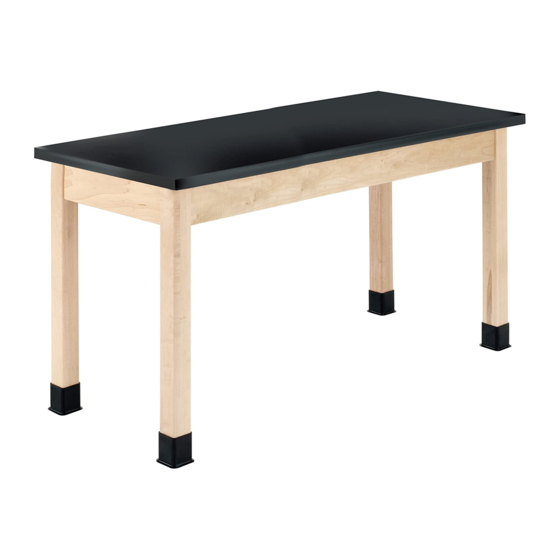

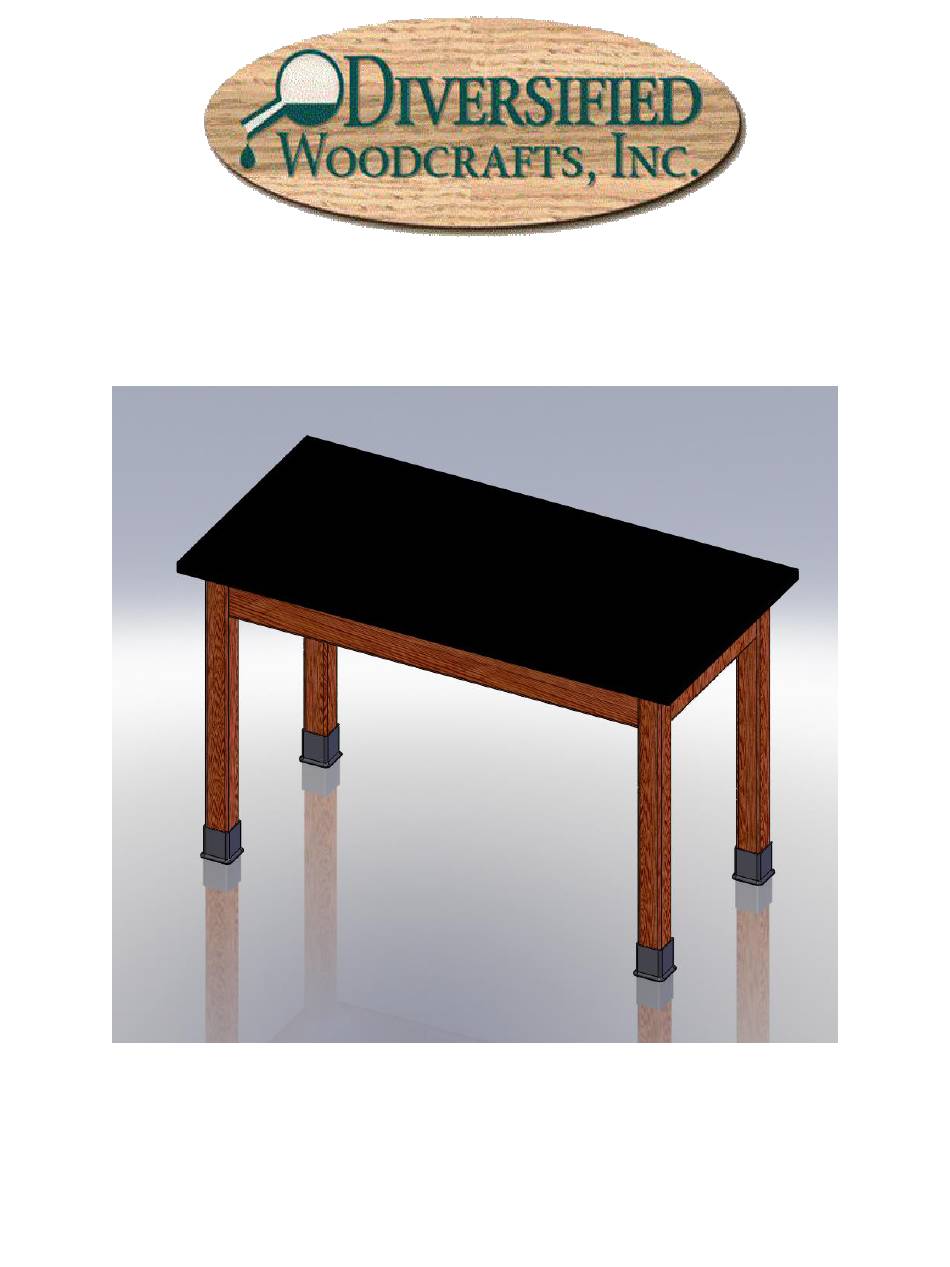

- Page 1 PLAIN APRON TABLES ASSEMBLY INSTRUCTIONS *Model views may not represent exact model purchased...
- Page 2 TABLE OF CONTENTS ASSEMBLY COMPONENTS_______________________________________3 APRON TO LEG ATTACHMENT___________________________________4 LEG ASSEMBLY_________________________________________________5 LEG BRACES & STRETCHERS_____________________________________6...
-
Page 3: Assembly Components
ASSEMBLY COMPONENTS ITEMS INCLUDED PART # PART# 1-LEG KIT,TABLE 1-APRON ASSY,TABLE 1-TOP,TABLE BOX,TABLES 1--SCREW,#12.00X1 1/2 100062 8-SCREW,7MMX90MM 227578 OPTION FOR LEG BRACES 4-SCREW,7MMX50MM, 228564 OPTION FOR STRETCHERS DESCRIPTION DATE Original Created 5-15-09... - Page 4 Assembly Instructions for Tables Items not included but needed for assembly: 1. ½” wrench Instructions: 1. Lay the table on the floor with the apron side up. (Be sure to lay the table on a clean surface so you don’t damage the tabletop.) 2.
- Page 5 3. Apply a lock washer and a 5/16” nut onto each stud bolt. Tighten each nut using a minimum of 12 foot-pounds but not exceeding 17 foot-pounds of torque. 4. Slide leg boots onto the legs with the flared end toward the bottom of the leg. 5.
- Page 6 FIGURE 8A Stretcher Leg Brace 9. Attach leg braces with: (SCREW,7MMX90MM,CONN,ALLENHEAD,BLACK) Provided 10. Attach stretcher with: (SCREW,7MMX50MM,CONN,ALLENHEAD,BLACK) Provided...
