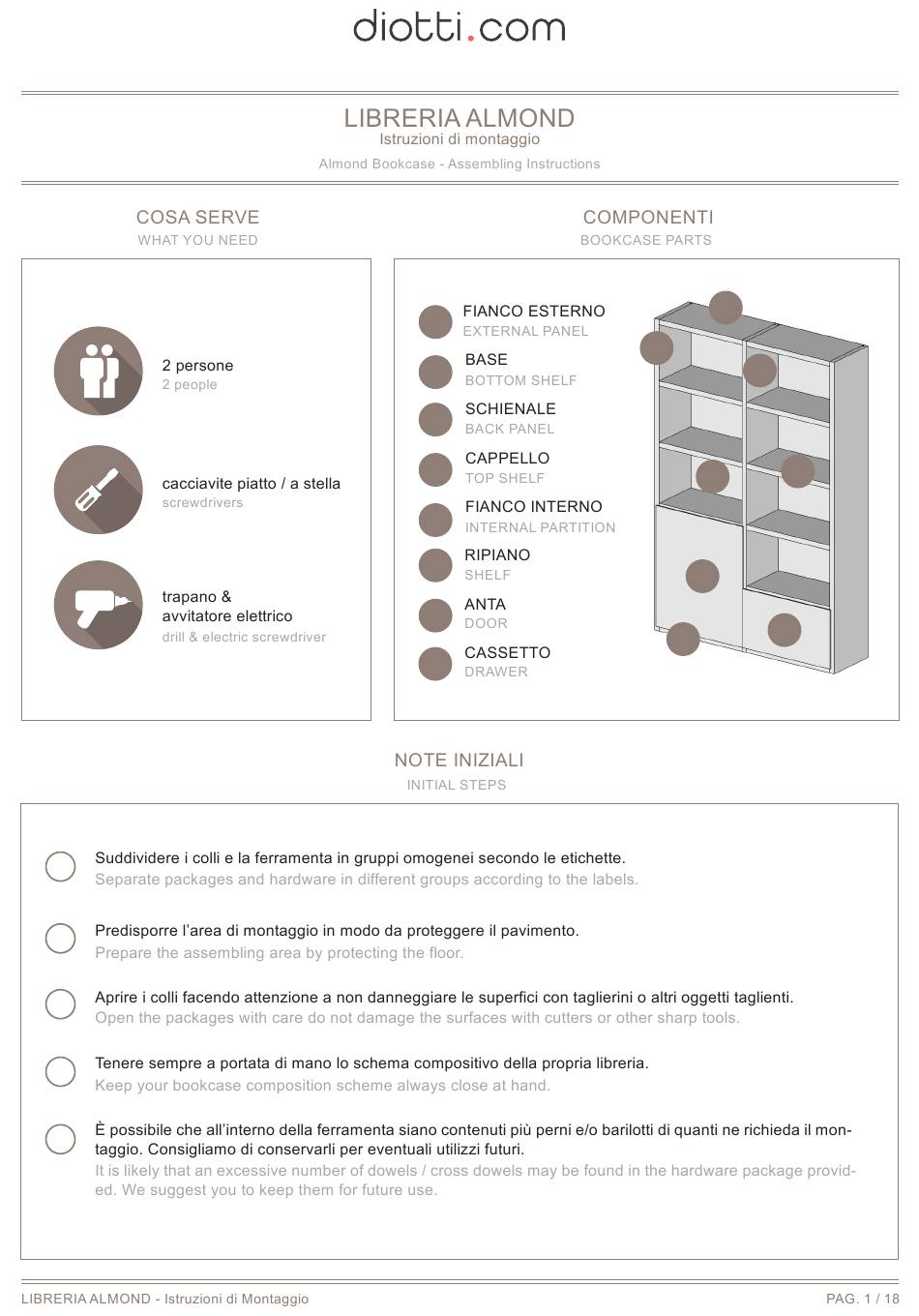

- Page 1 INTERIORS EXPERIENCE SINCE 1911...
- Page 2 DOWELS (4 x external panel / 8 x internal partition)
- Page 3 DISTANZIALI IN PLASTICA e VITI PERNI VITI (4 per montante angolare) TIRANTI REGGIRIPIANI...
- Page 4 Inserire 4 piedini nei fori presenti sotto la base, tenendo la parte sporgente del piedino verso l’esterno. Insert 4 feet in the holes under the bottom shelf, keep the feet protruding part outwards. Avvitare 4 perni nel fianco esterno fino a porre il foro verso l’alto. Screw 4 dowels on the external panel until you have the hole facing upwards.
- Page 5 (x < y) RETRO FRONTE...
- Page 10 13/a 13a.A 13b.A 13/b 13b.B...
- Page 14 Avvitare 2 perni nel fianco fino a porre il foro verso l’alto. Screw 2 dowels in the external panel until you have the hole facing upwards. Spingere la base verso il fianco infilando i perni nei fori presenti sul lato della base, quindi stringere le viti dei piedini. Push the bottom shelf towards the external panel and then insert the dowels in the holes on the bottom shelf side, tighten the feet screws.
