Summary of Contents for Hyco Ara IN30

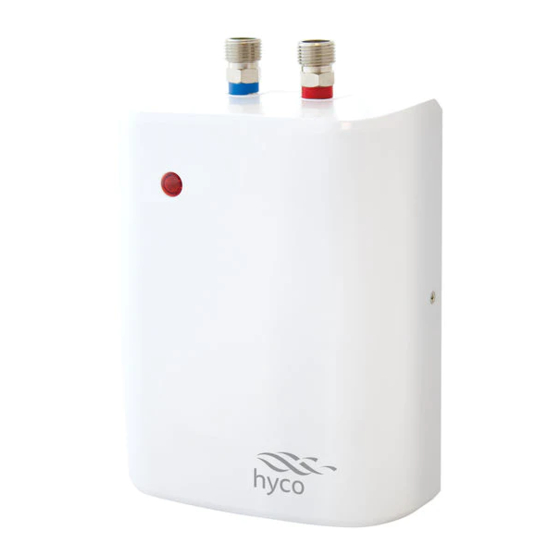

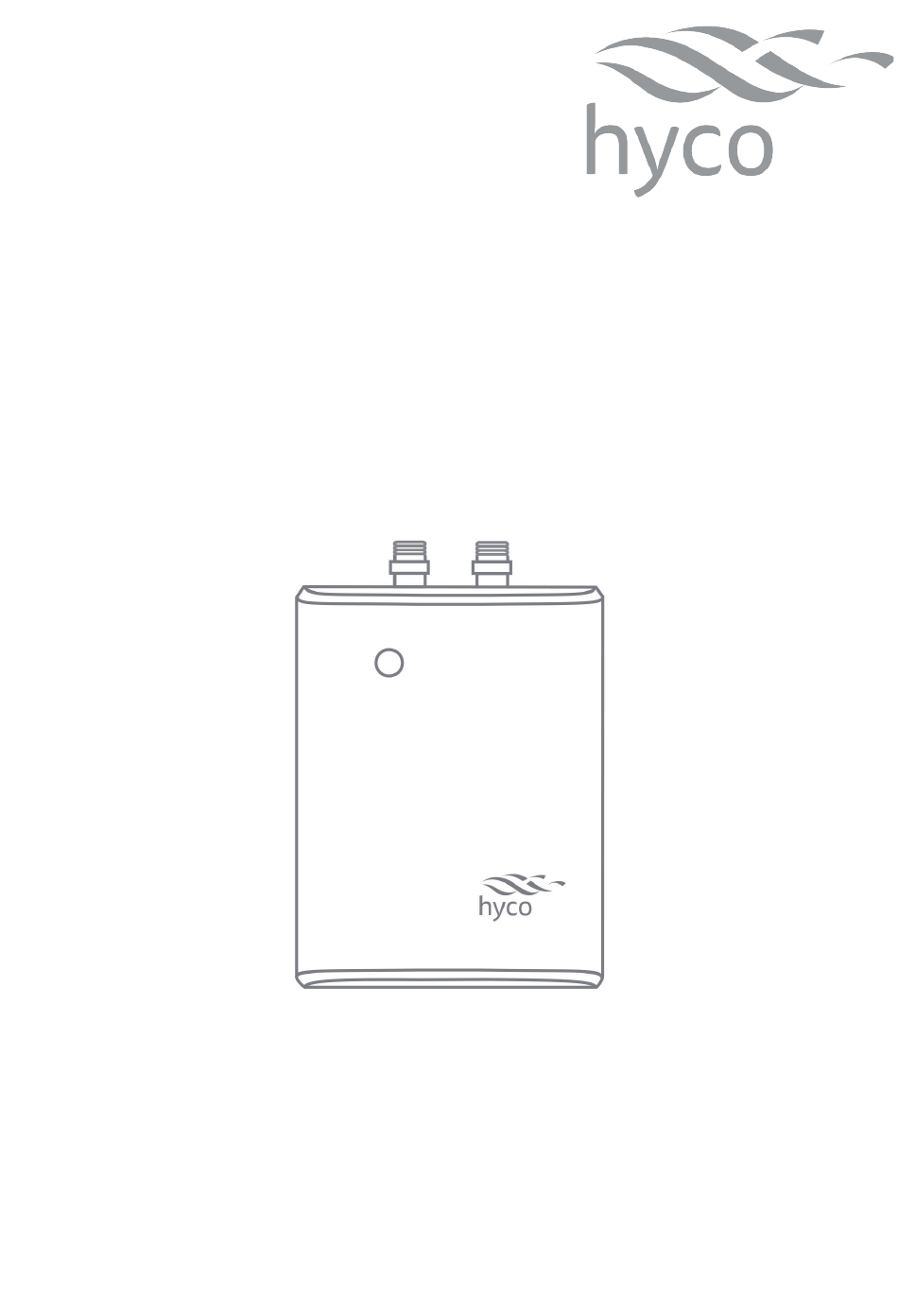

- Page 1 Product Instruction Manual IN30 Instantaneous Inline Water Heater v21.3.1...
-
Page 2: Key Features
Overview Thank you for purchasing an Ara Instantaneous Water Heater. Instantaneous water heaters are very energy efficient as they only consume energy when they are in use, so have no standing losses. The IN30 is intended for light hand washing at a single basin and must be used with a spray head tap. - Page 3 Do not use the appliance if there is any possibility of the water supply being frozen. Never remove the cover of the appliance without first isolating it from the electrical power supply. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 1. Installation Choosing Heater Location This heater should not be installed in a location where the risk of freezing cannot be managed. The heater is not suitable for use with thermostatic mixing valves or taps or to supply a mixer tap. •...
-
Page 5: Plumbing Connection
2. Plumbing Connection Flush supply pipes to remove any debris before connecting the heater to the water supply. This unit is intended to be permanently connected to the mains water supply and should not be connected by a detachable hose-set. The water resistivity must not be less than 1300 Ωcm @15 ... -
Page 6: Electrical Connection
3. Electrical Connection Before switching on power to the unit the system must be full of water and tested for leaks. Electrical installation must be carried out by a qualified electrician in accordance with the latest edition of the IEE wiring regulations. The heater must be earthed. -
Page 7: Operation
4. Operation Before switching on power to the unit the system must be full of water and tested for leaks. This water heater is for low flow hand washing at a single basin only. Instantaneous heaters only heat water as it passes through the tank. Because the maximum power of the heater is fixed there is a limit to the rate at which hot water can be delivered. -
Page 8: Cleaning And Maintenance
5. Cleaning and Maintenance To clean the heater cover only use a clean damp cloth, do not use abrasive compounds. Electrical and plumbing components should be inspected on a regular basis by a suitably qualified/competent person. • Always disconnect the power before commencing any cleaning or maintenance. •... -
Page 9: Specification
6. Specification 230V ~ 50Hz Supply Dimensions H173 x W135 x D80 mm Power 3.0 kW Protection class IP24 Rated current Overheat protection temperature 75 °C Min operating flow rate 1.2 l/min Min operating pressure 0.05 MPa (0.5 bar) Max rated pressure 0.6 MPa (6 bar) Required water resistivity @ 15 ... -
Page 10: Troubleshooting
7. Troubleshooting Problem Likely Fault(s) Solution The LED element on indicator Flow rate is too high Check the supplied flow light is on but the heater cannot restrictor is fitted in the tap achieve a suitable temperature for hand washing (water is too cold) The heater will not operate (no Flow rate is too low... - Page 11 INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE 2012/19/EU. At the end of its working life this equipment must not be disposed of as household waste. It must be taken to a local authority waste collection centre or to a dealer providing this service.
- Page 12 Hyco Manufacturing Ltd Normandy Court Express Way Castleford, WF10 5NR 01924 225 200 01924 225 210 sales@hyco.co.uk hyco.co.uk...
