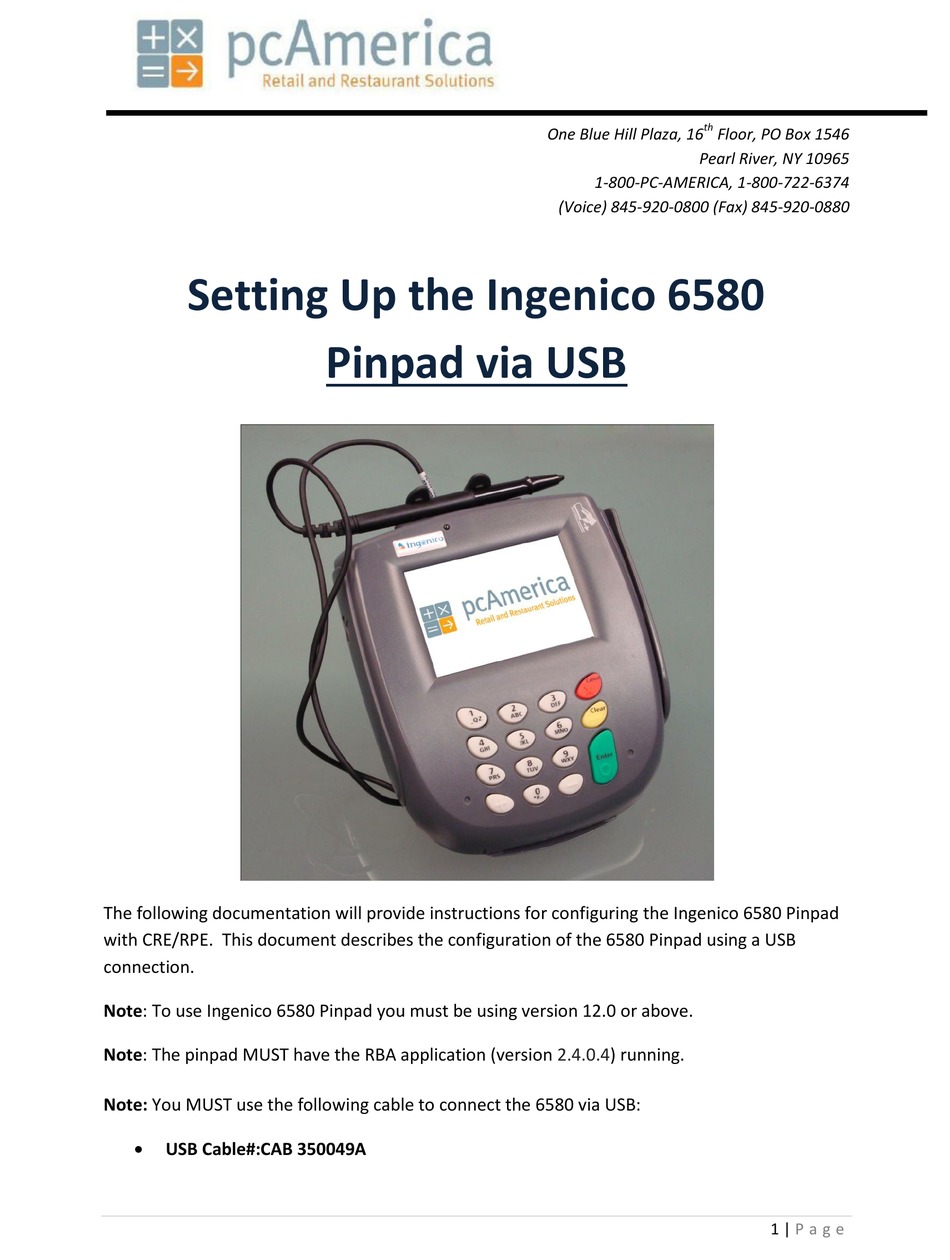

Setting Up the Ingenico 6580
Pinpad via USB
The following documentation will provide instructions for configuring the Ingenico 6580 Pinpad
with CRE/RPE. This document describes the configuration of the 6580 Pinpad using a USB
connection.
Note: To use Ingenico 6580 Pinpad you must be using version 12.0 or above.
Note: The pinpad MUST have the RBA application (version 2.4.0.4) running.
Note: You MUST use the following cable to connect the 6580 via USB:
USB Cable#:CAB 350049A
1 |
P a g e
