Rekluse EXP Installation Notes page 2

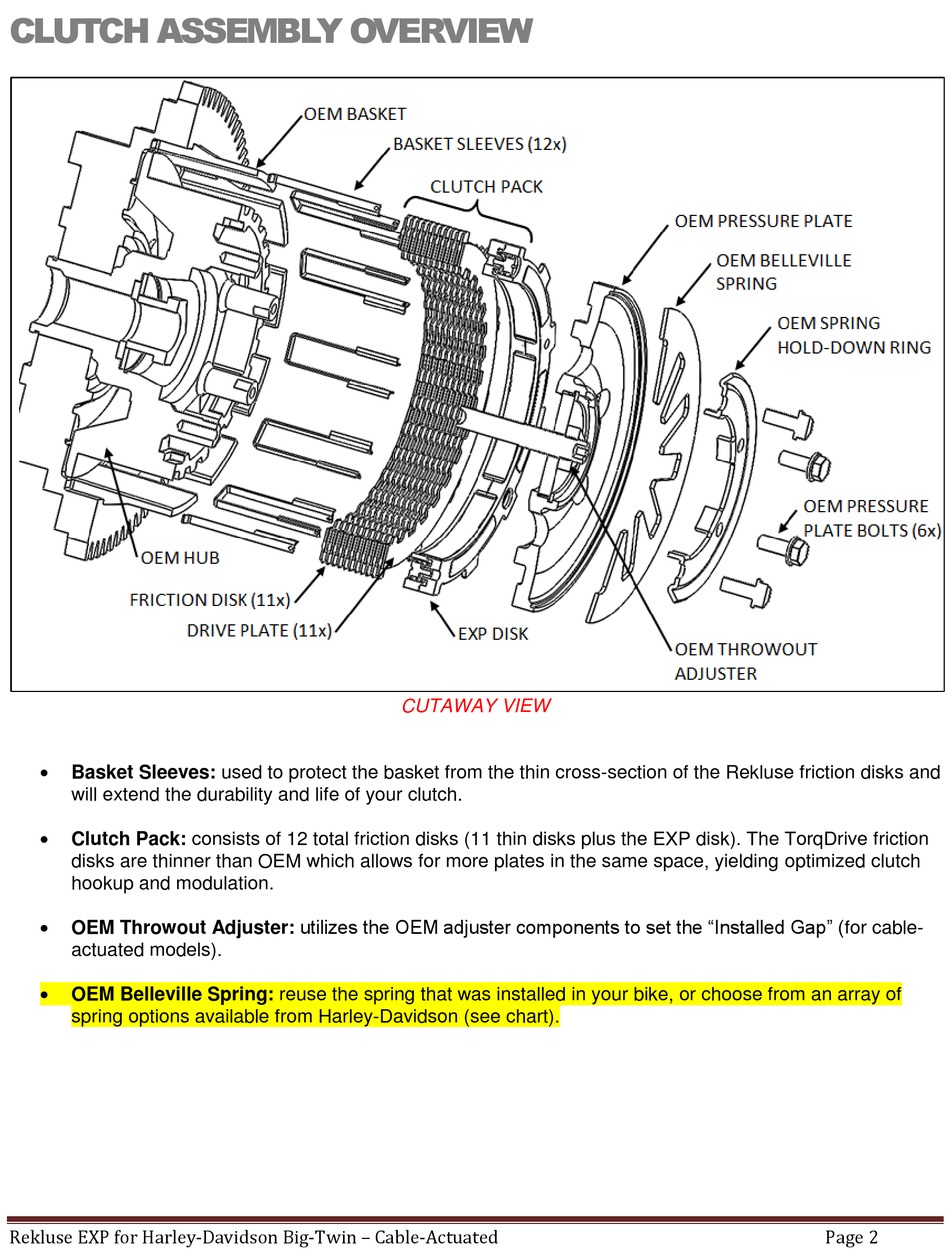

CLUTCH ASSEMBLY OVERVIEW

Basket Sleeves: used to protect the basket from the thin cross-section of the Rekluse friction disks and
will extend the durability and life of your clutch.

Clutch Pack: consists of 12 total friction disks (11 thin disks plus the EXP disk). The TorqDrive friction
disks are thinner than OEM which allows for more plates in the same space, yielding optimized clutch
hookup and modulation.

OEM Throwout Adjuster: utilizes the OEM adjuster components to set the "Installed Gap" (for cable-
actuated models).

OEM Belleville Spring: reuse the spring that was installed in your bike, or choose from an array of
spring options available from Harley-Davidson (see chart).
Rekluse EXP for Harley-Davidson Big-Twin – Cable-Actuated
CUTAWAY VIEW
Page 2
