Installation Manual

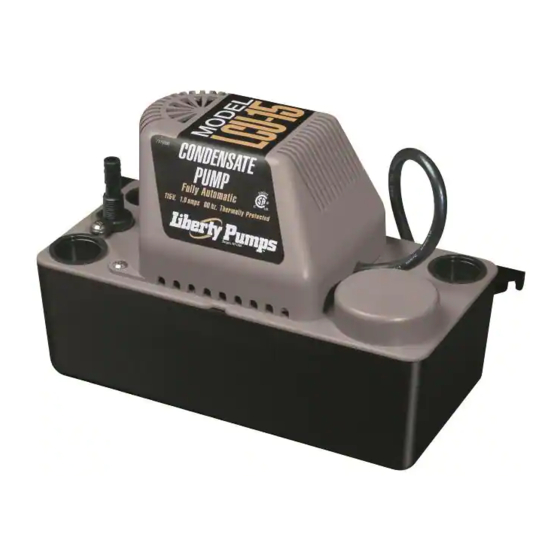

LCU-Series Condensate Pumps
Models
LCU-15
115V
LCU-15S
115V
Safety Switch
* Models ending with a "T" suffix (not listed) include 20' of clear discharge tubing
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 800-543-2550
fax: 585-494-1839
www.LibertyPumps.com
LCU-20S
115V
Safety Switch
LCU220S
230V
Safety Switch
Installer: Manual must remain with
owner/operator.
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2020 All rights reserved.
LCU-SP20S
115V
Safety Switch
Shallow Pan Design
LCU-SP220S
230V
Safety Switch
Shallow Pan Design
Prior to installation, record information from pump
nameplate for future reference:
Model:
Serial:
Mfg Date:
Install Date:
7196000G
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Liberty Pumps LCU Series
Summary of Contents for Liberty Pumps LCU Series
- Page 1 Keep this manual handy for future reference. Serial: Bergen, NY 14416 For replacement manual, visit LibertyPumps.com, ph: 800-543-2550 Mfg Date: or contact Liberty Pumps at 800-543-2550. fax: 585-494-1839 Install Date: www.LibertyPumps.com Retain dated sales receipt for warranty. Copyright © Liberty Pumps, Inc. 2020 All rights reserved.
-
Page 2: Safety Guidelines
For cord replacement: power cord must be of the same Safety Precautions length and type as originally installed on the Liberty Pumps product. Use of incorrect cord may lead to exceeding the electrical rating of the cord and could result in death, serious RISK OF ELECTRIC SHOCK injury, or other significant failure. -
Page 3: Maintenance And Troubleshooting
The thread is 1/4” NPT. Connect the pipe or the discharge hose to the discharge of the pump. Hand-tighten Only. Over-tightening may cause the pump housing to crack. Once the discharge tubing has been 7196000G Copyright © Liberty Pumps, Inc. 2020 All rights reserved. 3 | EN... -
Page 4: Troubleshooting
20’ LCU-SP220S been removed. Liberty Pumps, Inc. shall not be liable for any loss, damage, or Pump Runs and Removes Water But Does Not Shut Off expenses resulting from installation or use of its products, or for indirect, incidental, and consequential damages, including costs of Float is stuck in the “on”... -
Page 5: Manual De Instalación
Para obtener un manual de reemplazo, visite Fecha de LibertyPumps.com, o comuníquese con Liberty Pumps al teléfono: 800-543-2550 fabricación: 1-800-543-2550. fax: 585-494-1839 Fecha de Conserve el recibo de venta fechado para la garantía. www.LibertyPumps.com instalación: Copyright © Liberty Pumps, Inc. 2020 Todos los derechos reservados. -
Page 6: Información General
Lea con atención estas instrucciones antes de instalar la bomba. Para el reemplazo del cable: cable de alimentación debe ser Todas las bombas de Liberty Pumps se someten a pruebas en del mismo largo y tipo que el cable originalmente instalado en fábrica para garantizar un funcionamiento adecuado. -
Page 7: Instalación De La Bomba
Los No se deben realizar trabajos de reparación durante el período de hilos se podrán conectar en serie con el circuito de bajo 7196000G Copyright © Liberty Pumps, Inc. 2020 Todos los derechos reservados. 3 | ES... -
Page 8: Garantía Limitada De Liberty Pumps Wholesale Products
Verifique para asegurarse de que esté instalada correctamente. Liberty Pumps, Inc. garantiza que los productos al por mayor de Liberty Pumps están libres de defectos de fábrica en cuanto a Examine la tubería de desagüe para identificar torceduras o materiales y mano de obra por un período de tres (3) años a partir... -
Page 9: Manuel D'installation
Pour obtenir un manuel de remplacement, visiter le site Date de LibertyPumps.com, ou communiquer avec Liberty Pumps téléphone: 800-543-2550 fabrication: au 1-800-543-2550. télécopieur: 585-494-1839 Date Conserver le reçu de vente daté pour la garantie. www.LibertyPumps.com d’installation: Copyright © Liberty Pumps, Inc. 2020 Tous les droits sont réservés. -
Page 10: Consignes De Sécurité
être conformes à tous les codes et ordonnances codes locaux en vigueur. Tout le câblage doit être effectué par fédéraux, provinciaux et locaux applicables. personelle qualifié. 2 | FR Copyright © Liberty Pumps, Inc. 2020 Tous les droits sont réservés. 7196000G... -
Page 11: Installation De La Pompe
Trop serrer peut endommager le boîtier de Remontez le système et vérifiez son fonctionnement. la pompe. Une fois le tuyau d'évacuation prolongé jusqu'à la 7196000G Copyright © Liberty Pumps, Inc. 2020 Tous les droits sont réservés. 3 | FR... -
Page 12: Dépannage
La pompe est installée sur une surface non plane. loi, toute responsabilité pour dommages consécutifs ou L'interrupteur est défectueux. Consulter le fabricant. accessoires en vertu de toutes autres garanties. 4 | FR Copyright © Liberty Pumps, Inc. 2020 Tous les droits sont réservés. 7196000G...
