RE/REX Series Installation Manual

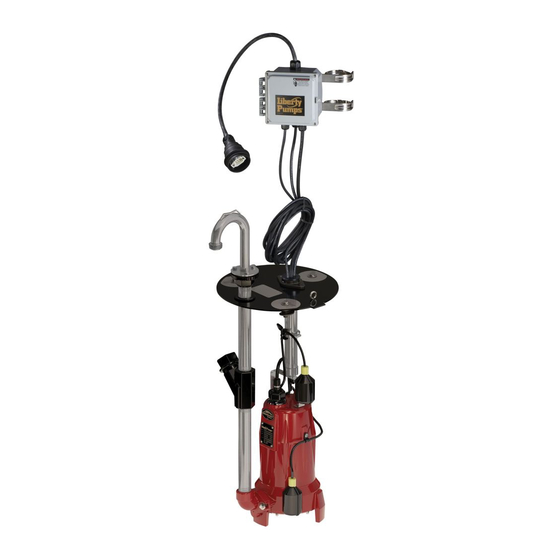

Omnivore Grinder Pump Retrofit Unit
For E/One* GP200, GP2000 and EXTREME D-Series
Core replacement for GP200 and GP2000:
LSG202-RE
LSGX202-RE
Core replacement for Extreme D-Series:
LSG202-REX
LSGX202-REX
*Do not throw away or lose this manual. Keep it with the installation
and refer to it often.
* E-One is a registered Trademark of Environment One Corporation and is not affiliated with Liberty Pumps.
7000 Apple Tree Avenue
Bergen, NY 14416
Phone: (800) 543-2550
Fax: (585) 494-1839
www.libertypumps.com
2Hp, 208/230V, 1 phase, Automatic
2Hp, 208-230V, 1 phase, Automatic
2Hp, 208/230V, 1 phase, Automatic
2Hp, 208-230V, 1 phase, Automatic
©Copyright 2012 Liberty Pumps Inc. All rights reserved
IMPORTANT:
Prior to installation, record Model, Serial
Number, and Code Number from pump
nameplate for future reference.
MODEL _____________________
SERIAL _____________________
CODE
_____________________
INSTALLATION
DATE
_____________________
5672000H
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Liberty Pumps Omnivore RE Series
Summary of Contents for Liberty Pumps Omnivore RE Series
- Page 1 *Do not throw away or lose this manual. Keep it with the installation and refer to it often. * E-One is a registered Trademark of Environment One Corporation and is not affiliated with Liberty Pumps. IMPORTANT: Prior to installation, record Model, Serial Number, and Code Number from pump nameplate for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION GENERAL INFORMATION------------------------------------------------------------------------------ 3 SECTION INTRODUCTION-------------------------------------------------------------------------------------------- 4 SECTION INSTALLATION ------------------------------------------------------------------------------------------- 4-6 SECTION OPERATION -------------------------------------------------------------------------------------------------7 TROUBLESHOOTING CHART ------------------------------------------------------------------------ 9 PANEL INSTALLATION SHEET----------------------------------------------------------------------- 10 SECTION WARRANTY INFORMATION--------------------------------------------------------------------------- 11 ©Copyright 2012 Liberty Pumps Inc. All rights reserved - 2 -... -
Page 3: Section 1 General Information
If pump is installed during construction before power is available, it must be protected from the environment to prevent water from entering through the cord plug end, etc. ©Copyright 2012 Liberty Pumps Inc. All rights reserved - 3 -... -
Page 4: Section 2 Introduction
STORAGE BEFORE USE Liberty pumps are shipped from the factory ready for installation and use. They should be held in storage if the pump station is not complete. If storage is necessary, the pump should remain in its shipping container. It should be stored in a warehouse or storage shed that has a clean, dry temperature-stable area where the pump and its container should be covered to protect it from water, dirt, dust, etc. - Page 5 The supply power must be turned off. Liberty Pumps recommends the use of a 30 amp circuit breaker to prevent nuisance tripping due to spikes in amp draw that may occur during heavy grinding events. Before making any changes, the amperage capacity of the branch circuit wiring and components must be verified and upgraded as required to conform to applicable codes and standards.
- Page 6 Specifically, confirm that the alarm float activates before hitting top cover. Although the Liberty Pumps RE/REX models come equipped with 6-pin connectors that mate perfectly with existing control hardware, the following table may be used for troubleshooting, repair, or custom installation purposes.
-
Page 7: Section 4 Operation
PERIODIC MAINTENANCE & LUBRICATION Liberty pumps are designed for long lasting, efficient and reliable service with a minimum of preventive maintenance checks. These checks are few but will add years of satisfactory service to the life of the pump. Maintenance checks should be performed at the intervals stated. - Page 8 NOTE: Single stage units (“LSG” models) may not meet pressure requirements in all applications. Use of the 2-stage (“LSGX” models) may be required in certain applications. Consult factory for proper sizing and technical assistance where forced pressure mains or multiple homes tie into a common waste line. ©Copyright 2012 Liberty Pumps Inc. All rights reserved - 8 -...
-
Page 9: Troubleshooting Chart
B. Damaged O-Ring between oil B. Replace O-Ring chamber and motor plate C. Damaged cable C. Replace cable IF SYMPTOMS CONTINUE, CONSULT THE LIBERTY PUMPS PRODUCT SERVICE DEPT. 1-800-543-2550 ©Copyright 2012 Liberty Pumps Inc. All rights reserved - 9 -... -
Page 10: Panel Installation Sheet
ILLUSTRATION 2 CONTROL PANEL INSTALLATION ©Copyright 2012 Liberty Pumps Inc. All rights reserved - 10... - Page 11 Liberty Pumps, Inc. shall not be liable for any loss, damage or expenses resulting from installation or use of its products, or for consequential damages, including costs of removal, reinstallation or transportation.
