MicaSense RedEdge-M Manual
Professional multispectral camera kit
Hide thumbs
Also See for RedEdge-M:
- User manual (47 pages) ,
- Integration manual (10 pages) ,
- Integration manual (13 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for MicaSense RedEdge-M
Summary of Contents for MicaSense RedEdge-M
- Page 1 Professional Multispectral Camera Kit...
- Page 2 4. Connect to camera WiFi using WiFi-enabled device WiFi SSID: rededge [ RedEdge-M Serial Number ] Password: micasense (The serial number can be found on the back side of your RedEdge-M camera) 5. Type 192.168.10.254 into browser to access camera home page 6. Click...
-
Page 3: What's Inside

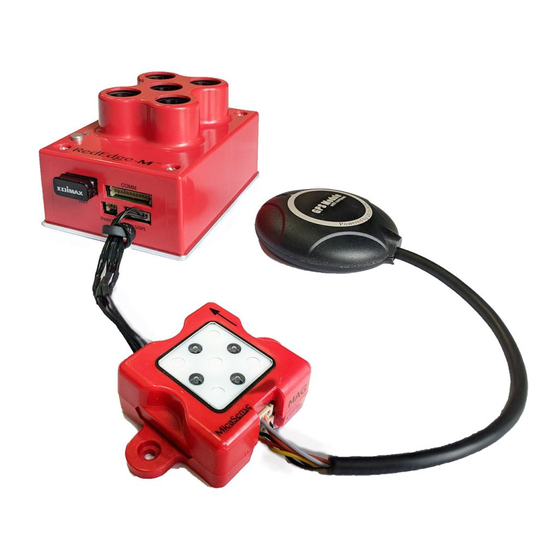

GPS/MAG module SD Card MicaSense RedEdge-M camera USB WiFi Dongle RedEdge-M Wire Integration Kit RedEdge-M Power Cable (3-pin to USB) 60 cm DLS Cable (6-pin) 15 cm Power/Trigger Cable (3-pin) 15 cm Ethernet Cable (12-pin) 2 Ferrite Beads 4 Mounting Screws w/ Washers... - Page 4 DLS Quick Start Guide Read these instructions or go to micasense.com/dls for details Installation Instructions: • You must update your RedEdge-M RedEdge-M firmware to v3.2.0 or newer via Connect 6-pin cable from Connect DLS to port MicaSense Atlas at camera to CAM port labeled DLS/GPS atlas.micasense.com...
- Page 5 DLS Mag Calibration video • Before calibration, move away from large metal objects (open field is best) • Connect to WiFi interface per instructions in RedEdge-M User Manual • Go to the Settings tab in the RedEdge-M web interface •...
- Page 6 5. Ensure the DLS is parallel to the ground and free of shadows 6. Take an image with the RedEdge-M camera that includes the full panel (lid and base) in the image frame Note: Additional instructions are included...
- Page 7 Start analyzing your images MicaSense Atlas: Intelligent analytics to harness the power of smart sensors PROCESS ANALYZE ANYWHERE Atlas is a simple to use cloud based platform built to provide intelligent solutions for precision agriculture. After processing raw data, turn imagery into actionable information using powerful analytics and visualization tools.
- Page 8 Data collection guidelines Plan a successful mission Fly within 2 hours of local solar noon Fly within 2 hours of local solar noon to avoid harsh shadowing that can affect your Ensure sidelap and frontlap yields a results. 75% overlap Capture CRP image immediately before Solar Noon and immediately after each flight...
- Page 9 When planning your mission, pay careful attention to the distance between tracks. Both sidelap and frontlap should be configured to yield a 75% overlap of images. Fly beyond field boundaries to maximize coverage <75% <75% Frontlap Sidelap...
-
Page 10: Don't Forget To Register
Don’t Forget to Register! Product registration helps ensure you get full access to our support services and product warranties. At MicaSense, we strive to provide the highest quality of support for our users. Register your RedEdge-M at micasense.com/product-registration Questions? Email us at support@micasense.com... - Page 11 Notes:...
- Page 12 Atlas RedEdge-M Kit. account. At MicaSense, we’re at the forefront of multispectral sensor development and together with our customers, we’re pushing the boundaries on agricultural data analysis. We get the right tools into your hands so you can make the right call at the right time—with clear, actionable...
