Summary of Contents for MicaSense RedEdge-MX DJI M300 RTK Quick Mount Gen. 2

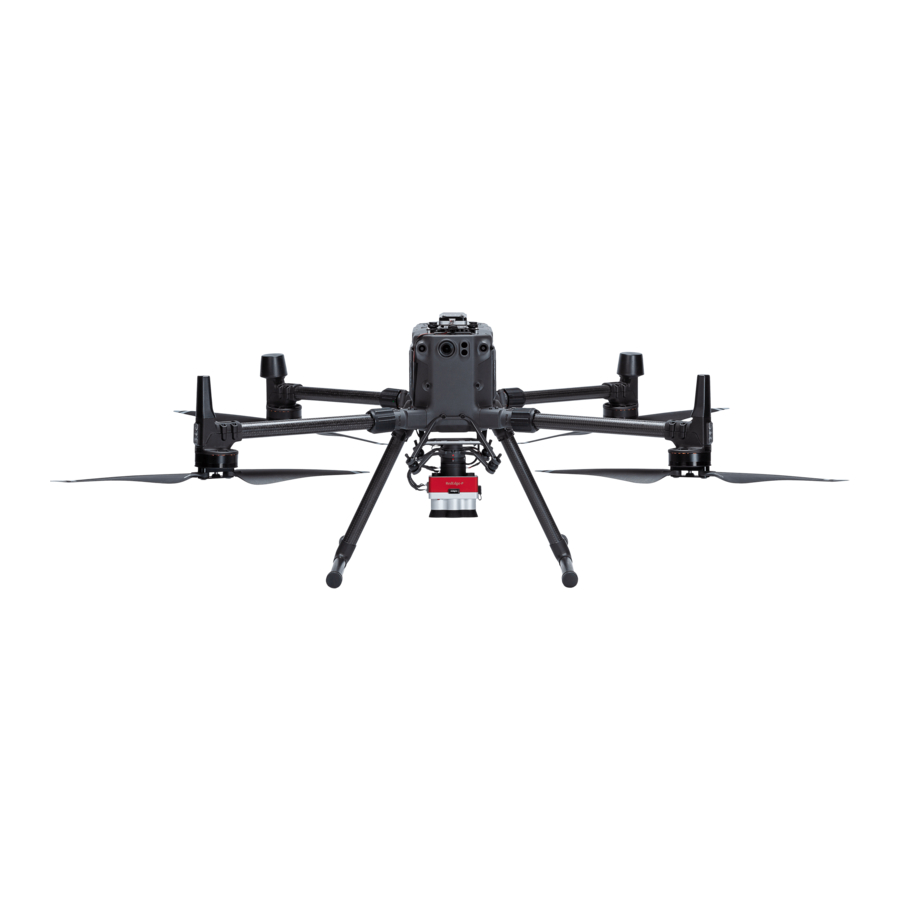

- Page 1 RedEdge-MX™ & Altum™ DJI M300 RTK Quick Mount G en. 2 INTEGRATION GUIDE Rev 01 - July 2020 P/N: 805-00079 ...
-
Page 2: Table Of Contents
Table of Contents Thank you for your purchase! 2 What’s inside? 2 What’s Required? 3 Let’s get started! 3 Assembling the DLS2 mount 3 RedEdge-MX Instructions 5 Attaching the RedEdge-MX and the Mount 5 Attaching the RedEdge-MX and DLS 2 to the M atrice 6 ... -
Page 3: Thank You For Your Purchase
Thank you for your purchase! These instructions show how to integrate the MicaSense RedEdge-MX and/or Altum with a DJI M300 RTK. It covers attaching mounting brackets included in the kit, powering the camera from the host system, and placement of the Downwelling Light Sensor (DLS2) unit. ... -
Page 4: What's Required
What’s Required? ● #1 Phillips Screwdriver ● Cutting tool - such as scissors or diagonal cutter ● 1.5 mm hex wrench ● 2 mm hex wrench Let’s get started! Warning: Installation of this kit into a drone should be done by an experienced person, in adherence with all recommendations and guidelines of the drone ... - Page 5 7. Use the included zip ties to ensure that the DLS2 cable is routed neatly and secured to the gimbal connectors at the bottom of the drone. A cutting tool should be used in order to cut off excess plastic from the zip ties. Be sure that the cable and zip ties are not blocking any cameras or sensors surrounding the drone. ...
-
Page 6: Rededge-Mx Instructions
RedEdge-MX Instructions Attaching the RedEdge-MX and the Mount 1. Locate the two M3 x 6 mm socket head cap screws, M3 lock washers, and Quick Mount Gen. 2 Adapter. 2. Using the counterbore screw holes, attach the mount to the back of the RedEdge-MX. Make sure the mount 8-pin camera port is located on the same side as the camera ... -
Page 7: Attaching The Rededge-Mx And Dls 2 To The Matrice
Quick Mount Gen 2 Adapter attached to RedEdge-MX Attaching the RedEdge-MX and DLS 2 to the Matrice Once assembled, the Quick Mount Gen. 2 can quickly and easily be installed or removed from the Matrice. Power is provided by the Matrice via the Quick Mount Gen 2. ... -
Page 8: Attaching The Altum And Dls 2 To The Matrice
Attaching the Altum and the Mount 1. Locate the two M3 x 8 mm socket head cap screws, M3 lock washers, and Quick Mount Gen 2 Adapter. 2. Using the counterbore screw holes, attach the mount to the back of the Altum. Make sure the 8-pin camera port found on the Quick Mount is located on the same side as ... - Page 9 1. Attach the assembled Quick Mount Gen. 2 (with connected Altum) to the Matrice using the DJI lock mechanism on the drone. 2. Plug the DLS 2 cable from the DLS 2 port to the Quick Mount Gen. 2 “6-pin DLS” port. 3.
-
Page 10: Support
MicaSense RedEdge-MX & Altum Quick Mount Gen. 2 for DJI Matrice 300 RTK Instructions. The contents of this manual are subject to change without notice. MicaSense, Inc. assumes no liability for incidental or consequential damages arising from the ... - Page 11 PROCESS With MicaSense sensors, you own your data. You’re not limited to a particular processing platform. You can choose whichever platform is best for you, your customer, or your project. ...
- Page 12 Located in Seattle, Washington, MicaSense delivers integrated solutions for data gathering, processing, and analytics across the global agriculture market. With decades of expertise in widely varied UAV applications, the MicaSense team is redefining remote sensing technology and pioneering new ways to collect and analyze information. ...
- Page 13 Revision History Revision Description Date 01 Initial Release 21 July 2020 Rev 01 - July 2020 PAGE 12 ...
