1
INTRODUCTION

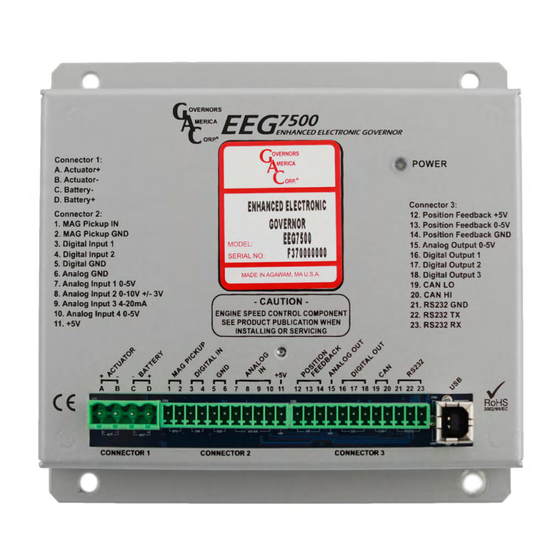

GAC's EEG7500 enhanced electronic speed controller is designed to regu-
late engine speed on diesel and gaseous fueled engines. When paired with
a GAC actuator the EEG is a suitable upgrade for any mechanical gover-
nor system that needs flexibility, precision, or accurate control of governed
speed. The EEG7500 is designed for industrial engine applications from
generator sets, mechanical drives, pumps, and compressors to off-road mo-
bile equipment. Configuring is easy with GAC's free
The EEG7500 supports:
Flexible actuator compatibility including bidirectional actuators with or
Š
without actuator position feedback signal, bi-directional torque motors,
and Bosch-style throttle bodies.
Fully configurable digital and analog inputs and outputs
Š
Inputs: 5 analog, 2 digital
Š
Outputs: 1 analog, 3 digital
Š
0 - 5 V DC, 4 - 20 mA, 0 - 10 V DC ±3 V Input Ranges
Š
Speed Sync using CAN bus
Š
Virtual Input/Output Routing
Š
Feedback Speed Control Mode
Š
Variable Speed Capability
Š
Fuel Curve
Š
EEG7500 supports three
operating
Non-Feedback Speed Control (NFSC) provides standard PID governing function for use with proportional actuators. No position
Š
feedback sensor is required. PID (Proportional, Integral, Derivative) governor functions are optimized for best response and control
of the requested engine revolutions per minute (RPM).
Positioner Mode (PM) provides actuator positioning control and is used with proportional actuators or bidirectional (torque motor)
Š
actuators. A position feedback sensor is required. PID positioner functions are optimized for best response and control of the
requested actuator position.
Feedback Speed Control (FSC) combines NFSC and PM modes for use with proportional or bidirectional (torque motor) actuators.
Š
A position feedback sensor is required. The Speed PID position request is the input to the Positioner loop, the Position PID
optimizes response and control of the requested actuator position.
2
EEG7500 SPECIFICATIONS
Performance
Isochronous Operation
Governed Speed /
Sensor Frequency Range
Droop Range
comPLIance / STanDarDS
Agency
Communications
PHYSIcaL
Dimension
Weight
Mounting
reLIaBILITY
Vibration
Shock
Testing
LeD
Solid Green
Blinking Green
Unlit
Enhanced Electronic Speed Controller
GAConfig Tool
modes:
100 - 12 kHz
Up to 25 % regulation
CE and RoHS Requirements
USB, RS-232-C, SAE J1939
See
Section
3,
Controller Installation
18.4 oz [0.52 kgf]
Any position, vertical preferred
10 - 2000 Hz @ 7 g, per SAE J1455
20 g, 11 ms per SAE J1455
100 % Functional Testing
Ready. Controller is powered on.
Warning. Engine service due, or other. Dis-
played in GAConfig Tool System Status.
EEG7500
software.
InPUT / oUTPUT
± 0.25 %
Supply
Polarity
Power Consumption
Speed Sensor Signal Input
Actuator Output
Load Share /
Synchronizer Input
Reverse Power Protection
Transient Voltage Protection
Digital Switch Output(s)
envIronmenTaL
Ambient Temperature
Relative Humidity
Salt Spray
All Surface Finishes
No power.
1
12 - 24 V DC Battery systems
Negative Ground (Case Isolated)
200 mA continuous plus actuator current
400 mA with excitation at MAX load current
0 - 10 V DC (5 V Nominal, Selectable
Polarity, 145 Hz / V Sensitivity)
Protected to -40 V DC
-40 to 85 °C [-40 to 180 °F]
up to 90 % Non-Condensing
at 38 °C [100 °F] (per SAE J1455)
Fungus Proof and Corrosion Resistant
EEG7500 Enhanced Electric Governor 1-2021-A6
Governors America Corp. © 2021 Copyright All Rights Reserved
(6.5 to 32 V DC)
1.0 - 60.0 V RMS
10 A Continuous
±
or 0 V
3 V DC
60 V DC
Rated to 2 A DC
ASTM B117
PIB5115
