1

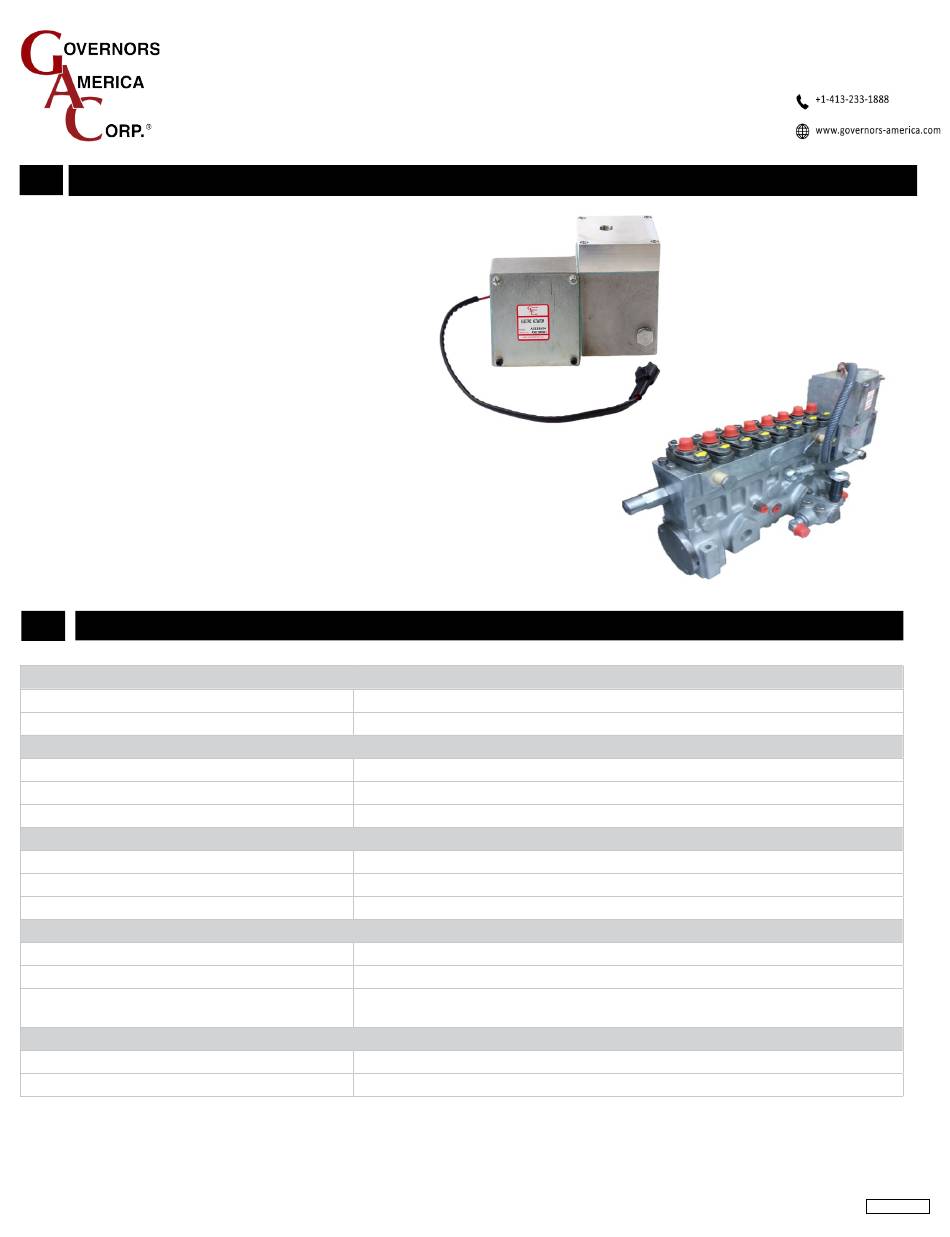

INTRODUCTION

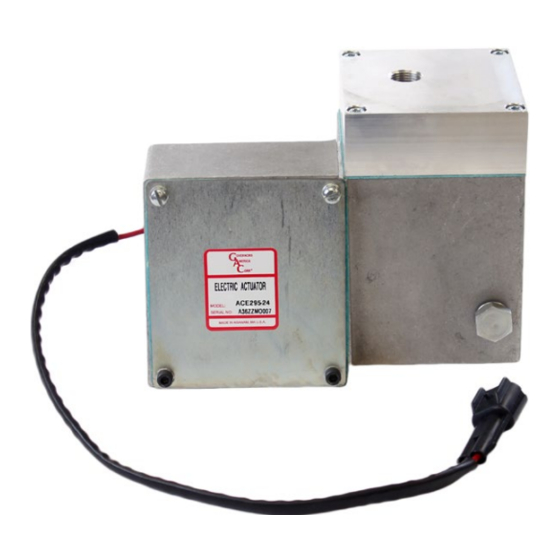

The GAC ACE295 Series Electric Actuator is designed
to mount directly on Bosch 'P' 9000 and 10000 series
fuel injection pumps in place of the mechanical governor.
The 295 Series actuators provide a high performance
integrated control system with no external linkages or
brackets.
The actuator is designed with two isolated chambers
that eliminates the possibility of any magnetic particles
collecting and jamming the actuator. One chamber
contains the oil and houses the actuator linkage while
the second chamber houses the electromagnetic
components.
The 295 Series typically outlasts the life of a diesel
engine. Camshaft bearing retainer kits and position
feedback sensor equipped versions are also available.
2
SPECIFICATIONS
PERFORMANCE
Force
Operating Stroke
POWER INPUT
Operating Voltage
Normal Operating Current
Maximum Current Continuously Rated
ENVIRONMENT
Operating Temperature Range
Relative Humidity
All Surface Finishes
PHYSICAL
Dimensions
Weight
Mounting
MATING HARDWARE
Wiring Harness - ACE295
Wiring Harness - ACE295F-24
ACE295 Series
Integrated Pump Mounted Electric Actuator
Directly on 'P' 9000 and 'P' 10000 Bosch fuel injection pumps in place of the
See Section 3, INSTAllATION DIAGRAM
mechanical governor. Gasket supplied with kit.
1
Governors America Corp. © 2020 Copyright All Rights Reserved
13.2 lbf (58.7 N)
0.79 in +/- 0.04 in (20 mm +/- 1 mm)
-40 °F to +185 °F (-40 °C to +85 °C)
up to 100 %
Fungus Proof and Corrosion Resistant
11 lbf (4.9 kgf)
ACE295 Series Actuator 3-2020-C
24 V DC
2.4 A
4.5 A
CH1215
CH1515
PIB4160
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GAC ACE295 Series
Summary of Contents for GAC ACE295 Series
- Page 1 ACE295 Series Integrated Pump Mounted Electric Actuator INTRODUCTION The GAC ACE295 Series Electric Actuator is designed to mount directly on Bosch ‘P’ 9000 and 10000 series fuel injection pumps in place of the mechanical governor. The 295 Series actuators provide a high performance integrated control system with no external linkages or brackets.
- Page 2 A secondary shutoff device, such as a fuel solenoid must be used. PREPARING THE FUEL PUMP If the pump is equipped with a mechanical governor, it must be removed. GAC recommends that the modification be done by a qualified fuel injection shop.
- Page 3 15. After the maximum fuel delivery has been adjusted reinstall the saved gasket, four cap screws and cover. 16. Access the set screw as required through the actuator cover. SET SCREW ACE295 Series Actuator 3-2020-C PIB4160 Governors America Corp. © 2020 Copyright All Rights Reserved...
- Page 4 EC1000 or EC1010 electrical connector that mates with the actuator must be pre-wired in a configuration to match the system voltage. Cable Harnesses CH1215, and CH1515 are available from GAC. Refer to MATING HARDWARE in section 2 ,SPECIFICATIONS. CABLE HARNESS Fabricate a cable harness to connect the speed control unit to the actuator.
