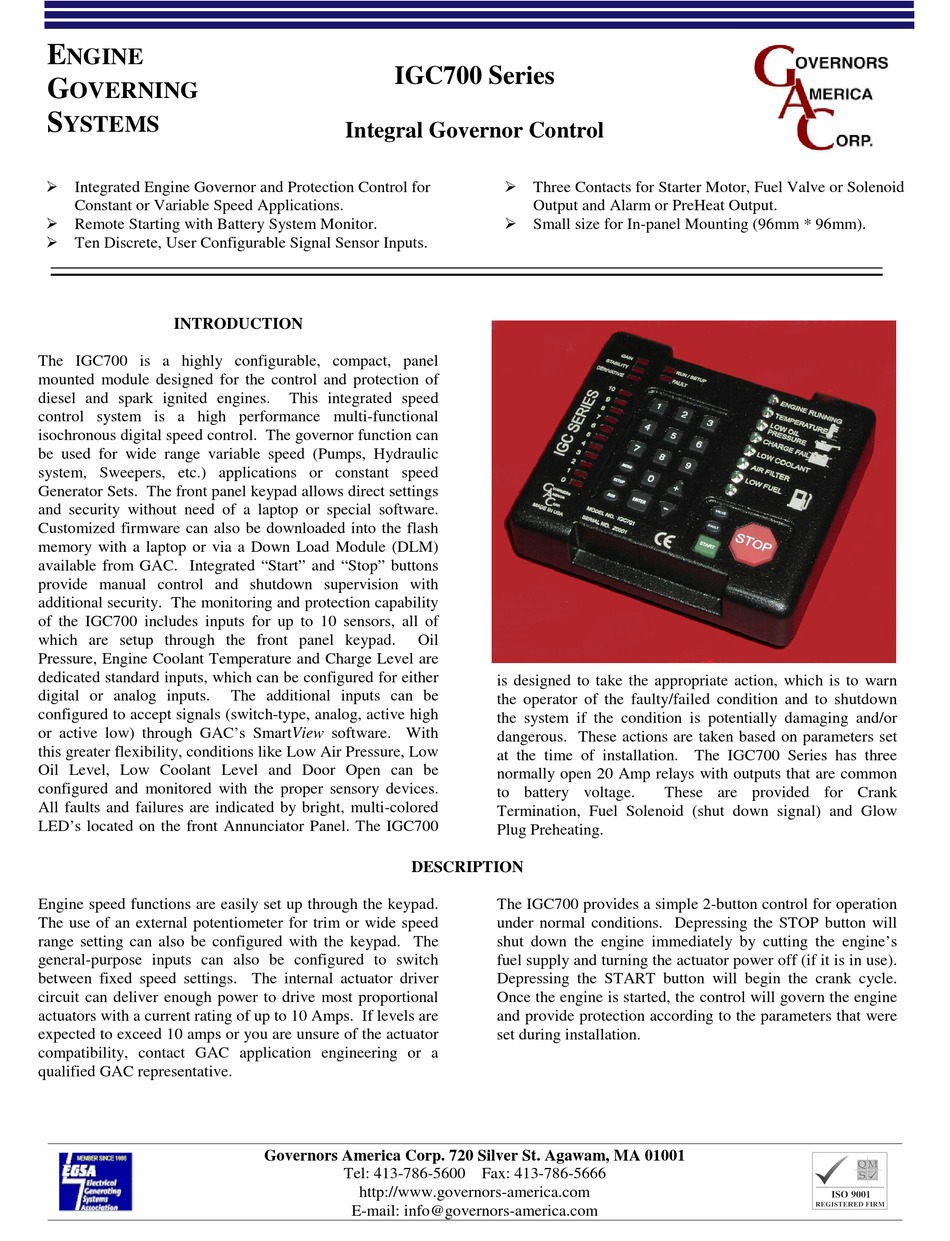

 Integrated Engine Governor and Protection Control for
Constant or Variable Speed Applications.
 Remote Starting with Battery System Monitor.
 Ten Discrete, User Configurable Signal Sensor Inputs.
INTRODUCTION
The IGC700 is a highly configurable, compact, panel
mounted module designed for the control and protection of
diesel and spark ignited engines.
control system is a high performance multi-functional
isochronous digital speed control. The governor function can
be used for wide range variable speed (Pumps, Hydraulic
system, Sweepers, etc.) applications or constant speed
Generator Sets. The front panel keypad allows direct settings
and security without need of a laptop or special software.
Customized firmware can also be downloaded into the flash
memory with a laptop or via a Down Load Module (DLM)
available from GAC. Integrated "Start" and "Stop" buttons
provide manual control and shutdown supervision with
additional security. The monitoring and protection capability
of the IGC700 includes inputs for up to 10 sensors, all of
which are setup through the front panel keypad.
Pressure, Engine Coolant Temperature and Charge Level are
dedicated standard inputs, which can be configured for either
digital or analog inputs.
configured to accept signals (switch-type, analog, active high
or active low) through GAC's SmartView software. With
this greater flexibility, conditions like Low Air Pressure, Low
Oil Level, Low Coolant Level and Door Open can be
configured and monitored with the proper sensory devices.
All faults and failures are indicated by bright, multi-colored
LED's located on the front Annunciator Panel. The IGC700
Engine speed functions are easily set up through the keypad.
The use of an external potentiometer for trim or wide speed
range setting can also be configured with the keypad. The
general-purpose inputs can also be configured to switch
between fixed speed settings. The internal actuator driver
circuit can deliver enough power to drive most proportional
actuators with a current rating of up to 10 Amps. If levels are
expected to exceed 10 amps or you are unsure of the actuator
compatibility, contact GAC application engineering or a
qualified GAC representative.
IGC700 Series
Integral Governor Control
This integrated speed
The additional inputs can be
Governors America Corp. 720 Silver St. Agawam, MA 01001
Tel: 413-786-5600 Fax: 413-786-5666
http://www.governors-america.com
E-mail: info@governors-america.com
 Three Contacts for Starter Motor, Fuel Valve or Solenoid
Output and Alarm or PreHeat Output.
 Small size for In-panel Mounting (96mm * 96mm).
Oil
is designed to take the appropriate action, which is to warn
the operator of the faulty/failed condition and to shutdown
the system if the condition is potentially damaging and/or
dangerous. These actions are taken based on parameters set
at the time of installation. The IGC700 Series has three
normally open 20 Amp relays with outputs that are common
to battery voltage.
Termination, Fuel Solenoid (shut down signal) and Glow
Plug Preheating.
DESCRIPTION
The IGC700 provides a simple 2-button control for operation
under normal conditions. Depressing the STOP button will
shut down the engine immediately by cutting the engine's
fuel supply and turning the actuator power off (if it is in use).
Depressing the START button will begin the crank cycle.
Once the engine is started, the control will govern the engine
and provide protection according to the parameters that were
set during installation.
These are provided for Crank

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGC700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GAC IGC700 Series

  • Page 1 These actions are taken based on parameters set this greater flexibility, conditions like Low Air Pressure, Low at the time of installation. The IGC700 Series has three Oil Level, Low Coolant Level and Door Open can be normally open 20 Amp relays with outputs that are common configured and monitored with the proper sensory devices.
  • Page 2 Diagram 1...
  • Page 3: Installation

    INSTALLATION Actuator Connect the actuator wires to Terminals D & E. The IGC700 can deliver up to 10 Amps for actuator operation. Check the The electrical connections for the IGC700 are illustrated in actuator literature for more information. Diagram 1 on the previous page. For specific speed configuration using Terminals R and S, please see Table 1 Fuel Solenoid...
  • Page 4 • representation of the keypad and examples of how to read Terminal W can be configured as an independent, and understand the LED’s on the front panel. general-purpose input or it can be configured as a Battle The next few pages provide a detailed description of the Short.
  • Page 5 RUN/SETUP button until the RUN/SETUP LED stops flashing and stays ON. GAC recommends that the user take time to fully understand the following items before attempting to start the engine or going any further: Understanding the Keypad, Menus and Parameters (Pages 4, 5 &...
  • Page 6 Bar Graph Display & Flash Codes Bar Graph Display The Bar Graph displays the “approximate” percentage from 0 to 100%. Pressing the +/- arrow buttons, increases or decreases the value. You may have to press the +/- button several times to illuminate the next LED.
  • Page 7 Front Panel –MENUS, PARAMETERS & LED’S In Short: Press and hold SETUP until RUN/SETUP LED flashes. Press MENU to access the Menu 1, 2, 3, 4, 5 or 6 (LED 0, 1, 2, 3, 4 or 5). Press NUMERIC button for parameter you want access to. Use the + or –...
  • Page 8 OVERSPEED parameter every time you change the Accessing Parameters Flywheel Teeth parameter. When entering large numbers into parameter settings, it is much easier to enter the number as a 4-digit number. For Using the numeric keypad, enter the 4-digit RPM value of example, to enter 125 teeth into the Flywheel Teeth the desired OVERSPEED setting.
  • Page 9: Upper Limit

    The current maximum RPM setting for this parameter Saving IGC700 Settings will be flashed by the LED’s. Use the +/- buttons or 4-digit keypad numerical entry Press and Hold the RUN button until the RUN/SETUP LED method to set a new RPM value for the VARIABLE stops flashing.
  • Page 10 Use the +/- buttons to adjust the Bar Graph indicating Use the +/- buttons to select desired Droop amount in what percentage of fuel the cranking cycle will begin percent. with. Saving IGC700 Settings Speed Ramping Control Press and Hold the RUN button until the RUN/SETUP LED Speed Ramping Control...
  • Page 11 TIP: The longer you hold the + or - button down, the faster the value will change. Gain Press and release the MENU button until Menu 0 is active, then press the 1 button. The LED labeled GAIN will illuminate and the Bar Graph will display the current setting of Gain.
  • Page 12: Specifications

    SPECIFICATIONS PERFORMANCE Isochronous Operation & Steady State Stability………………………………………±0.25% or better Speed Range/Governor……………………………………………………………………400 – 10KHz Speed Drift with Temperature………………………………………………………< ± 1% Maximum Idle Adjust………………………………………………………………………Full Range of set speed Droop Range………………………………………………………………………1 – 17% Regulation Speed Trim Range………………………………………………………………±5% of Running Speed ENVIROMENTAL Ambient Operating Temperature Range……………………………………………………-40 to 85 …………………………………………………(-40°...
  • Page 13: Troubleshooting

    TROUBLESHOOTING Troubleshooting Guide 1 Engine Will Not Start Checklist - After You Stop Cranking Indicates the Overspeed limit was exceeded during starting. Recheck Flywheel Teeth, Overspeed, and Speed settings. Cycling the power on the IGC will Is RUN/SETUP remove the Overspeed Fault Condition. LED Blinking Restarting.
  • Page 14 Troubleshooting Guide 2 Engine Will Not Start Checklist - While Cranking the Engine Measure Voltage across Terminals A(+) & B(-) while engine is When Cranking Engine, Are any cranking. Verify sufficient voltage of approximately 8V. If not, then IGC LED’s on make sure the battery is charged.
  • Page 15 Security Code. If you forgot the code you Note: The maximum RPM speed is based on the number of must contact your GAC distributor from where the IGC700 teeth selected. Typically, the maximum RPM speed is 5000 was purchased.
  • Page 16 ENGINE RUN GAIN RUN / SETUP TEMP. °C STABILITY FAULT DERIVATIVE OIL PRESS. CHARGE FAIL ERROR 1 Diagram 2 – See Tables 2 & 3 ERROR 2 for Description of Front Panel Buttons and LED’s ERROR 3 ERROR 4 OVERNORS MERICA IP54 ORP.
  • Page 17 Table 4 – Accessing Menus Button # Menu 0 Menu 1 Menu 2 Menu 3 Menu 4 Menu 5 Gain Gain Speed Scale Not Used Not Used Not Used Secondary Stability Stability Speed Not Used Not Used Not Used Not Used Secondary Derivative Derivative...
  • Page 18 Preliminary PTI1061 Rev XA December 2003...
