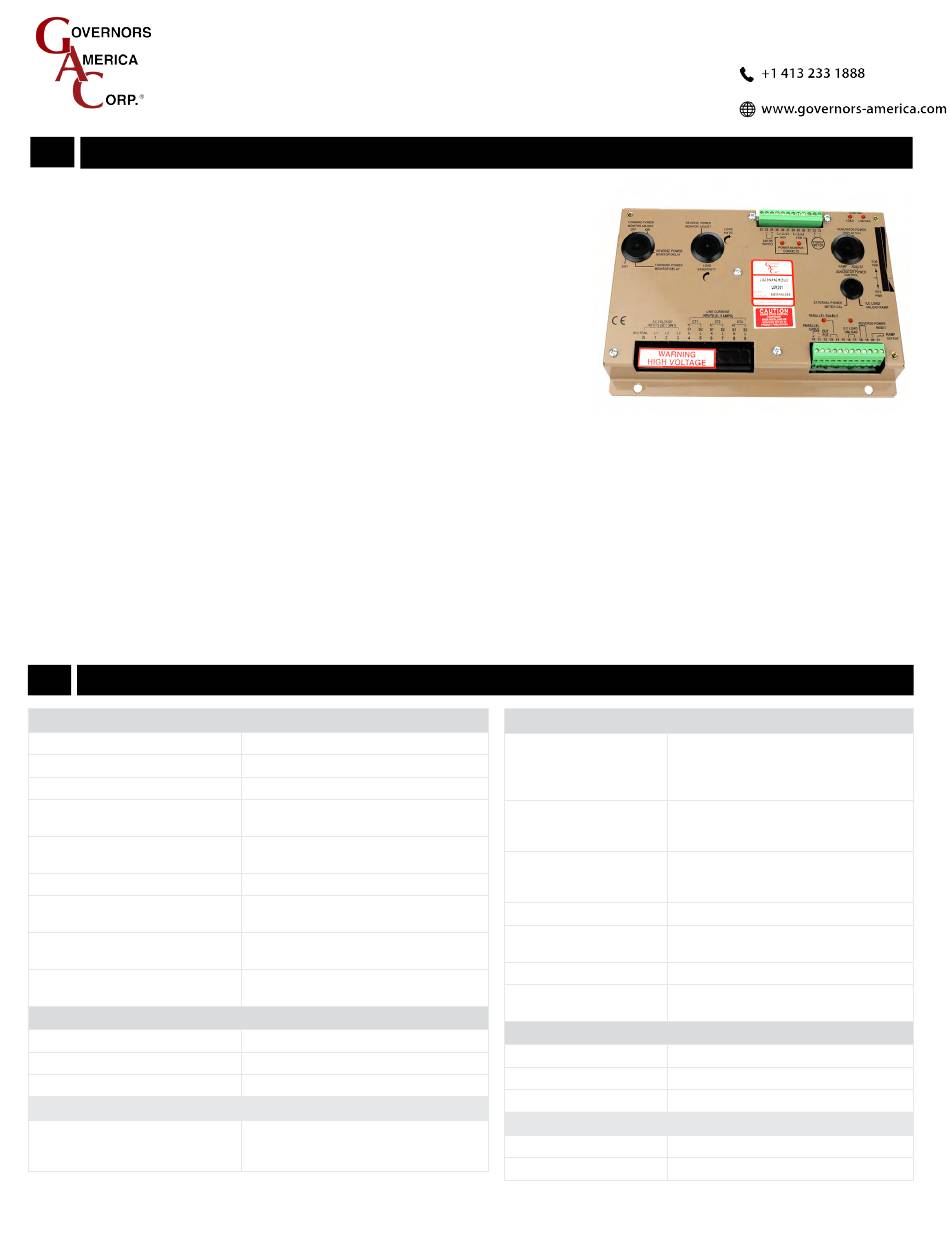

1
INTRODUCTION

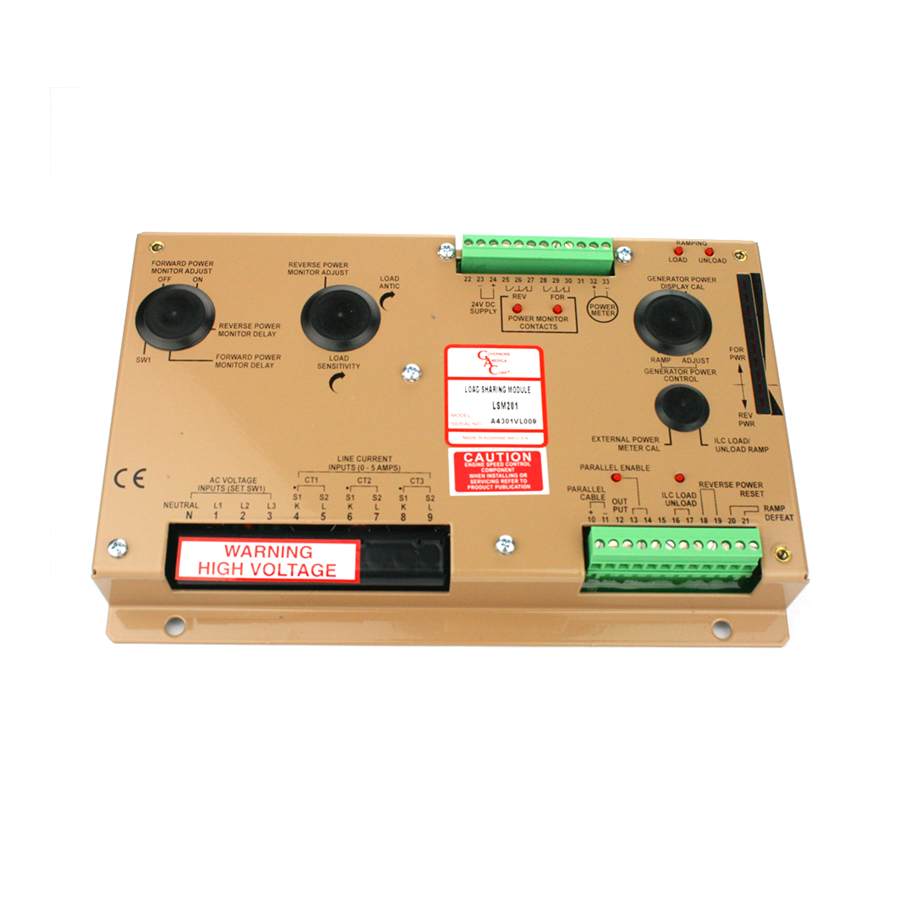

The LSM200 Series controllers provide Isochronous load sharing. These multifunction
load sharing and power control modules support GAC speed control units on generator
set applications requiring isochronous paralleling and for mains power control.
Engine generator sets with isochronous speed control units maintain the requested
speed very precisely. If synchronous generators are electrically paralleled to increase
the total generated power capability, a system to apportion the load is required.
Even the finest electric governors have minor frequency differences among units to be
paralleled, which would cause power variations. In this case, one generator set would
continuously increase the power it produces, while the other sets would decrease the
power they produce.
This condition eventually leads to motorizing one or more generator/ engines. The load
sharing system continuously adjusts the governor speed settings so that no average power difference exists The generators are
locked together through electrical synchronizing torques acting as a tightly connected gear drive. The line current measurements
are usually taken from current transformers in the equipment such as those used for ammeter circuits.
The LSM201 is available in a CE and non-CE version. Each supports:
24 V DC
Isochronous Load Sharing
Load Anticipation and Droop
Forward and Reverse Power Monitoring and Reset Capability
Power Monitor Adjustment Control
Generator Power Ramping and Control
2
SPECIFICATIONS
PERFORMANCE
Load Sharing
Operating Modes
Reverse Power Monitor Trip Point
Reverse Power Delay
(Inverse Time Delay)
Forward Power Monitor Trip Point
Forward Power Delay
Power Output Signal
Forward and Reverse Power
Relay Contact Rating
Parallel Cable
Relay Contact Rating
ENviRONMENtAl
Operating Temperature
Humidity
All Surface Finishes
COMPliANCE / StANDARDS
Agency
LSM200 Series
Load Sharing Modules
Adjustable to within ± 2 % between sets
Isochronous and main power control
Adjustable from -2 to -20 %
Adjustable from 0.5 to 15 s
ON trip point adjustable from 20 - 100 %
OFF trip point adjustable from 0 - 80 %
Adjustable from 0.4 to 30 s
0 to -1 V DC reverse power
0 to +6 V DC forward power
Form C, 10 A 290 VA
Gold Clad, 1.25 A 60 VA MAX
-40 to 185 °F [-40 to +85 °C]
up to 95 %
Fungus proof and corrosion resistance
LSM201 - CE Approved
LSM201N - Non-CE approved
ROHs - Compliant
POWER iNPUt \ OUtPUt
3 phase
AC Voltage signals
3 phase AC Line Currents
DC Supply
Polarity
Power Consumption
Battery Supply
AC Phase Voltage Inputs
External Power Meter
(Voltage Output)
PHYSiCAl
Dimensions
Weight
Mounting
REliABilitY
Vibration
Testing
LSM200 Series Load Sharing Modules 6-2021-B1 PIB4100
1
Governors America Corp. © 2021 Copyright All Rights Reserved
Two selectable ranges accommodate
100 - 500 V AC line-to-line
Isolated from battery (-) by 5000 V DC
Isolated from case by 1000 V DC
0-5 Amps with 1.25 VA requirement
Isolated from case by 1000 V DC
Connected to Speed Control Module
24 -32 V DC (Transient and Reverse
voltage protected). Battery (-) on all sets
must be connected together in common
Negative ground case isolated.
10 ma MAX Current
See Section 4, Wiring and Dimensions
1.2 lbf [0.56 kgf]
Any Position
5 g, 20 - 500 Hz
100 % functional tested
160 ma
2.5 ma

Advertisement

loading
Need help?

Need help?

Do you have a question about the LSM200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GAC LSM200 Series

  • Page 1 INTRODUCTION The LSM200 Series controllers provide Isochronous load sharing. These multifunction load sharing and power control modules support GAC speed control units on generator set applications requiring isochronous paralleling and for mains power control. Engine generator sets with isochronous speed control units maintain the requested speed very precisely.
  • Page 2: Installation

    Mount the LSM200 Series Module in the generator set control cabinet with the other dedicated control equipment. Locate the load shar- ing, synchronizer, and speed control devices as close together as possible to minimize inter-connection cable lengths.
  • Page 3 Long wires with high resistance can add to the burden of the CT shielded wire is recommended for sensitive control terminals, see your specific controllers wiring diagram. lSM201 EXtRA FiltERiNG LSM200 Series Load Sharing Modules 6-2021-B1 PIB4100 Governors America Corp. © 2021 Copyright All Rights Reserved...
  • Page 4 WIRING lSM201N StANDARD FiltERiNG LSM200 Series Load Sharing Modules 6-2021-B1 PIB4100 Governors America Corp. © 2021 Copyright All Rights Reserved...
  • Page 5 All parallel cables must be permanently hard wired together (+ to + and - to -). When a generator is off-line, its parallel cable must be disconnected from the rest of the units. Each LSM200 Series unit has its own internal relay to enable this disconnect and reconnection.
  • Page 6 20%. Raising the voltage at Termi- nal 22 above the nominal 3 V will increase the set points to a level higher than the internal settings. Consult GAC for details.
  • Page 7 (iNDiviDUAl lOAD CONtROl) AND lOAD RAMPiNG Individual generator control is a main function of the LSM200 Series. Opening and closing a switch at Terminals 16 and 17 loads and unloads the generator. Two LEDs (LOAD and UNLOAD) indicate the status for the operator. The Typical operation is: •...
  • Page 8: Before Starting The Engine

    LETHAL HIGH VOLTAGE is present at Terminals 1, 2, & 3. do not disconnect the CT wiring (Terminals 4, 5, 6, 7, 8, 9) when the generator is operating. Once the LSM200 Series is connected into the system per the appropriate wiring diagram, the following adjustments can be made in the following order.
  • Page 9 POWER RAMP DEFEAt - OPtiONAl When in parallel with the mains under power control, if the mains fail the LSM200 Series load sharing module must revert to isochro- nous load sharing quickly. The connection across the parallel cable (Terminals 10 and 11) must be opened and the mains load sharing reduced to zero quickly (Terminals 15 to 16 connection).
  • Page 10: Troubleshooting

    (load on the generator set is highly reactive). Improper speed setting of the governor on one or more governors. Adjust the ILC ramp time to a longer time. LSM200 Series Load Sharing Modules 6-2021-B1 PIB4100 Governors America Corp. © 2021 Copyright All Rights Reserved...
  • Page 11 In severe high-energy interference locations such as when the governor system is directly in the field of a powerful transmitting source, the shielding may require to be a special EMI class shielding. For these conditions, contact GAC for specific recommenda- tions.
