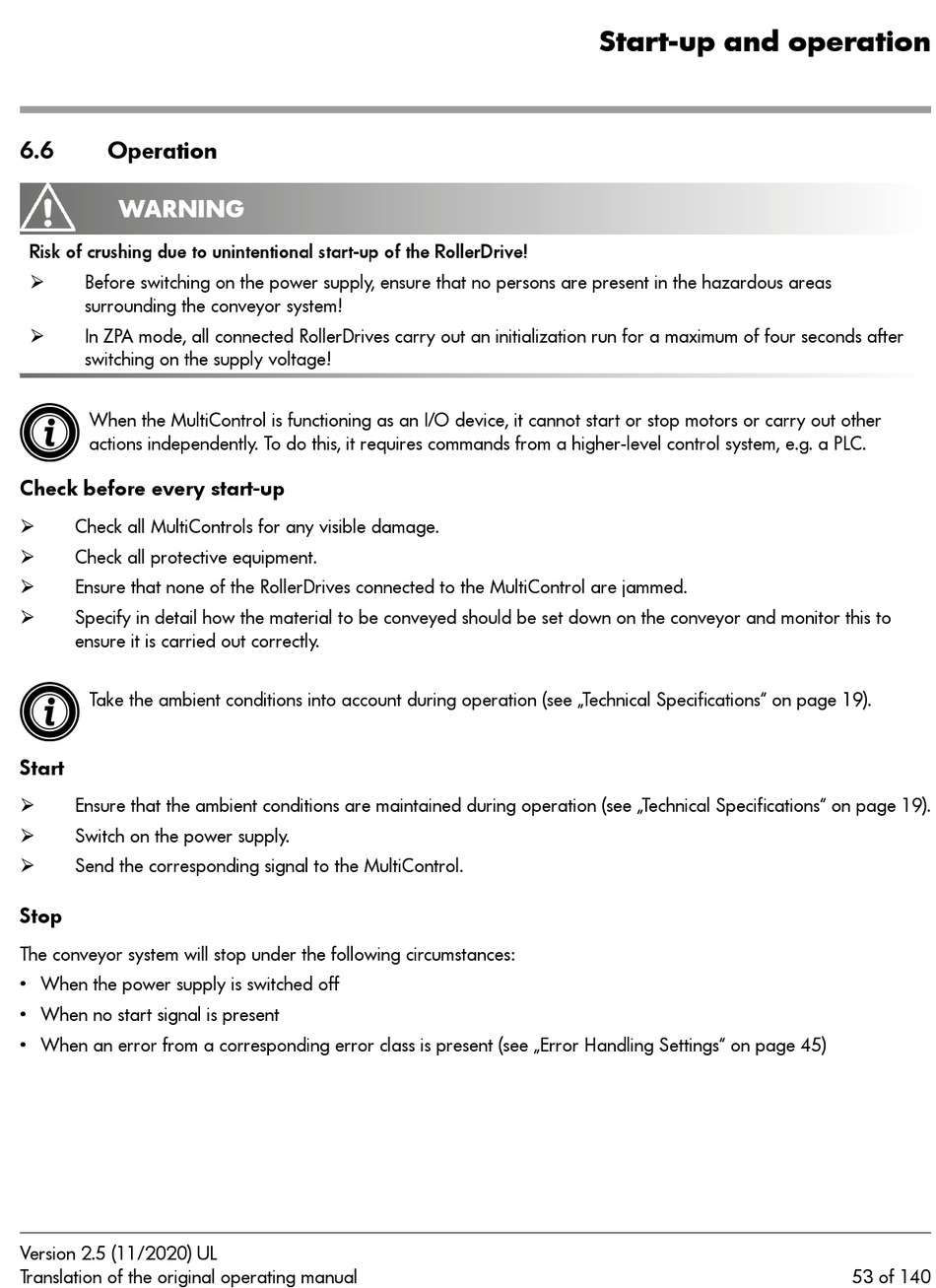

Operation; Check Before Every Start-Up; Start; Stop - Interroll MultiControl AI Operating Manual

6.6

Operation

WARNING
Risk of crushing due to unintentional start-up of the RollerDrive!
Before switching on the power supply, ensure that no persons are present in the hazardous areas
¾
surrounding the conveyor system!
In ZPA mode, all connected RollerDrives carry out an initialization run for a maximum of four seconds after
¾
switching on the supply voltage!
When the MultiControl is functioning as an I/O device, it cannot start or stop motors or carry out other
actions independently. To do this, it requires commands from a higher-level control system, e.g. a PLC.

Check before every start-up

Check all MultiControls for any visible damage.
¾
Check all protective equipment.
¾
Ensure that none of the RollerDrives connected to the MultiControl are jammed.
¾
Specify in detail how the material to be conveyed should be set down on the conveyor and monitor this to
¾
ensure it is carried out correctly.
Take the ambient conditions into account during operation (see „Technical Specifications" on page 19).

Start

Ensure that the ambient conditions are maintained during operation (see „Technical Specifications" on page 19).
¾
Switch on the power supply.
¾
Send the corresponding signal to the MultiControl.
¾

Stop

The conveyor system will stop under the following circumstances:
• When the power supply is switched off
• When no start signal is present
• When an error from a corresponding error class is present (see „Error Handling Settings" on page 45)
Version 2.5 (11/2020) UL
Translation of the original operating manual
Start-up and operation
53 of 140
