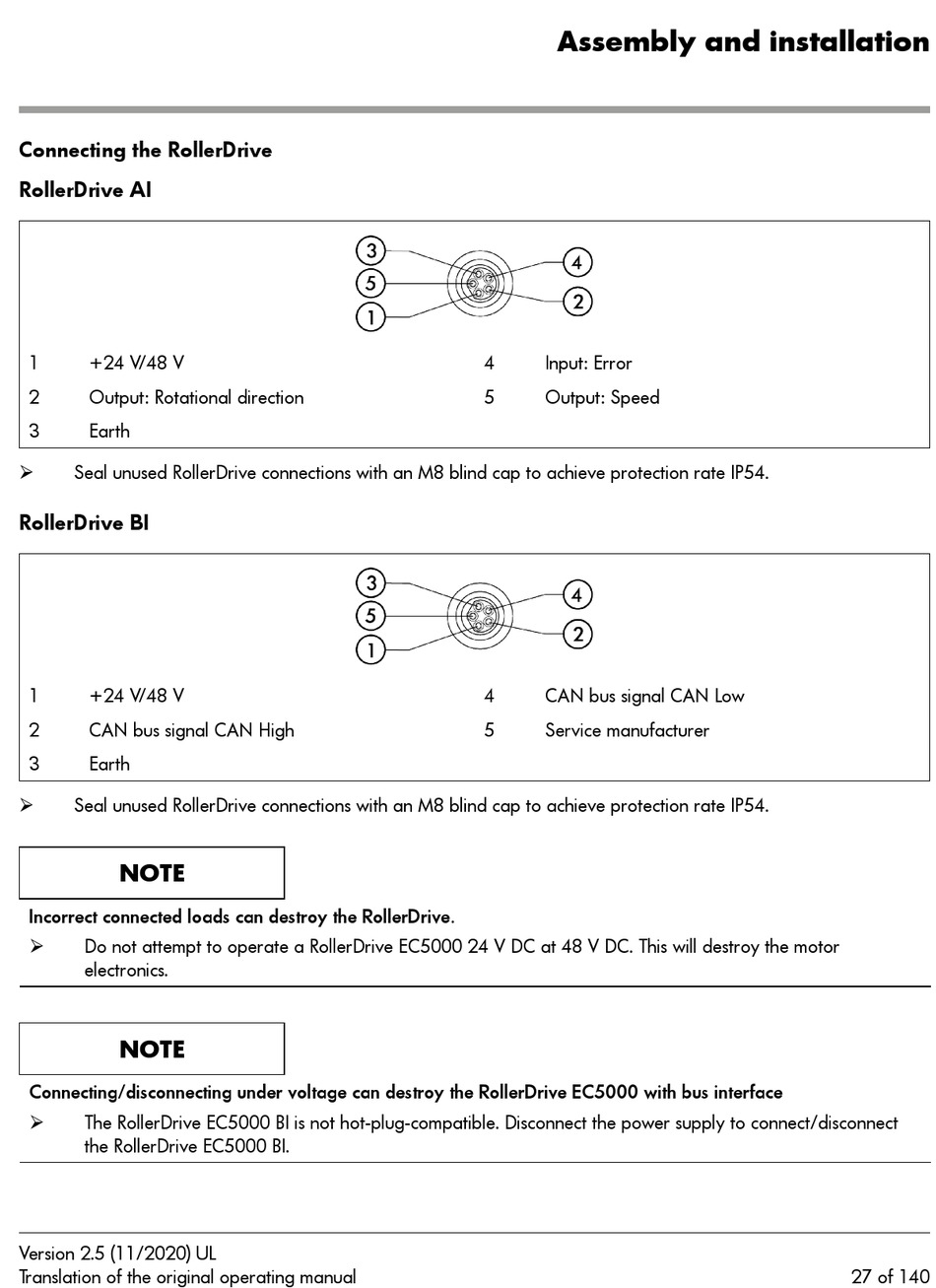

Connecting the RollerDrive

RollerDrive AI

1 +24 V/48 V
2 Output: Rotational direction
3 Earth
Seal unused RollerDrive connections with an M8 blind cap to achieve protection rate IP54.
¾

RollerDrive BI

1 +24 V/48 V
2 CAN bus signal CAN High
3 Earth
Seal unused RollerDrive connections with an M8 blind cap to achieve protection rate IP54.
¾
NOTE
Incorrect connected loads can destroy the RollerDrive.
Do not attempt to operate a RollerDrive EC5000 24 V DC at 48 V DC. This will destroy the motor
¾
electronics.
NOTE
Connecting/disconnecting under voltage can destroy the RollerDrive EC5000 with bus interface
The RollerDrive EC5000 BI is not hot-plug-compatible. Disconnect the power supply to connect/disconnect
¾
the RollerDrive EC5000 BI.
Version 2.5 (11/2020) UL
Translation of the original operating manual
Assembly and installation
4 Input: Error
5 Output: Speed
4 CAN bus signal CAN Low
5 Service manufacturer
