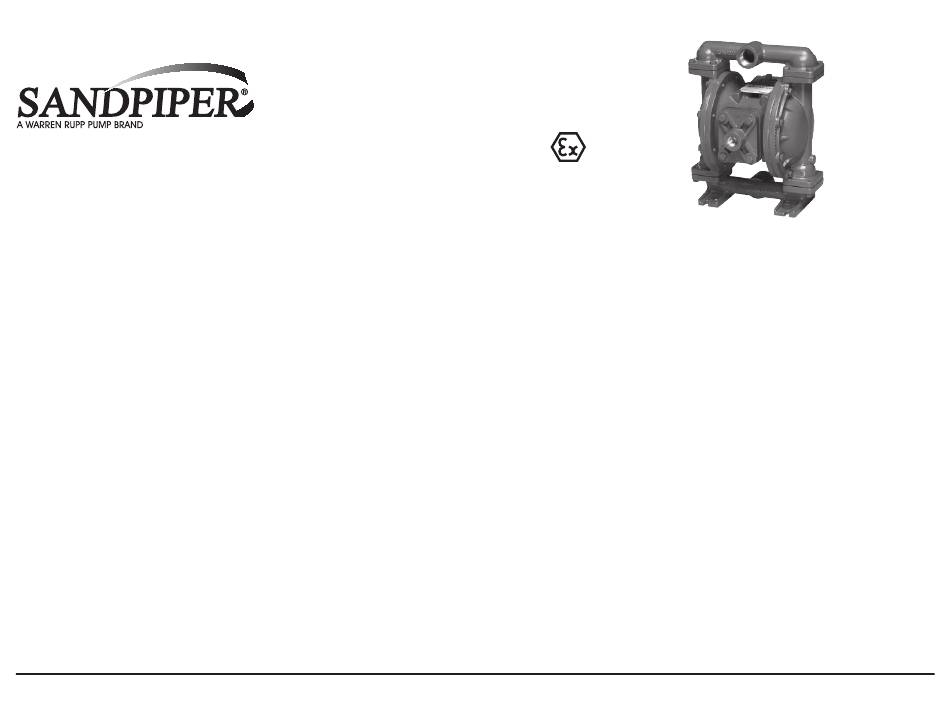

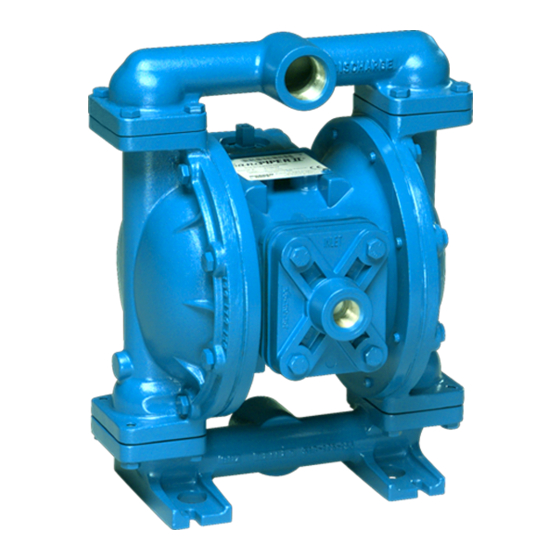

SERVICE & OPERATING MANUAL
Model S1F Metallic Design Level 1

Table of Contents

Engineering Data and Temperature Limitations ..................................................... 1
Explanation of Pump Nomenclature ...................................................................... 2
Performance Curve................................................................................................ 3
Dimensions ........................................................................................................... 4
Metic Dimensions ................................................................................................. 5
Principle of Pump Operation .................................................................................. 6
Installation and Start-Up ........................................................................................ 6
Air Supply .............................................................................................................. 6
Air Valve Lubrication .............................................................................................. 6
Air Line Moisture .................................................................................................... 6
Air Inlet and Priming .............................................................................................. 6
Between Uses ....................................................................................................... 6
Installation Guide ................................................................................................... 7
Troubleshooting ..................................................................................................... 8
Warranty ................................................................................................................ 8
Recycling ............................................................................................................... 9
Important Safety Information ................................................................................. 9
Material Codes .................................................................................................... 10
Composite Repair Parts Drawing ........................................................................ 12
Available Service and Conversion Kits ................................................................ 12
Composite Repair Parts List ............................................................................... 13
Air Valve Drawing, Parts List, Service Instructions .............................................. 15
WARREN RUPP, INC. • A Unit of IDEX Corporation • P.O. Box 1568, Mansfield, Ohio 44901-1568 USA • Telephone (419) 524-8388 • Fax (419) 522-7867 • www.warrenrupp.com
s1fmdl1sm-REV1207
I M2 c T5
II 2GD T5
CE
Solenoid Shifted Air Valve Drawing ..................................................................... 18
Solenoid Shifted Air Valve Parts List ................................................................... 18
Solenoid Shifted Air Valve Option ........................................................................ 19
Diaphragm Service Drawing, with Overlay .......................................................... 20
Diaphragm Service Drawing, Non-Overlay .......................................................... 20
Diaphragm Servicing ........................................................................................... 21
Overlay Diaphragm Servicing ............................................................................. 21
Pilot Valve Servicing, Assembly Drawing & Parts List ......................................... 22
Actuator Plunger Servicing .................................................................................. 23
Check Valve Servicing ......................................................................................... 24
Check Valve Drawing ........................................................................................... 24
Optional Muffler Configurations ........................................................................... 25
Optional Muffler Configuration Drawing ............................................................... 25
Pumping Hazardous Liquids ................................................................................ 26
Converting Pump for Piping Exhaust Air ............................................................. 26
Converted Exhaust Illustration ............................................................................. 26
Pulse Output Kit Drawing .................................................................................... 27
Pulse Output Kit Options ..................................................................................... 27
Grounding The Pump .......................................................................................... 28
CE Declaration of Conformity .............................................................................. 29
U.S. Patent #
5,996,627
Other U.S. Patents
Applied for
©Copyright 2007 Warren Rupp, Inc. All rights reserved.
