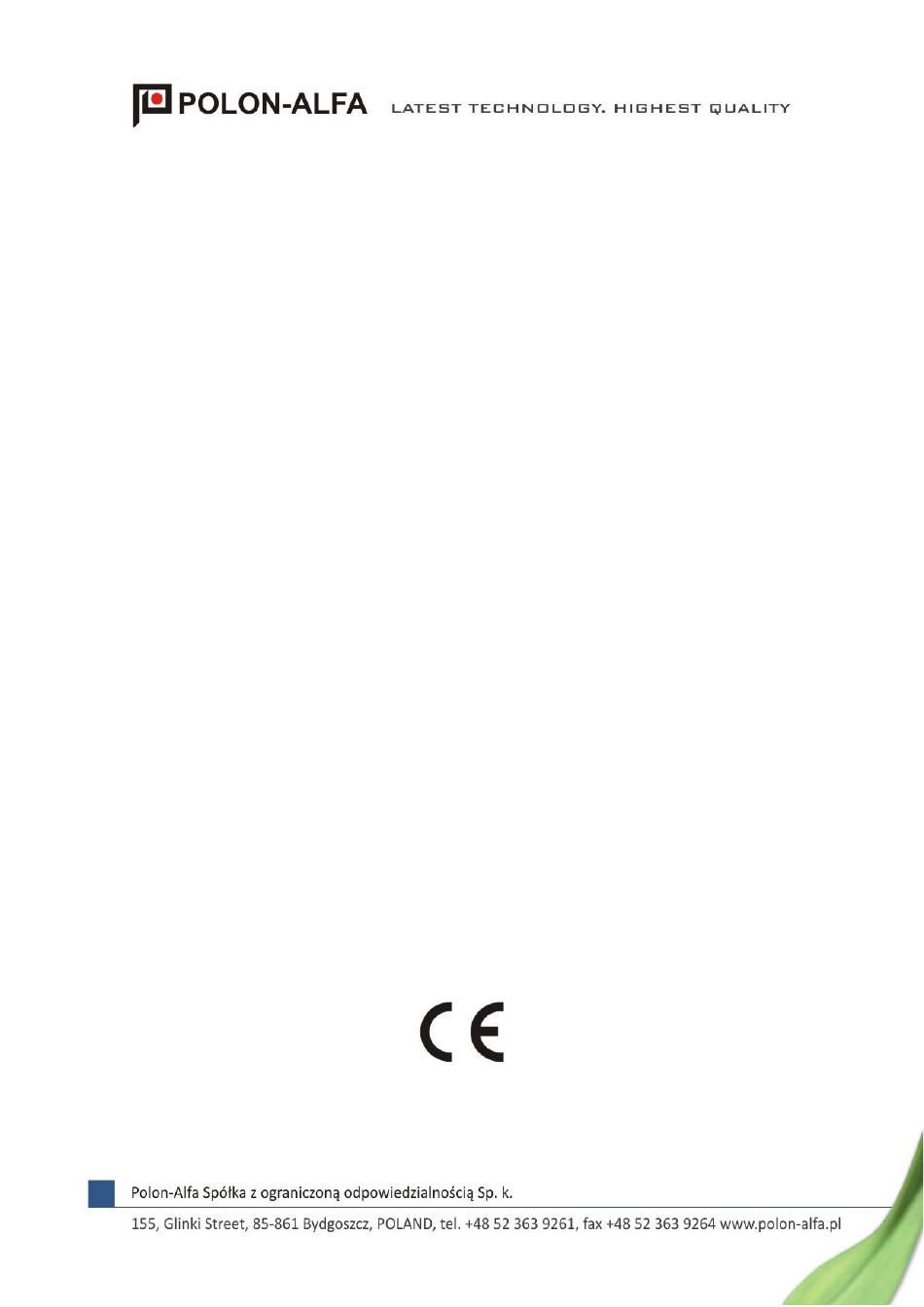

- Page 1 IGNIS 2000 CONVENTIONAL FIRE DETECTION AND ALARM SYSTEM IGNIS 2040 FIRE DETECTION AND ALARM CONTROL PANEL Operation and Maintenance Documentation ID-E339-001GB I Edition...
- Page 2 Any nonconformity with the instructions contained in the manual may be harmful or may cause violation of the law in force POLON-ALFA bears no responsibility for any damage resulting from usage inconsistent with the manual. A waste product, unsuitable for further use, shall be passed to a waste electric and electronic equipment collection point.
-
Page 3: Table Of Contents
ID-E339-001GB CONTENTS 1 INTRODUCTION ......................4 1.1 DOCUMENTATION CONTENTS ........................4 1.2 CONTROL PANEL APPLICATION ........................4 1.3 SAFETY CONDITIONS ............................ 4 1.3.1 Electric shock protection ........................4 1.3.2 Installation and equipment safety ....................... 4 1.3.3 Repairs and maintenance ........................4 1.3.4 Fuse replacement .......................... -
Page 4: Introduction
Maintenance works and periodic inspections should be executed by skilled personnel employed by companies authorised or trained by Polon-Alfa. Any repairs must be carried out by the manufacturer. Polon-Alfa bears no responsibility for the operation of any apparatus being serviced or repaired by... -
Page 5: Fuse Replacement
ID-E339-001GB 1.3.4 Fuse replacement In the event of fuse replacement, an equivalent fuse replacement should be used: of the appropriate type and nominal value. The appropriate types and nominal values are contained in table 2.3. 1.4 DEFINITIONS Conventional detection line A two-core line with non-addressable detectors installed in, terminated with an end-of-line resistor. -
Page 6: Technical Specifications
ID-E339-001GB Table 2.2 Item Description Remarks 12 V/3.2 Ah ÷7 Ah battery two pcs required for control panel Fire detectors according to Appendix A Detector bases acc. to particular detector manual Manual call points according to Appendix A WZ-31 additional indicator Signalling devices according to offer Table 2.3... -
Page 7: Design Descriptions
LCD to display user messages event memory date and time display USB connector to interoperate with PC computer interoperation with Polon-Alfa 30 and 40 model range conventional detectors up to 6 detection lines up to 2 alarm lines 8 relay outputs... -
Page 8: Overall Diagram
ID-E339-001GB 4.2 OVERALL DIAGRAM Fig. 1 Overall diagram 4.3 CONTROL PANEL GENERAL DESCRIPTION The control panel is intended for wall mounting. The front side is made in the form of a metal cover plate with a rectangular window in which all handling and signalling elements are located as well as a liquid crystal display. -
Page 9: Control Panel General Operation Principle
ID-E339-001GB following elements are located inside the cabinet on the printed board edge: wire connectors, restart push button, battery connection push button, configuration jumpers and USB port of the event recorder. The control panel general view and dimensions are shown in Fig. 4. 4.4 CONTROL PANEL GENERAL OPERATION PRINCIPLE The IGNIS 2040 is a conventional (non-addressable) control panel that interoperates with fire detectors installed in two-core detection lines terminated with end-of-line resistors. -
Page 10: Handling And Signalling Elements
Fig.2 Control panel subassemblies arrangement 4.6 HANDLING AND SIGNALLING ELEMENTS The push buttons, indicators (LCD diodes) placed on the control panel front plate are executed in the form of a flexible foil keypad as shown in Fig. 3. The push buttons and indicators functions are described in Table 4.1. - Page 11 IK-E339-001E Fig. 3 Handling and signalling elements Table 4.1 Description Element Function General fire alarm signalling with distinction: diode stage fire alarm by flashing light, • stage fire alarm by steady light • Yellow Control panel fault mode signalling diode Push Number and description of current faults display on LCD button...
- Page 12 IK-E283-001E button /delay re-enablement (switch on)– return to settled T1, T2 times Yellow Indication of disablement of alarm signalling devices diode installed in L5 or L6 lines: by flashing light – disablement of one line (L5 or • L6),if both were configured as alarm lines by steady light –...
-
Page 13: Control Panel Functions And Access Levels
IK-E339-001E 4.7 CONTROL PANEL FUNCTIONS AND ACCESS LEVELS Four access levels to handling elements are provided in the control panel: access level intended for the persons who take first measures after a fire or fault signal occurrence. At this access level, the ACKNOWLEDGEMENT (17), FAULT (2) and DELAY RESET (5) push buttons are active, as well as an access code entering function. -
Page 14: Lcd Indications, Functions Application
IK-E283-001E F.10 DIAGNOSTICS FUNCTIONS F.11 ACCESS CODE CHANGE F.12 DATE AND TIME SETTING 4.8 LCD INDICATIONS, FUNCTIONS APPLICATION The IGNIS 2040 control panel is equipped with an alphanumeric 2 x 20 characters liquid crystal display (LCD) that enables configuration parameters setting and readout of information on the control panel status. - Page 15 IK-E339-001E of 0 with push buttons EVENTS REAOUT Readout of events recorded in control panel memory F.04 Enter Function recall – push button short pressing Exit – push button longer than 1 s pressing 184. L1 alarm reset – Event No. (e.g. 184); event name 2011-01-05 15:20:44 –...
-
Page 16: Event Memory
4.9 EVENT MEMORY The software necessary for the event memory readout and information materials are available in Internet on the www.polon-alfa.pl web site after obtaining an access code. Hardware requirements concerning PC computer: o accessible USB port; o hard disc of ca. 25 MB free memory;... -
Page 17: Control Panel Operation Modes
IK-E339-001E Before starting the program, the computer should be connected to the control panel with a typical USB cable ended with an A type USB plug (the computer’s end) and a B type plug (the control panel’s end). After detection of a new device connected to the USB port and the Ignis2win.exe program launching, the control panel and computer are ready for the event memory contents transmission. -
Page 18: Automatic Alarm Signal Verification
IK-E283-001E 5.2.3 Automatic alarm signal verification The control panel possesses algorithms that enable verification of fire alarm signal coming from fire warning devices. Recognition of the received signal as a fire alarm is preceded by multiple checking readout of the line status. Moreover, it is a possible to program the following alarm variants for every detection line: One-stage alarm –... -
Page 19: Disablement Mode
IK-E339-001E the control panel is damaged. It is necessary to switch the control panel power supply off and call the service personnel. In the fault mode, the PK8 general fault relay is released. 5.4 DISABLEMENT MODE The disablement mode is signalled by the control panel by the yellow DISABLEMENT (3) diode. Any disablement and re-enablement (and the disabled outputs readout) is possible after entering at least access level code and with the DISABLEMENT (3) quick access push button or using the F.03 DISABLEMENT function. -
Page 20: Automatic Power Supply Switch-Off
IK-E283-001E 5 Ah 76 hours 7 Ah 108 hours (25% ageing decrease in the batteries capacity has been considered) During the control panel configuration, when some current consumption by auxiliary external devices is considered (especially during the quiescent mode), it is important to take into consideration that the reserve battery powered device operation time will be accordingly shorter. -
Page 21: Control Panel Special Applications
Such circuits provide the [Ex I IIC] safety category. Intrinsically safe detection lines in the IGNIS 2000 system can be created in conventional lines with an application of intrinsically safe separators. Detailed information concerning the device installation in... -
Page 22: Input And Output Circuit Connecting Terminals
IK-E283-001E 9 INPUT AND OUTPUT CIRCUIT CONNECTING TERMINALS The control panel is equipped with a set of connecting terminals designed for connection of alarm installation wires, external devices and mains power supply. The terminals enable connection of wires of a maximum diameter at 1.2 mm and a cross section at 1.5 mm . -
Page 23: Maintenance
IK-E339-001E PK8 – general fault relay. During the control panel normal operation the relay is switched on. It switches over at the moment when a fault or voltage decrease occurs. A typical application of the relay is the fault signal transmission to the monitoring centre. External device power supply output: Two pairs of terminals supplying 24 V DC voltage are located on the terminal board and they are designed for power supply of the external devices that are activated e.g. -
Page 24: Fuse Replacement
IK-E283-001E consecutive testing of every fire detector (e.g. using smoke and heat imitators) and manual call points installed in every detection line , utilising a possibility to switch any line for testing; visual evaluation of the fire detectors technical condition (level of dirt, corrosion, permanent soil) and of manual call points, especially in case of their longer operation, that should be carried out during a device testing;... -
Page 25: Control Panel Commissioning Instructions And Proper Operation Checking After Installation
IK-E339-001E 12 CONTROL PANEL COMMISSIONING INSTRUCTIONS AND PROPER OPERATION CHECKING AFTER INSTALLATION The operations to be done before the control panel commissioning: • detection, alarm, power supply lines preparation in accordance with the design; • installation of devices in the detection and alarm lines; •... - Page 26 IK-E283-001E Fig. 5 G-40 base connection way into detection line Note: The detailed information concerning the G-40 base is provided in the IK-E287-001E manual.
- Page 27 IK-E339-001E APPENDIX A IGNIS 1000 SYSTEM LINE ELEMENTS Element description Quiescent current 40 model range conventional detectors DOR-40 Optical smoke detector 60 µA DUR-40 Universal optical smoke detector 60 µA TUP-40 Heat detector 40 µA DOT-40 Multi-sensor smoke and heat detector 150 µA DOP-40 Beam smoke detector...
