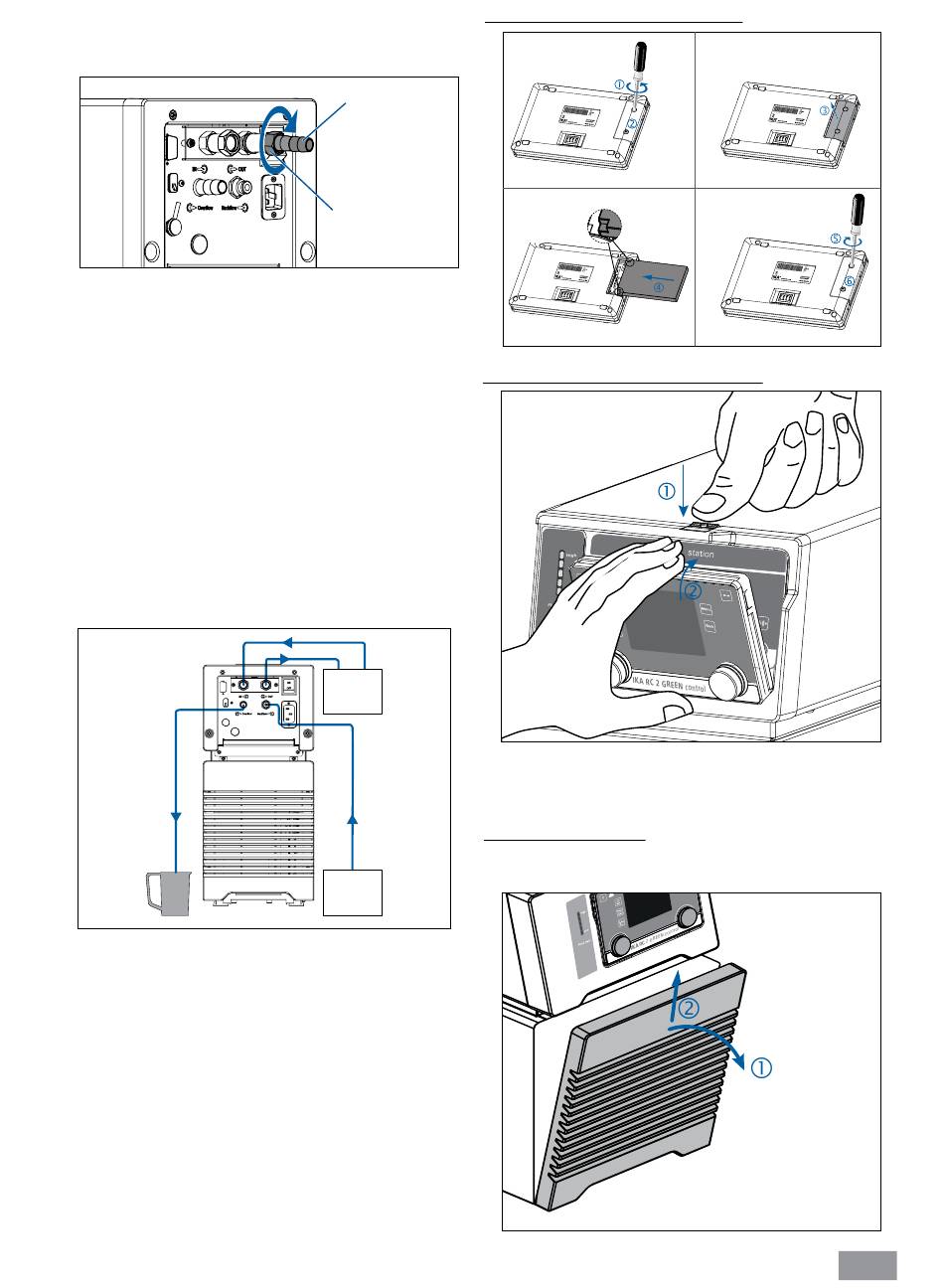

- Screw the hose olives to the pump connector IN and
OUT with union nuts� Slide the hoses (NW 12) onto the
olives� The hoses must be secured with suitable clamps�
- Via a hose to the "Overflow" connection (13), over-
flowing fluid can be directed into a suitable vessel� The
vessel should be positioned lower than the "Overflow"
connection
In case of closed external system, if there is in any case
no risk of exceeding the maximum fluid level, you can
close the "Overflow" connection with the included
overflow cap� This minimizes the energy loss and pro-
tects, in case of long-term applications with low tem-
peratures and high humidity, against unwanted water
input and the associated volume increase�
Check fluid heat expansion!
- Connect the "Backflow" connection (12) to IKA calo-
rimeter with a suitable hose�
When IKA calorimeter is not connected, please close the
"Backflow" connection with included backflow cap�
Fig. 6
Note: When the external system is not necessary, please
seal the pump connection IN and OUT with the existing
union nuts and stoppers�

Inserting battery into the WiCo:

Olives
Union nut
Fig. 5

Mounting the WiCo to the station:

External
system
Note: If the WiCo need be permanently attached to the sta-
tion, we strictly recommend to fasten the unlocking button
with the integrated screw (turn counter clock wise)�

Filling and draining:

- Before filling the fluid into the bath, open the venting
grid as indicated in following figure�
IKA
Calorimeter
Note: notch upward!
Fig. 7
Fig. 8
Fig. 9
