Device Setup - IKA RC 2 GREEN control Operating Instructions Manual

1
2
3
4
3

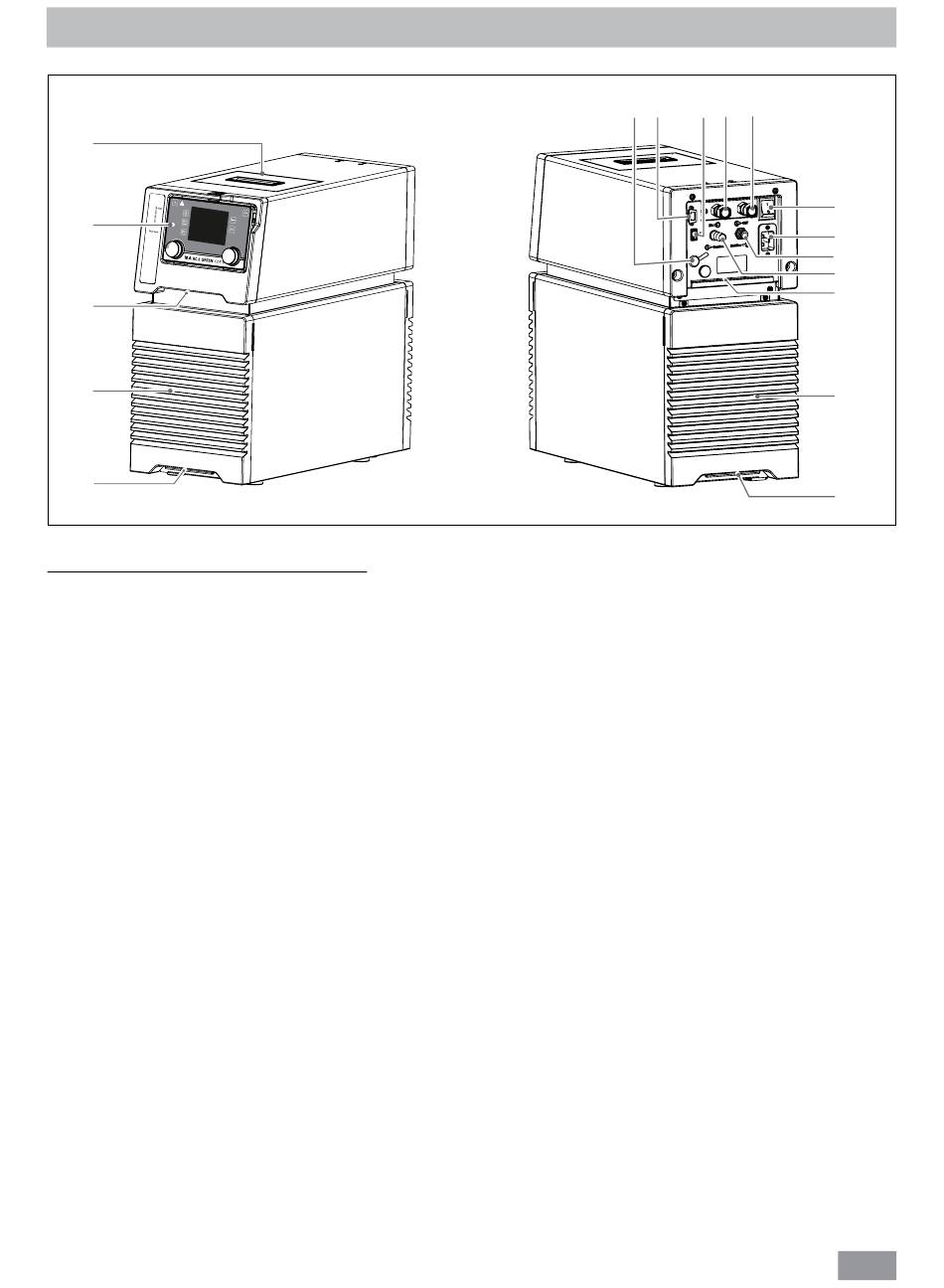

Fig. 1
Item Designation
1 Filling opening lid
2 Wireless Controller (WiCo)
3 Handle
4 Venting grid
5 RS 232 port
6 USB port
7 External temperature sensor socket
8 Pump connector IN
9 Pump connector OUT
10 Power switch
11 Power socket
12 Backflow
13 Overflow

Device setup

7 5 6 8 9
10
11
12
13
3
4
3
2
